Technogym ELLIPTICAL - Page 88

49
49a

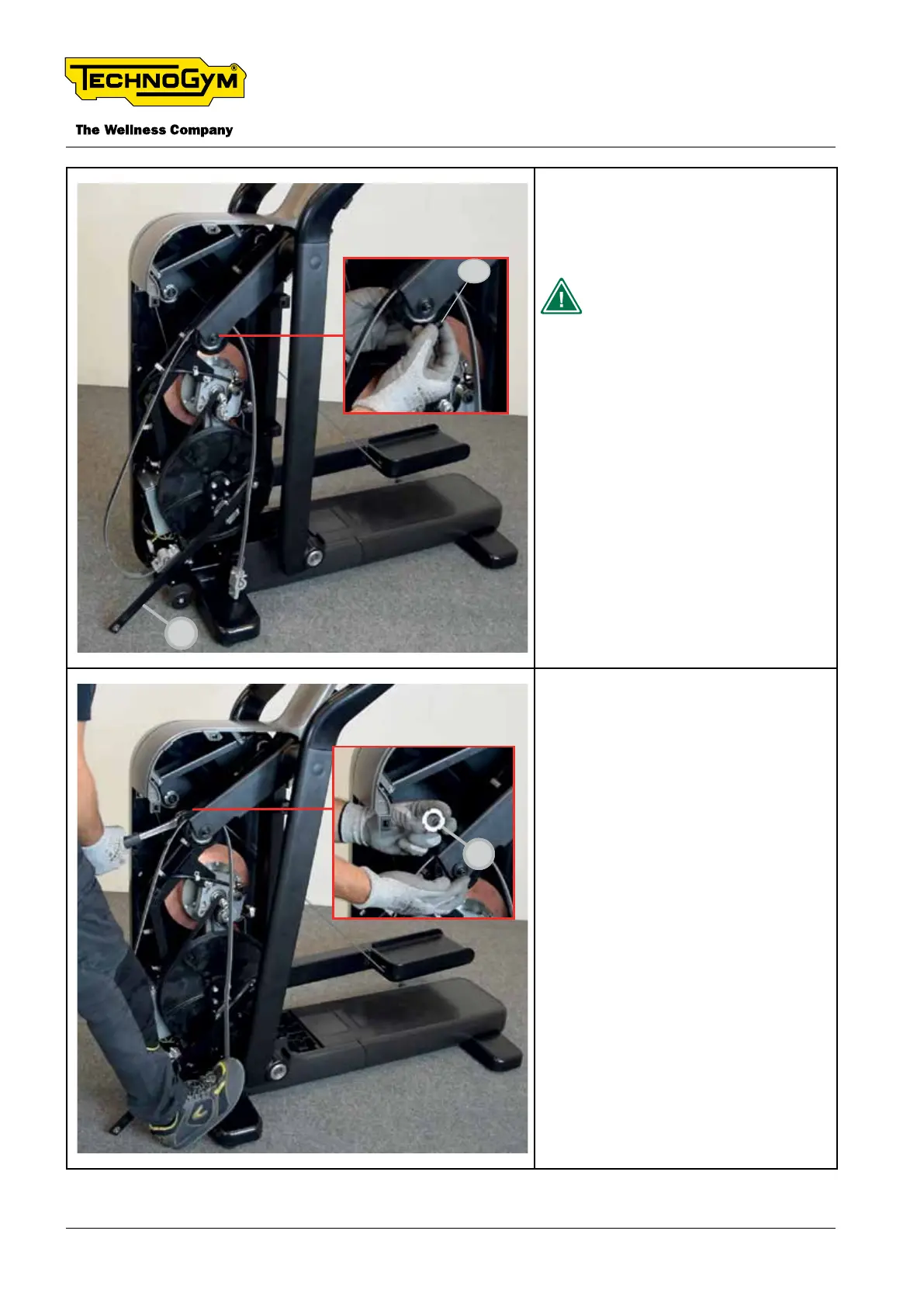

Remove the rod [49] as shown in the
gure.
Remove the washer [49a].
  -
     -

50
Remove the ring nut [50]. (TOOL:
socket for ring nut).
Then remove the pin.
TECHNOGYM ELLIPTICAL Technical Service Guide
Rev. 1.1
- 88 -
