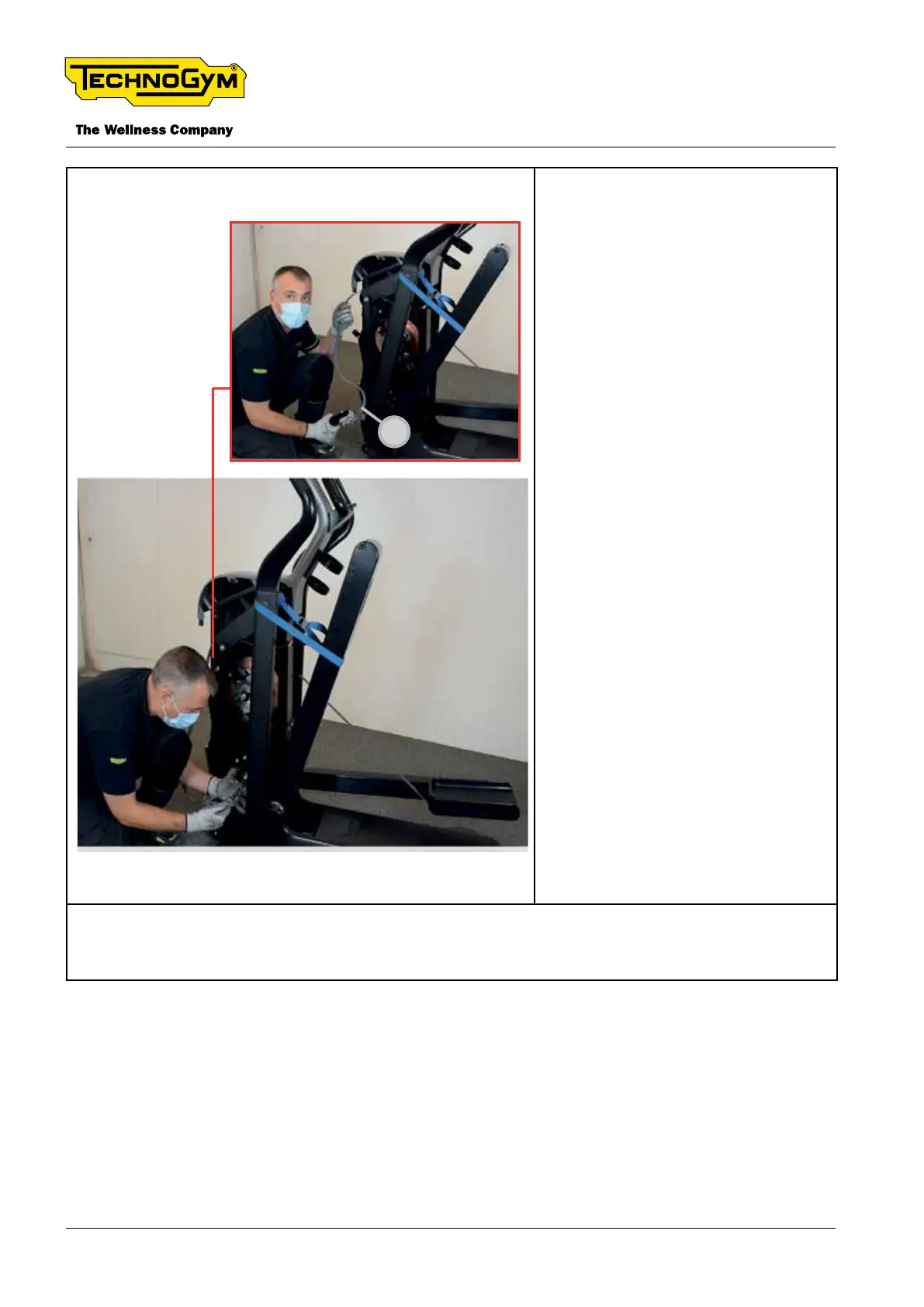

Raise up the lever of the pedal and
secure it to the equipment with a
strap.
Then remove the crank assembly
[62]. (TOOL: Two-leg universal pull-
ers)
Unhook the fastening elements (TOOL: Card like credit card to remove casings). Then remove
the right casing [25] from the three teeth and then move it [25] towards the front until it is removed.
