60
61

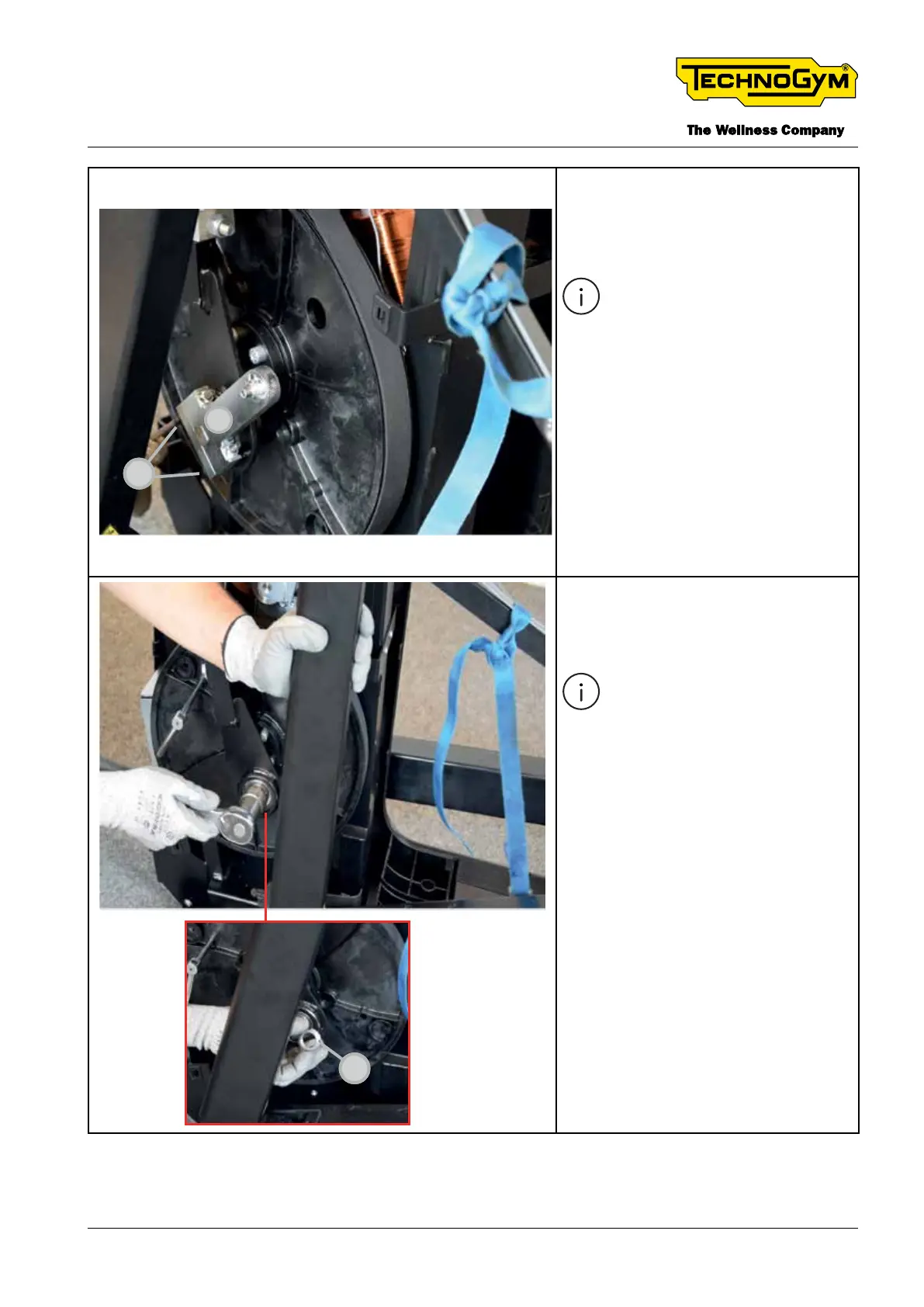

Loosen the two screws [60]. (TOOL:
5 mm hexagon key wrench)
Then remove the crank [61].
During reassembly, tighten the
screws [60] with a torque
wrench set to 16 Nm [11.8 lbf-
ft] ).
61
Lock the black pulley with a screw-
driver and remove the ring nut [61].
(TOOL: socket for ring nut).
During reassembly, apply Loc-
tite 243 and tighten the ring
nut [61] with a torque wrench
set to 60 Nm [44.3 lbf-ft] ).
