Tektronix DPO4000 Series User Manual

Get Acquainted with the Instrument

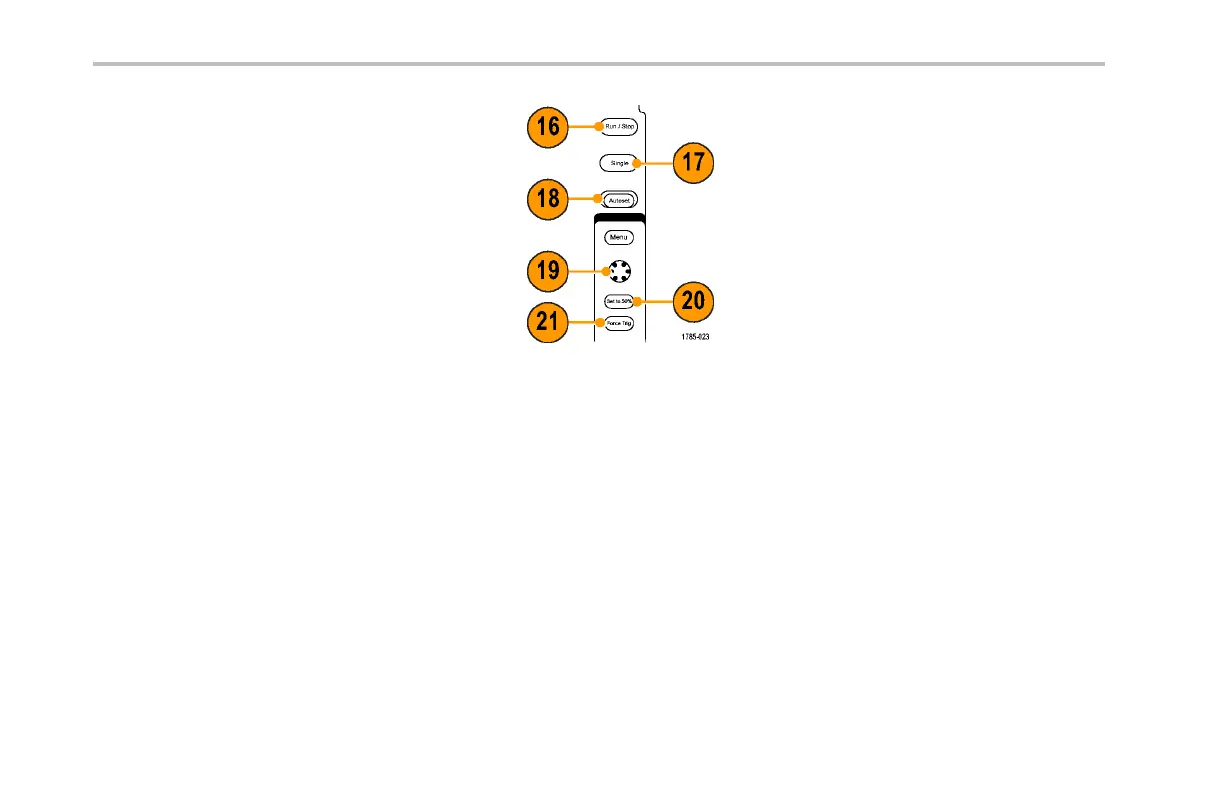

16. Ru n/S top. Pushtostartorstop
acquisitions.
17. Single. Push to make a single acquisition.
18. Au toset. Push to automatically set t he
vertical, horizontal, and trigger controls for
a usable, stable display.
19. Trigger Level. Turn to adjust the trigger
level.
20. Set to 50%. Push to set the trigger level to
the midpoint of the waveform.
21. Force Trig. Push to force an immediate
trigger even t.
56 DPO4000 Series User Manual
