Get Acquainted with the Instrument

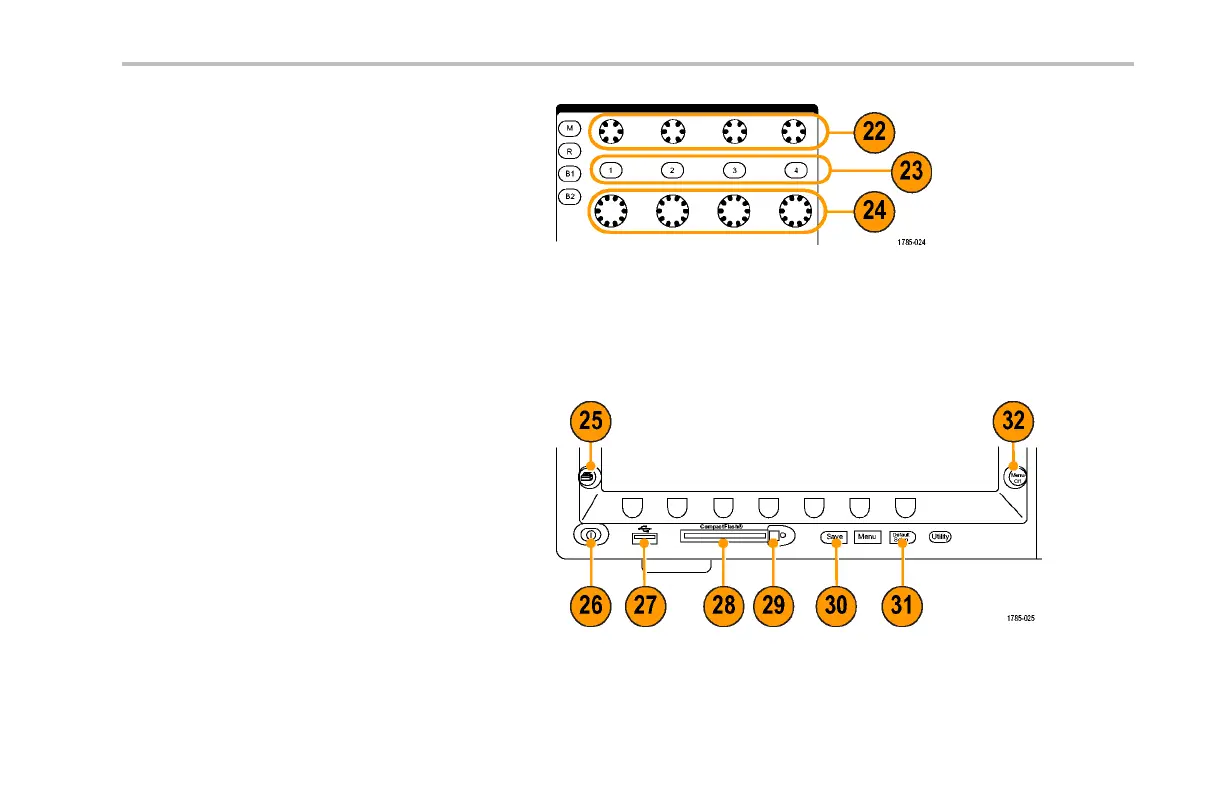

22. Vertical Position. Turn to adjust the
vertical position of the corresponding
waveform. Push Fine to make smaller
adjustments.
23. 1,2,3,4. Push to display or remove the
corresponding waveform from the display
and access the vertical menu.
24. Vertical Scale. Turn to adjust the vertical
scale factor of the corresp onding waveform
(volts/division).
25. Print. Push to initiate a hard copy using the
printer selected in the Utility menu .
26. Power switch. Push to power on or off the
instrument.
DPO4000 Series User Manual 57
