Spectrum trace handle
The spectrum trace handle provides details on the trace reference level, the source channel for the trace, and which trace types are
displayed.

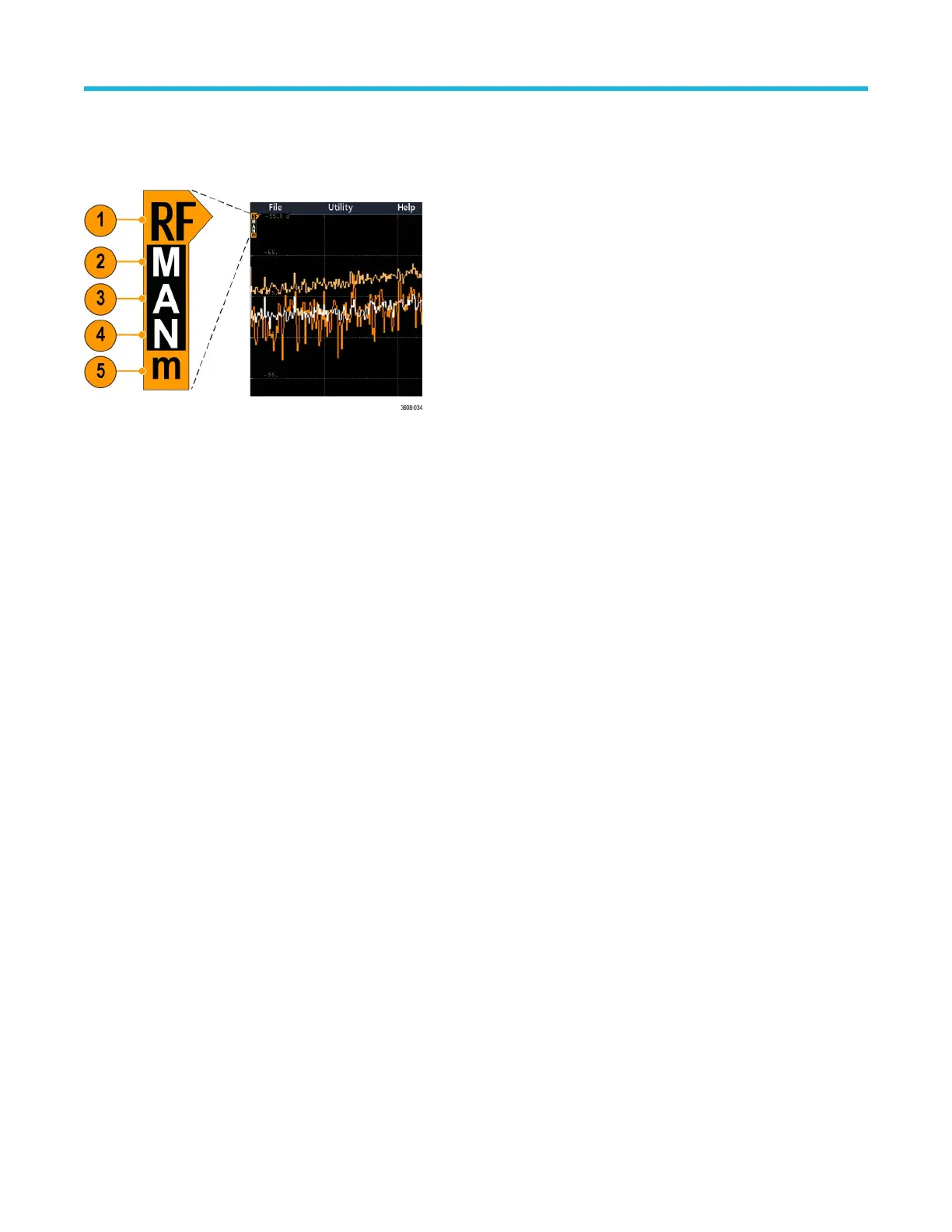

Figure 5: Spectrum trace MANm handle info
1. The RF trace indicator is placed at the Reference Level. The waveform view shows the spectrum traces relative to a Reference Level
reference point. If the Reference level is above the top of the graticule, the handle is drawn at the top of the graticule and pointing up.
2. A capital M indicates that the maximum trace is enabled.
3. A capital A indicates that the average trace is enabled.
4. A capital N indicates that the normal trace is enabled.
5. The small m indicates that the minimum trace is enabled.
Highlighting around a letter indicates that trace type is selected. In the figure, the small m is highlighted, indicating that the minimum trace
is currently selected.
There is an important distinction between enabled and selected traces:
•
An enabled trace letter (displayed in the trace handle) means that trace type is being displayed.
• A selected trace (highlighted around the letter) is the trace that is used for measurements, marker readouts, and cursor readouts.
Waveform acquisition concepts
3 Series Mixed Domain Oscilloscope Printable Help 240

Tektronix MDO34 Specifications

General

Analog Channels	4
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Mixed Domain Analysis	Yes
Waveform Capture Rate	>280, 000 wfms/s
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Vertical Resolution	8 bits
Input Coupling	AC, DC, GND
Operating Temperature	0°C to +50°C
Digital Channels	16
Connectivity	USB, LAN, HDMI
Arbitrary Function Generator	50 MHz
Trigger Types	Edge, Pulse Width, Runt, Logic, Setup/Hold, Rise/Fall Time, Video
Input Impedance	1 MΩ
Maximum Input Voltage	300 Vrms
Dimensions	140 mm
Weight	4.5 kg
Bandwidth	100 MHz, 200 MHz, 350 MHz, 500 MHz
Display	10.1-inch capacitive touch HD display
Voltmeter	4-digit
