Tektronix MDO34 User Manual

Configure the instrument
Set the date and time
Set the date and time so that saved files are marked with the correct date and time information.
Procedure

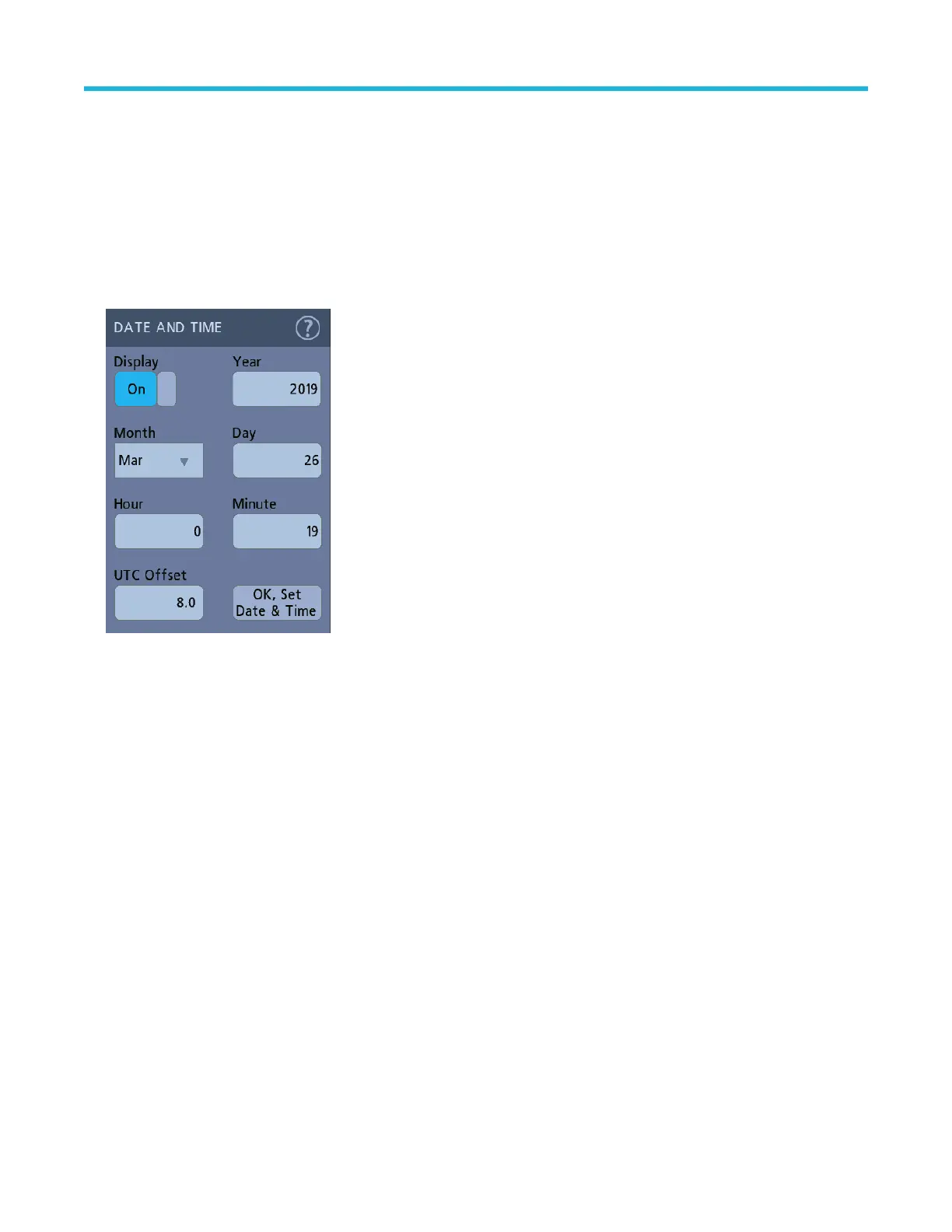

1. Double-tap the Date/T
ime badge (bottom-right of screen) to open the configuration menu.
2. T
o turn off showing the date and time on the screen, tap the Display button to Off.
To turn on date/time display again, double-tap in the blank area where the date/time badge was displayed to open the configuration
menu and set the Display button to On.
3. You may also tap the Year, Day, Hour, Minute, or UTC Offset fields and use the multipurpose knobs to set the fields to the correct
time.
You may also double-tap the fields and use the numeric keypad to set the time.
4. Tap Month and select the month from the list.
5. Tap anywhere outside of the menu to close it.
Functional check
Use this procedure to quickly verify that the oscilloscope can display a waveform and take a measurement.
Procedure
1. Power on the oscilloscope.
2. Tap Utility > Self test. Check that all tests listed show Pass.
3. Connect an analog probe to the Channel 1 connector.
4. Connect the probe tip and ground lead to the probe compensation connectors.
5. Push the Autoset button. You should see a square wave in the display (approximately 2.5 V
P-P
).
6. Tap the Measure button.
7. Tap the Time Measurements panel in the Add Measurements configuration menu.
8. Double-tap the Frequency button and then the Add button to add the frequency measurement to the Results bar.
Configure the instrument
3 Series Mixed Domain Oscilloscope Printable Help 58

Tektronix MDO34 Specifications

General

Analog Channels	4
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Mixed Domain Analysis	Yes
Waveform Capture Rate	>280, 000 wfms/s
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Vertical Resolution	8 bits
Input Coupling	AC, DC, GND
Operating Temperature	0°C to +50°C
Digital Channels	16
Connectivity	USB, LAN, HDMI
Arbitrary Function Generator	50 MHz
Trigger Types	Edge, Pulse Width, Runt, Logic, Setup/Hold, Rise/Fall Time, Video
Input Impedance	1 MΩ
Maximum Input Voltage	300 Vrms
Dimensions	140 mm
Weight	4.5 kg
Bandwidth	100 MHz, 200 MHz, 350 MHz, 500 MHz
Display	10.1-inch capacitive touch HD display
Voltmeter	4-digit
