Tektronix MDO34 User Manual

2. Y
ou can also select File > Default Setup to restore default settings.

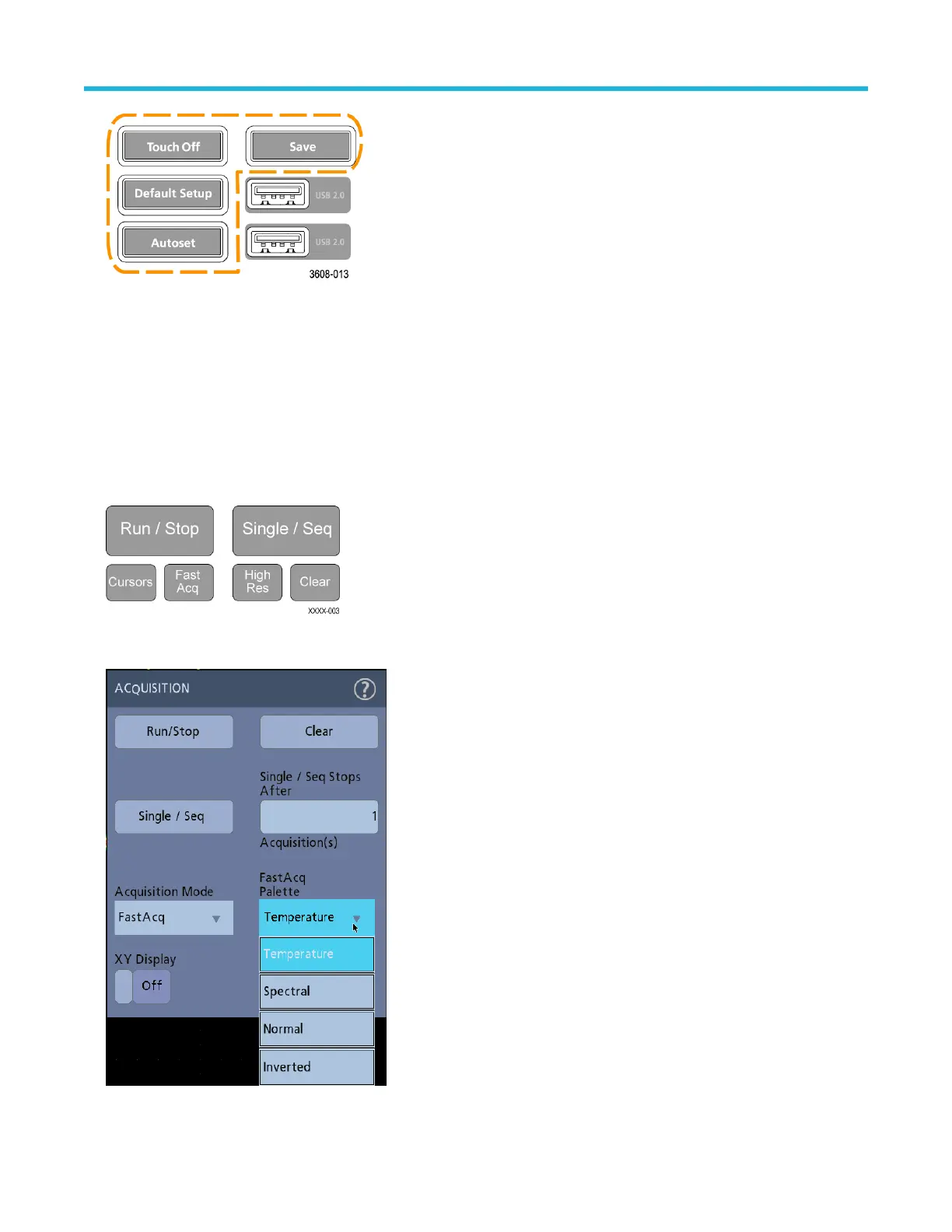

Using Fast Acq
Fast Acq (fast acquisition mode) reduces the dead time between waveform acquisitions, enabling the capture and display of transient
events such as glitches or runt pulses. Fast acquisition mode can also display waveform occurrences at intensity levels that reflect their
rate of occurrence.
Procedure
1. To use Fast Acquisition mode, double-tap the Acquisition badge. Tap Acquisition mode and select Fast Acq from the list. You can
also push the Fast Acq front-panel button.
2. T
o display waveform phenomena at an intensity that reflects their rate-of-occurrence, after selecting the Fast Acq acquisition mode,
tap Fast Acq Palette and select a display palette from the drop-down list.
3. Fast Acq displays waveform phenomena at an intensity that reflects their rate-of-occurrence
Analog channel operating basics
3 Series Mixed Domain Oscilloscope Printable Help 79

Tektronix MDO34 Specifications

General

Analog Channels	4
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Mixed Domain Analysis	Yes
Waveform Capture Rate	>280, 000 wfms/s
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Vertical Resolution	8 bits
Input Coupling	AC, DC, GND
Operating Temperature	0°C to +50°C
Digital Channels	16
Connectivity	USB, LAN, HDMI
Arbitrary Function Generator	50 MHz
Trigger Types	Edge, Pulse Width, Runt, Logic, Setup/Hold, Rise/Fall Time, Video
Input Impedance	1 MΩ
Maximum Input Voltage	300 Vrms
Dimensions	140 mm
Weight	4.5 kg
Bandwidth	100 MHz, 200 MHz, 350 MHz, 500 MHz
Display	10.1-inch capacitive touch HD display
Voltmeter	4-digit
