5. Set the pulse width time constraints:
a) For all Trigger When conditions except Outside Range or Inside Range, tap the Time Limit field and use the assigned
multipurpose knob to set the pulse width time condition to meet.
b) For Outside Range or Inside Range conditions, tap the High Time Limit and Low Time Limit fields and use the assigned
multipurpose knobs to set the pulse width time range condition to meet.
6. Tap the Level field and set the threshold value at which you want to measure pulse width.
7. Select the pulse polarity on which to trigger.
Set Trigger Holdoff
Trigger Holdoff sets the time, after triggering on an event, that the instrument waits before detecting the same trigger event to start the next
acquisition.
About this task

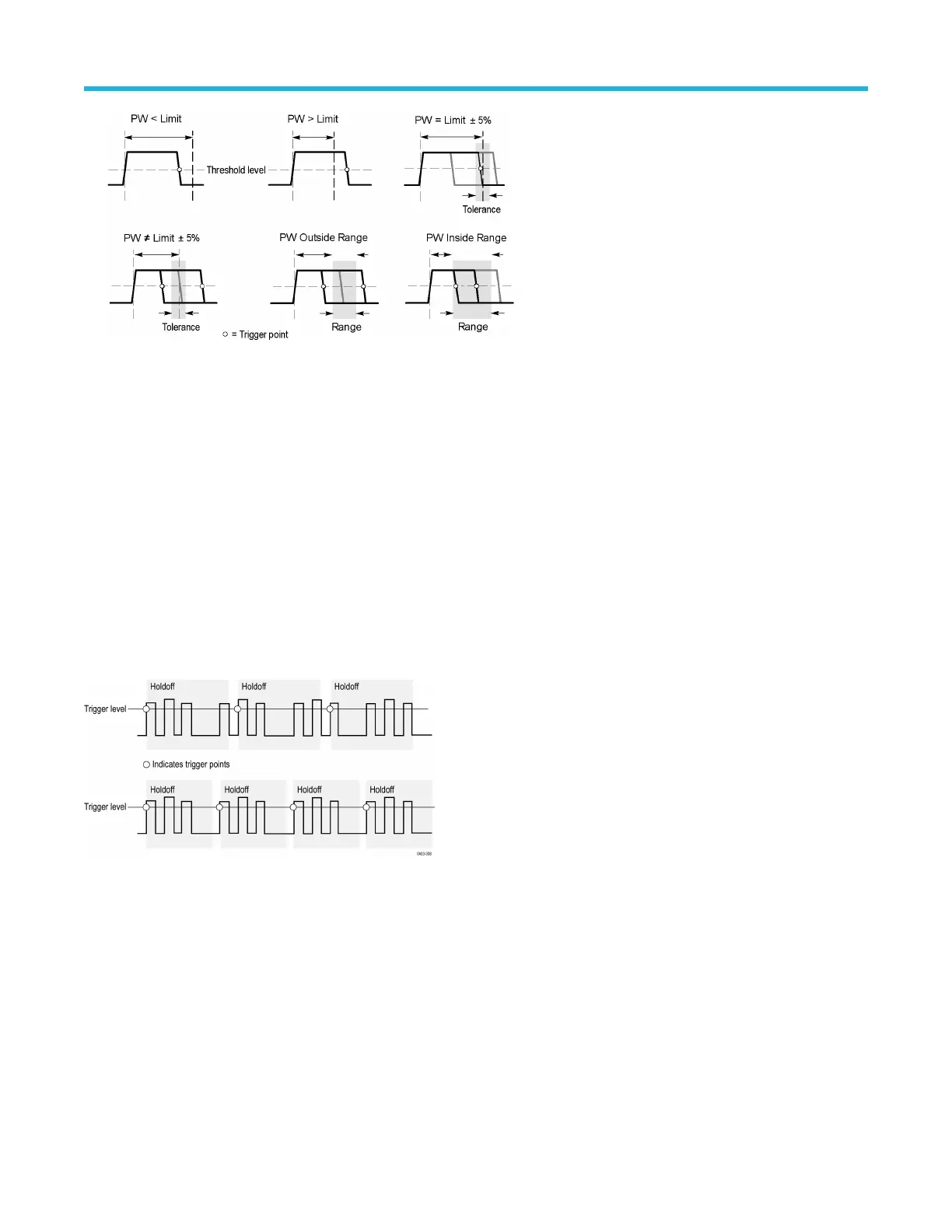

Setting the correct holdoff time is important to get a stable trigger. The longer holdoff time for the top waveform causes unstable triggering.
The shorter holdoff set for the bottom waveform only triggers on the first pulse in the burst to remedy the unstable trigger.
Procedure
1. Double-tap the T
rigger badge on the Settings bar to open the Trigger configuration menu.
2. Tap the Mode & Holdoff panel.
3. To set a specific holdoff time, tap Holdoff and use the assigned multipurpose knob to specify a holdoff time. Or double-tap the field and
use the virtual keypad to enter a holdoff time.
Advanced triggering
3 Series Mixed Domain Oscilloscope Printable Help 88

Tektronix MDO34 Specifications

General

Analog Channels	4
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Mixed Domain Analysis	Yes
Waveform Capture Rate	>280, 000 wfms/s
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Vertical Resolution	8 bits
Input Coupling	AC, DC, GND
Operating Temperature	0°C to +50°C
Digital Channels	16
Connectivity	USB, LAN, HDMI
Arbitrary Function Generator	50 MHz
Trigger Types	Edge, Pulse Width, Runt, Logic, Setup/Hold, Rise/Fall Time, Video
Input Impedance	1 MΩ
Maximum Input Voltage	300 Vrms
Dimensions	140 mm
Weight	4.5 kg
Bandwidth	100 MHz, 200 MHz, 350 MHz, 500 MHz
Display	10.1-inch capacitive touch HD display
Voltmeter	4-digit
