3. Use the configuration menus to refine the waveform parameters. Displayed fields depend on the waveform and selections made in the
menu. Selection changes take ef
fect immediately.

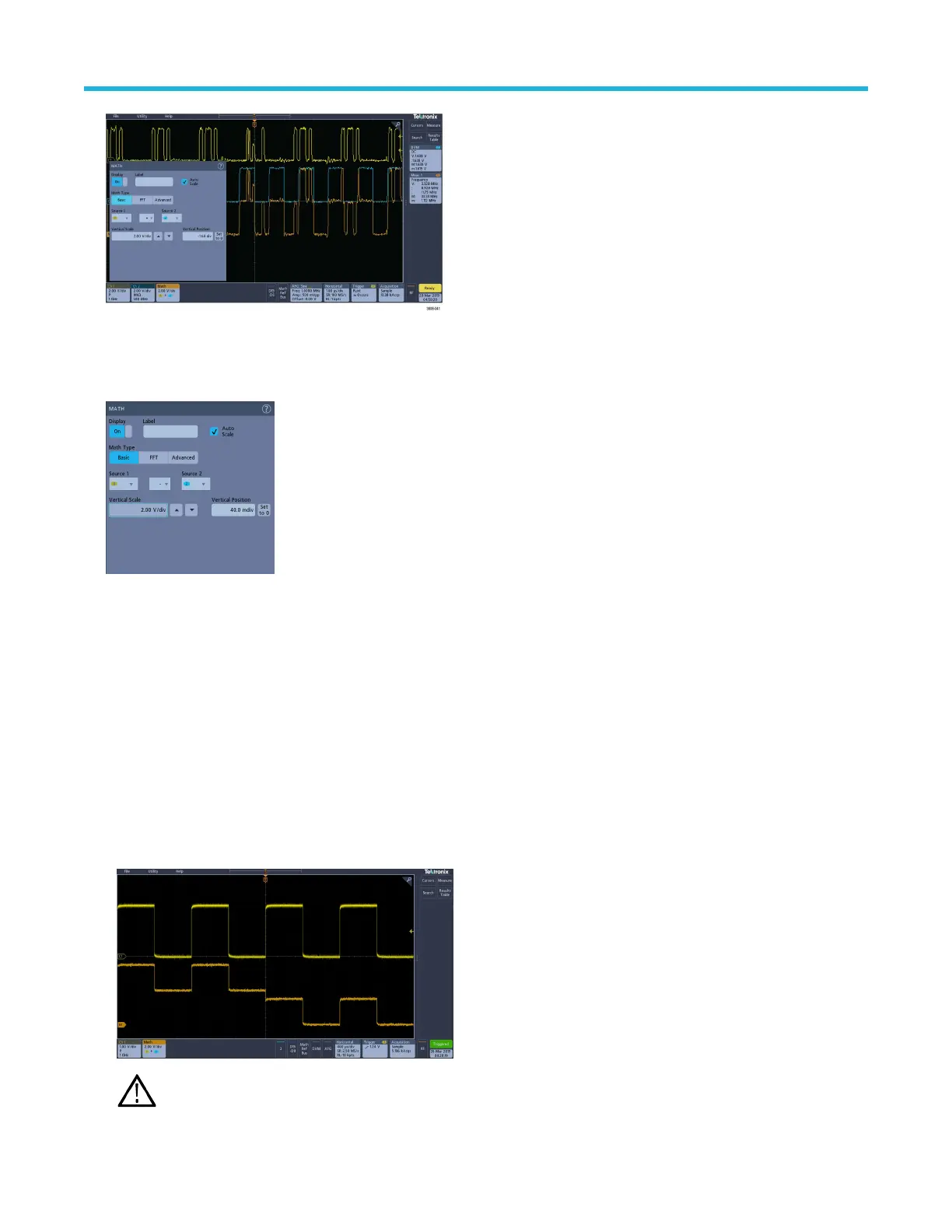

This example shows adding a Math waveform by using the Math Source fields to select Ch 1 and Ch 2 as the waveform sources,
setting the math type to Basic math operation, and subtracting channel 2 from channel 1.
4. When adding a Reference waveform, if a reference is not defined, the instrument displays a Recall configuration menu. Navigate
to and select the reference waveform file (*.isf) to recall, then tap the OK, Recall W
aveform button. The instrument displays the
Reference waveform.
5. Double-tap a math, reference, or bus badge to check or change that waveform's settings. See Configure channel or waveform
settings on page 70.
6. Tap the Help icon on a configuration menu title for more information on math, reference, and bus waveform settings.
7. Tap outside the menu to close the menu.
Add a measurement
Use this procedure to select and add measurements.
Procedure
1. Acquire the channel(s) and/or waveform(s) on which you want to take measurements.
Note: Waveforms do not need to be displayed to be used for measurements as long as the channel or waveform badge is
on the Settings bar and is acquiring the signal to measure.
Analog channel operating basics
3 Series Mixed Domain Oscilloscope Printable Help 72

Tektronix MDO34 Specifications

General

Analog Channels	4
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Mixed Domain Analysis	Yes
Waveform Capture Rate	>280, 000 wfms/s
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Vertical Resolution	8 bits
Input Coupling	AC, DC, GND
Operating Temperature	0°C to +50°C
Digital Channels	16
Connectivity	USB, LAN, HDMI
Arbitrary Function Generator	50 MHz
Trigger Types	Edge, Pulse Width, Runt, Logic, Setup/Hold, Rise/Fall Time, Video
Input Impedance	1 MΩ
Maximum Input Voltage	300 Vrms
Dimensions	140 mm
Weight	4.5 kg
Bandwidth	100 MHz, 200 MHz, 350 MHz, 500 MHz
Display	10.1-inch capacitive touch HD display
Voltmeter	4-digit
