Waveform acquisition concepts
Acquisition concepts
The Acquisition system sets which data points are used to acquire waveforms.
Acquisition hardware
Before a signal is displayed, it must pass through the input channel where it is scaled and digitized. Each channel has a dedicated input
amplifier and digitizer
. Each channel produces a stream of digital data from which the instrument extracts waveform records.

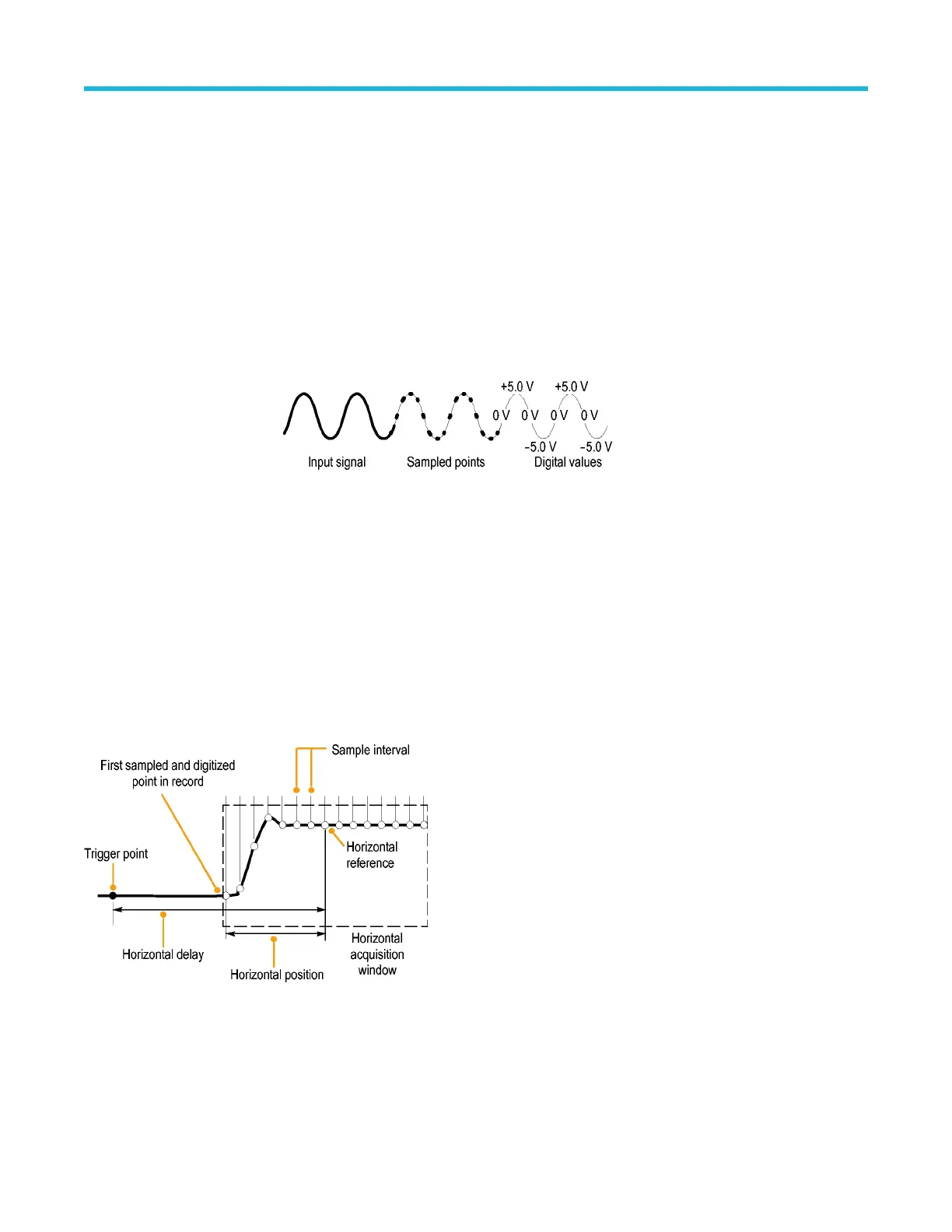

Sampling process
Acquisition is the process of
sampling an analog signal,
converting it into digital data,
and assembling it into a
waveform record, which is
then stored in acquisition
memory
.
Waveform record
The instrument builds the waveform record through use of the following parameters:
•
Sample interval: The time between sample points.
• Record length: The number of samples required to fill a waveform record.
• Trigger point: The zero time reference in a waveform record.
• Horizontal position: When horizontal delay is off, the horizontal position is a percentage of the waveform record between 0 and 99.9
percent. The trigger point and the horizontal reference are at the same time in the waveform record. For example, if the horizontal
position is 50 percent, then the trigger point is in the middle of the waveform record. When horizontal delay is on, the time from the
trigger point to the horizontal reference is the horizontal delay.
Waveform acquisition concepts
3 Series Mixed Domain Oscilloscope Printable Help 235

Tektronix MDO34 Specifications

General

Analog Channels	4
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Mixed Domain Analysis	Yes
Waveform Capture Rate	>280, 000 wfms/s
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Vertical Resolution	8 bits
Input Coupling	AC, DC, GND
Operating Temperature	0°C to +50°C
Digital Channels	16
Connectivity	USB, LAN, HDMI
Arbitrary Function Generator	50 MHz
Trigger Types	Edge, Pulse Width, Runt, Logic, Setup/Hold, Rise/Fall Time, Video
Input Impedance	1 MΩ
Maximum Input Voltage	300 Vrms
Dimensions	140 mm
Weight	4.5 kg
Bandwidth	100 MHz, 200 MHz, 350 MHz, 500 MHz
Display	10.1-inch capacitive touch HD display
Voltmeter	4-digit
