Tektronix MDO34 User Manual

Note: To trigger on a bus, you must first add the bus to the Waveform view. See Add a math, reference, or bus
waveform on page 71
Note: T
riggering on buses other than Parallel requires the purchase and installation of serial trigger and analysis options. See
the Tektronix Web site for available serial trigger and analysis options.

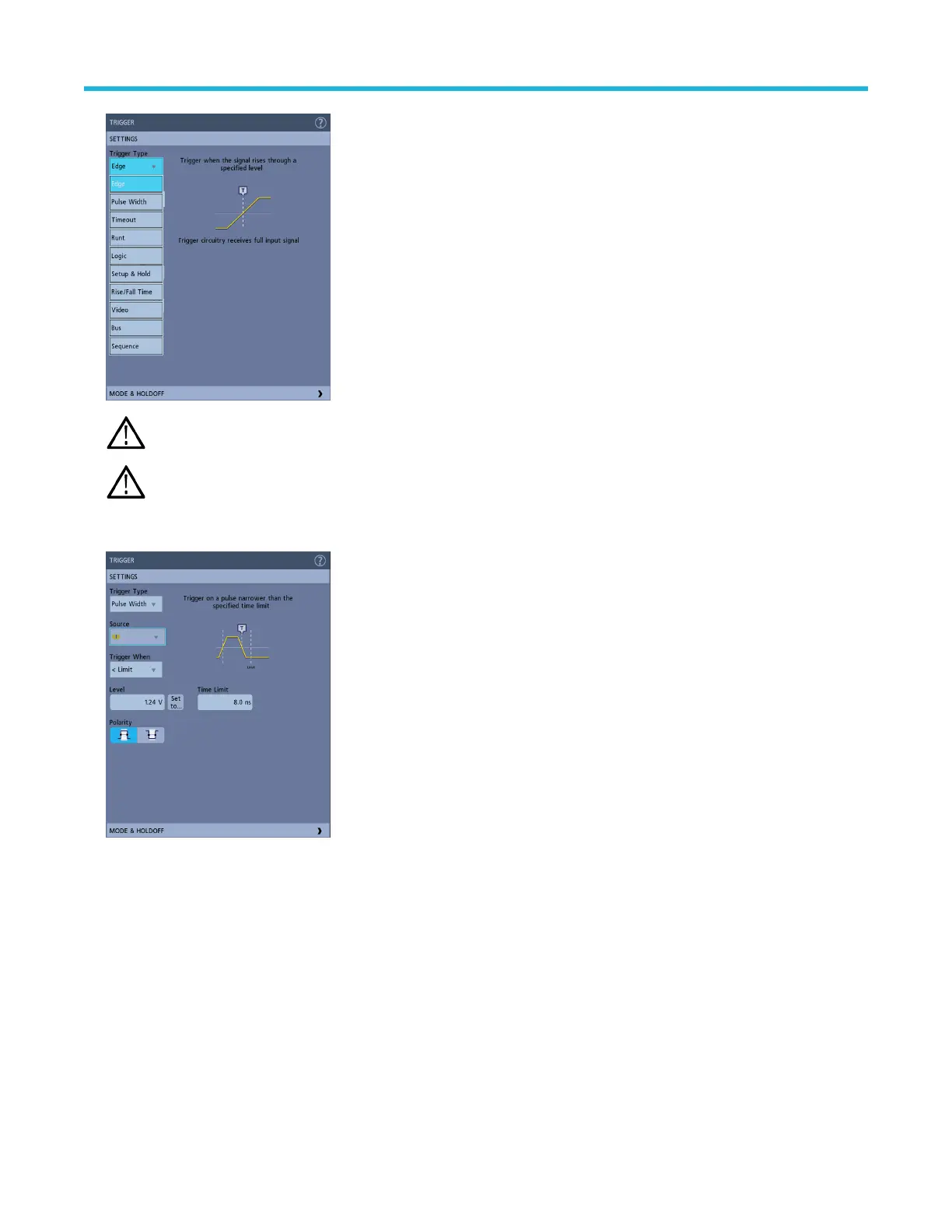

3. Select the other fields to refine the trigger conditions. The menu fields and trigger graphic update as you make changes to the trigger
settings. Displayed fields depend on the selected trigger type. Selection changes take ef
fect immediately.
4. T
ap the Help icon on the menu title for more information on these settings.
5. Tap outside the menu to close the menu.
Set the acquisition mode
Use this procedure to set the method the instrument uses to acquire and display the signal.
Procedure
1. Double-tap the Acquisition badge on the Settings bar to open the Acquisition configuration menu.
2. Select the acquisition method from the Acquisition Mode list. Set any other parameters associated with the selected acquisition type.
Analog channel operating basics
3 Series Mixed Domain Oscilloscope Printable Help 68

Tektronix MDO34 Specifications

General

Analog Channels	4
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Mixed Domain Analysis	Yes
Waveform Capture Rate	>280, 000 wfms/s
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Vertical Resolution	8 bits
Input Coupling	AC, DC, GND
Operating Temperature	0°C to +50°C
Digital Channels	16
Connectivity	USB, LAN, HDMI
Arbitrary Function Generator	50 MHz
Trigger Types	Edge, Pulse Width, Runt, Logic, Setup/Hold, Rise/Fall Time, Video
Input Impedance	1 MΩ
Maximum Input Voltage	300 Vrms
Dimensions	140 mm
Weight	4.5 kg
Bandwidth	100 MHz, 200 MHz, 350 MHz, 500 MHz
Display	10.1-inch capacitive touch HD display
Voltmeter	4-digit
