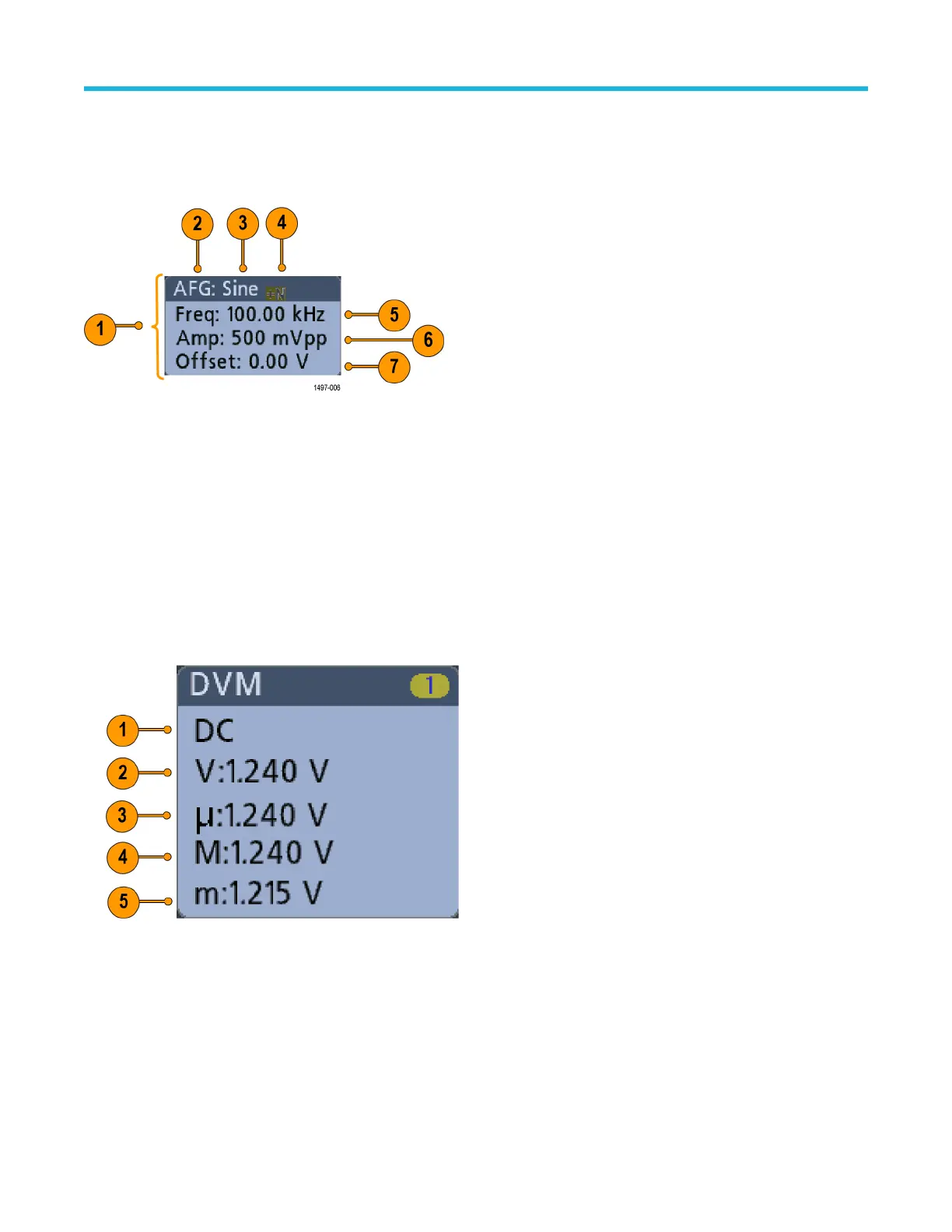

Identifying items in the arbitrary function generator display
This topic shows and describes each element of the arbitrary function generator display
.
Each element of the arbitrary function generator display gives information about the generated function.
1. If visible, the output is on
2. AFG label
3. W
aveform type, such as Sine
4. Additive Noise icon
5. Frequency
6. Amplitude
7. Offset
Identifying items in the digital voltmeter display
This topic shows and describes each element of the digital voltmeter display.
Each element of the digital voltmeter display gives information about the measurement.
1.
Measurement type (AC+DC RMS, DC, AC RMS, or Frequency)
2. Numerical value of the current measurement
3. A
verage of all measurement values recorded since you powered on the instrument or since you last reset DVM statistics.
4. Maximum measurement value recorded since you powered on the instrument or since you last reset DVM statistics.
5. Minimum measurement value recorded since you powered on the instrument or since you last reset DVM statistics.
Getting acquainted with your instrument
3 Series Mixed Domain Oscilloscope Printable Help 49

Tektronix MDO34 Specifications

General

Analog Channels	4
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Mixed Domain Analysis	Yes
Waveform Capture Rate	>280, 000 wfms/s
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Vertical Resolution	8 bits
Input Coupling	AC, DC, GND
Operating Temperature	0°C to +50°C
Digital Channels	16
Connectivity	USB, LAN, HDMI
Arbitrary Function Generator	50 MHz
Trigger Types	Edge, Pulse Width, Runt, Logic, Setup/Hold, Rise/Fall Time, Video
Input Impedance	1 MΩ
Maximum Input Voltage	300 Vrms
Dimensions	140 mm
Weight	4.5 kg
Bandwidth	100 MHz, 200 MHz, 350 MHz, 500 MHz
Display	10.1-inch capacitive touch HD display
Voltmeter	4-digit
