8. T
ap outside the Add Measurements menu to close the menu.
9. To further adjust a measurement's settings, double-tap a measurement badge to open a configuration menu for that measurement.
See Configure a measurement on page 74.
10. Tap the Help icon on the menu title for more information on settings.
Configure a measurement
Use this procedure to add statistical readouts to the measurement badge and refine measurement parameters (configuration, global
versus local scope of settings, gating, and so on).
Procedure

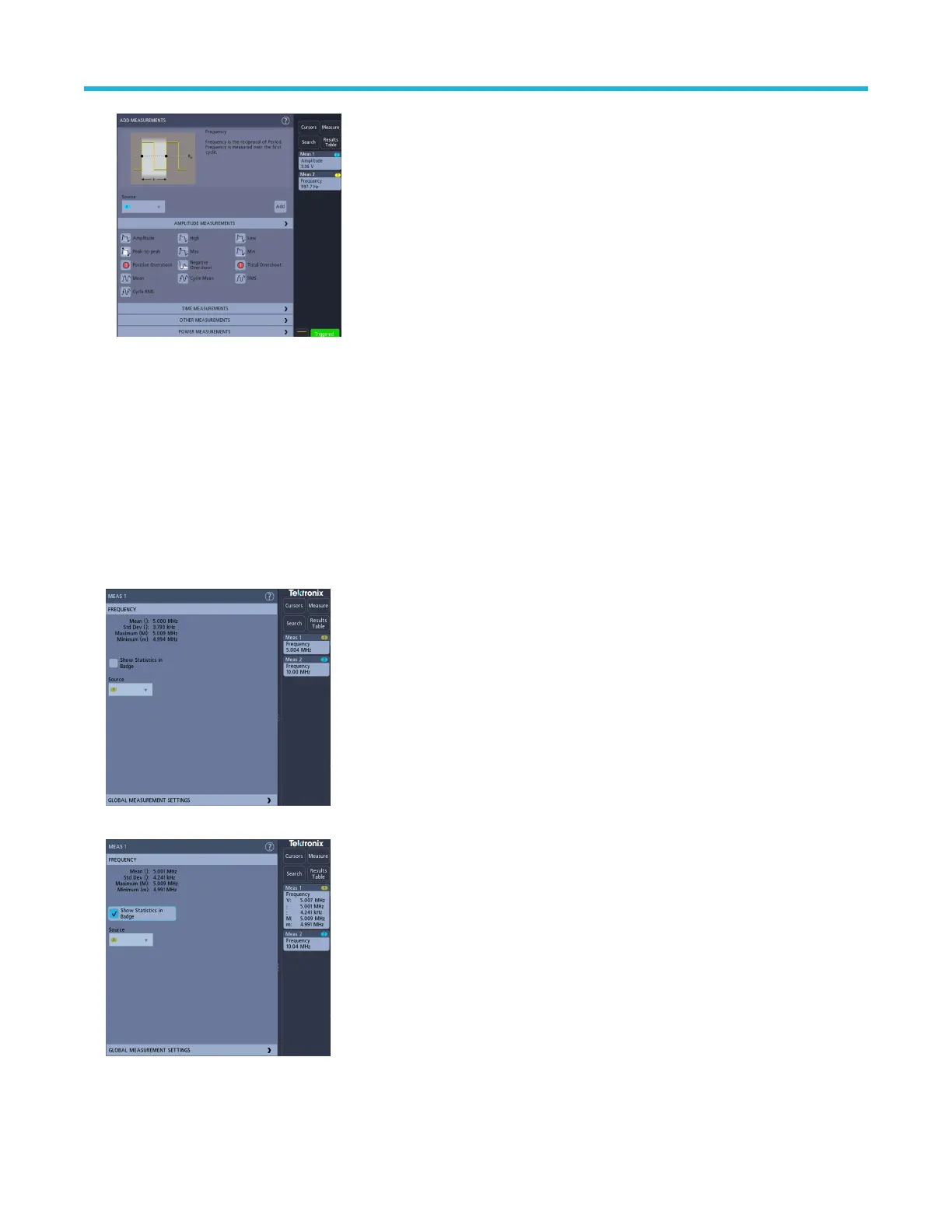

1. Double-tap a measurement badge to open its Measurement configuration menu.
2. T
ap Show Statistics in Badge to add statistical readouts to the measurement badge.
3. T
ap available panel titles to make changes for those categories.
Analog channel operating basics
3 Series Mixed Domain Oscilloscope Printable Help 74

Tektronix MDO34 Specifications

General

Analog Channels	4
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Mixed Domain Analysis	Yes
Waveform Capture Rate	>280, 000 wfms/s
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Vertical Resolution	8 bits
Input Coupling	AC, DC, GND
Operating Temperature	0°C to +50°C
Digital Channels	16
Connectivity	USB, LAN, HDMI
Arbitrary Function Generator	50 MHz
Trigger Types	Edge, Pulse Width, Runt, Logic, Setup/Hold, Rise/Fall Time, Video
Input Impedance	1 MΩ
Maximum Input Voltage	300 Vrms
Dimensions	140 mm
Weight	4.5 kg
Bandwidth	100 MHz, 200 MHz, 350 MHz, 500 MHz
Display	10.1-inch capacitive touch HD display
Voltmeter	4-digit
