Acquiring Waveforms
3-40
TDS5000 Series User Manual

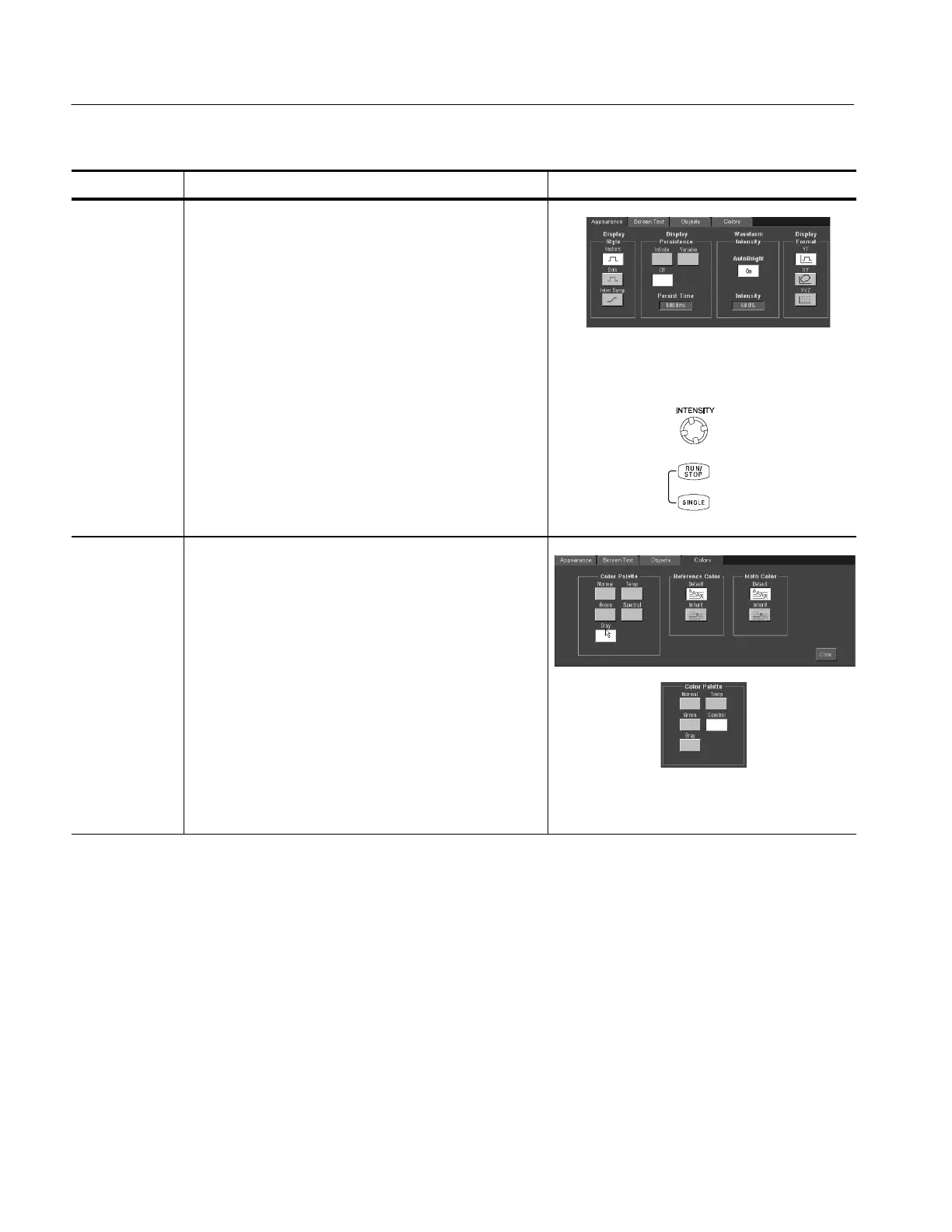

Overview Control elements and resourcesTo turn Fast Acquisitions on and off
Adjust the
intensity
10. Select the Display Setup control window Appearance
tab.
11. Click the Waveform Intensity AutoBright button to toggle
AutoBright On and Off.
H On automatically sets the maximum intensity t o the
value of the most frequent event.
H Off creates a display like an analog oscilloscope.
The displayed brightness depends on the trigger
rate.
12. Rotate the front--panel INTENSITY knob to adjust the
intensity of displayed waveforms, or click the Intensi ty
control and enter the intensity value with the keypad or
general purpose knob.
Select the
color palette
13. Select the Display Setup control window Color tab.
14. Click the a Color Palettebutton. In Fast Acquisitionsmode,
Temp and Spectral show more detail than the other color
palettes.
For a definition of each col or palette, refer to Color
Palette on page 3--107.
