Triggering
3-92
TDS5000 Series User Manual

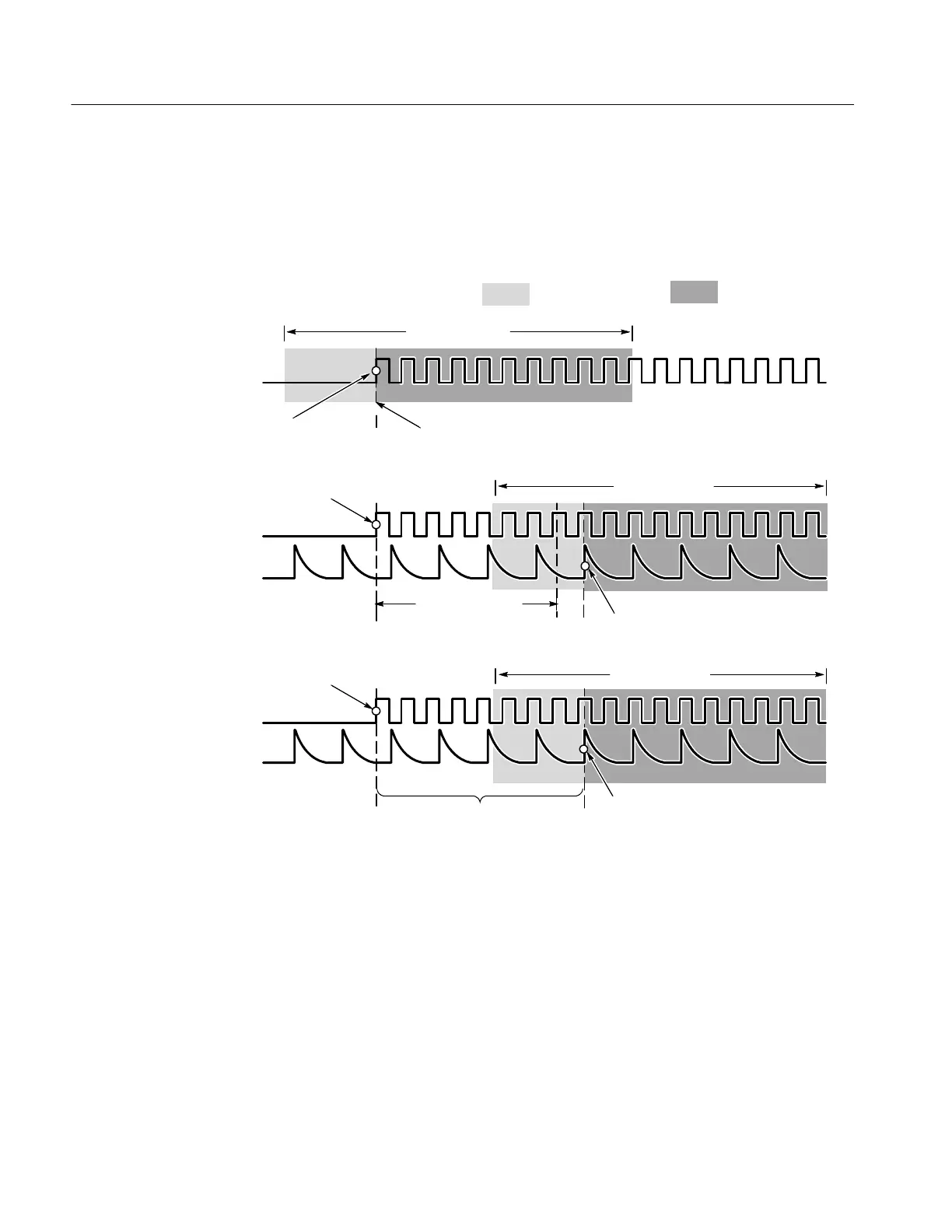

Triggering with Horizontal Delay Off. Figure 3--26 compares the sequential trigger
choices A Only, Trig After Time, and Trig on n
th
Event when horizontal delay is
off. Each illustration shows where pretrigger and posttrigger data is acquired
relative to the trigger event.
Trigger delay time
Waiting for nth event
(where n=5)
A trigger point Start posttrigger acquisition
A trigger
source
Trig on nth Event
A trigger
source
B trigger
source
B trigger point; Start posttrigger
acquisition on first B trigger after delay
Waveform record
A trigger
source
B trigger
source
Trig After Time
A (Main) Only
Pretrigger record
Posttrigger record
Waveform record
Waveform record
A trigger point
A trigger point
B trigger point; Start posttrigger
acquisition on nth B event
Figure 3- 26: Triggering with Horizontal Delay off
