Creating and Using Math Waveforms
3- 156
TDS5000 Series User Manual
Center frequency
Span
Center frequency is 1.0 and
span is 0.5. Gate width= 200
Increase the center frequency.
Decrease the center frequency.
Set center frequency back to 1 and
decrease the Span.
Decrease the Span again.
Increase resolution by
reducing Resolution BW
(increasing the gate length).
Increase resolution again by
reducing the Resolution BW
(doubling the gate l ength).
Start Stop

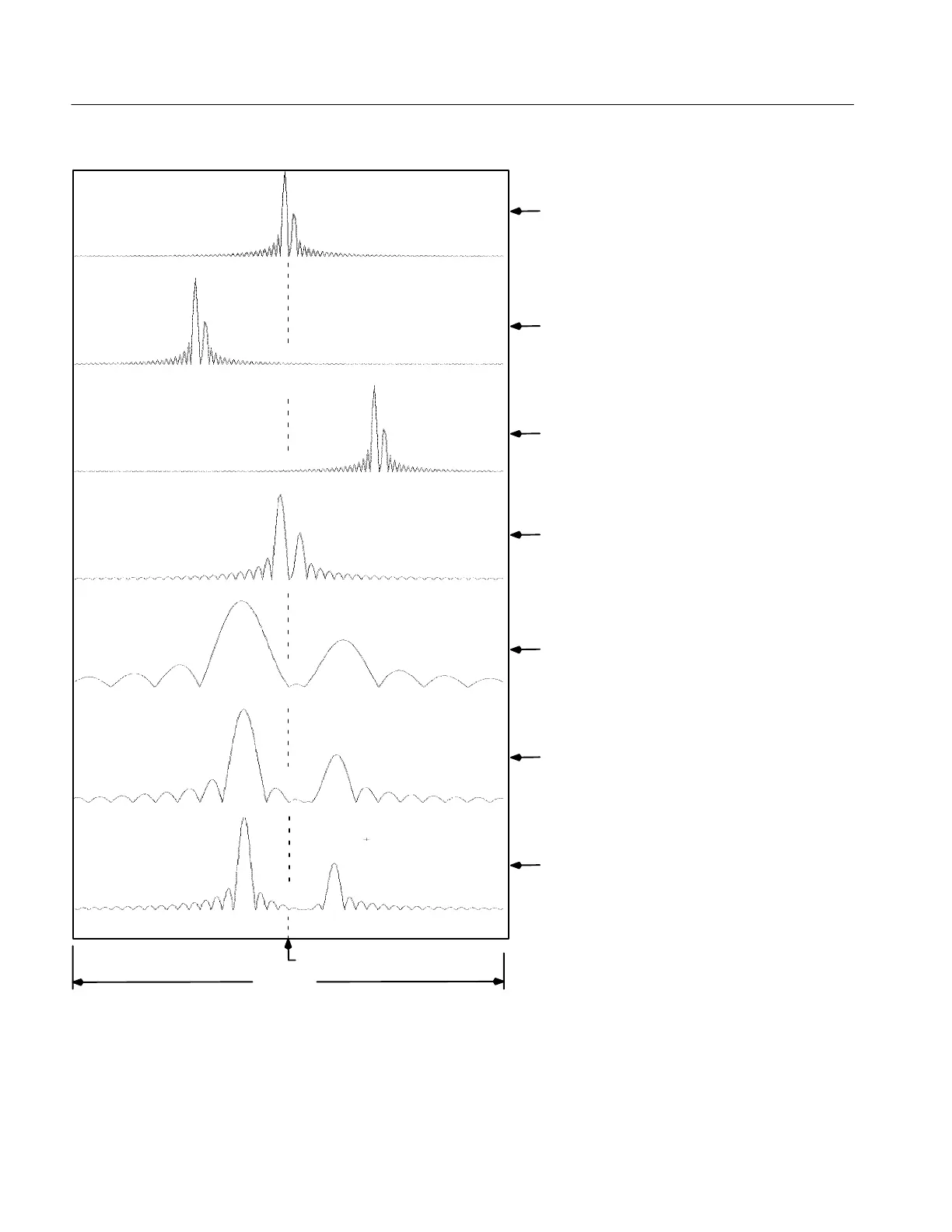

Figure 3- 44: Effects of frequency domain control adjustments
