Acquiring Waveforms
3-48
TDS5000 Series User Manual
Overview Control elements & resourcesTime stamping frames
To lock the
reference
position
frames

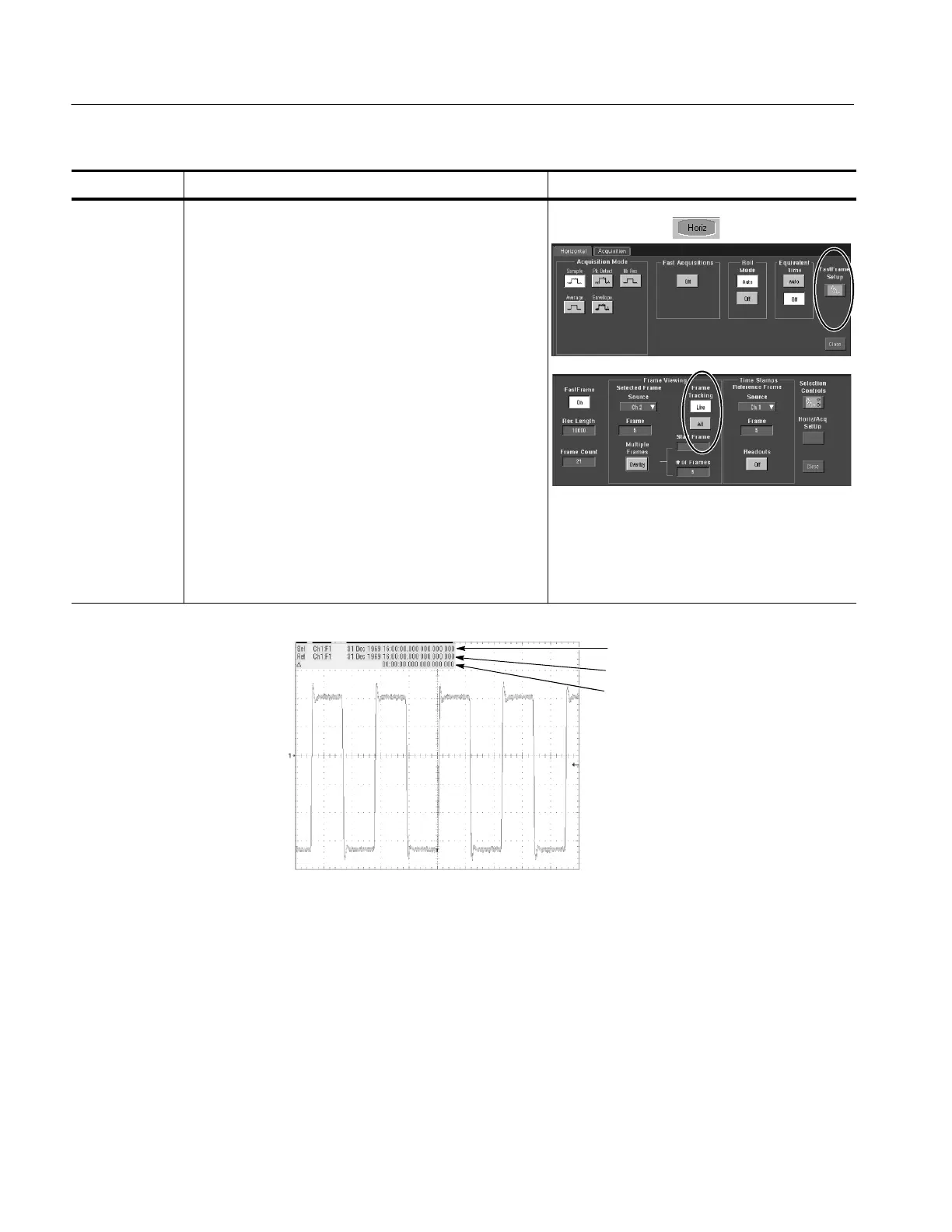

10. Touch the Horiz button. Select t he Acquisition tab from
the Horiz/Acq control window. Touch FastFrame Setup
to display the FastFrame Setup control window.
Note: You can also get the FastFrame Setup control
window by pushing the Set Up button on the Sel ection
Controls window.
11. Touch either Frame Tracking Live or All to lock the
reference and position frames together. When the
frames are locked, they maintain the same relative
distance from each other when either frame is adjusted:
H Live locks together the channel and math
waveforms. All reference waveforms are locked
together, but they are separate from the channel
and math waveforms.
H All locks together all channel, math, and reference
waveforms; adjusting one waveform adjusts all
waveforms.
Time difference between the reference
and selected frames
Trigger time of the reference frame
Trigger time of the selected frame
Figure 3- 18: FastFrame t ime stamp
