Creating and Using Math Waveforms
TDS5000 Series User Manual
3- 153
Resolution004ms
Duration1ms
Record length 25
Record length 50
Duration2ms
Resolution 0.04 ms
Record length 25
Duration2ms
Resolution 0.03 ms
Duration2ms
Record length 100Resolution 0.02 ms
Adjust Duration via
sample rate
Adjust Duration via
record length
Adjust Resolution
Duration remains
constant

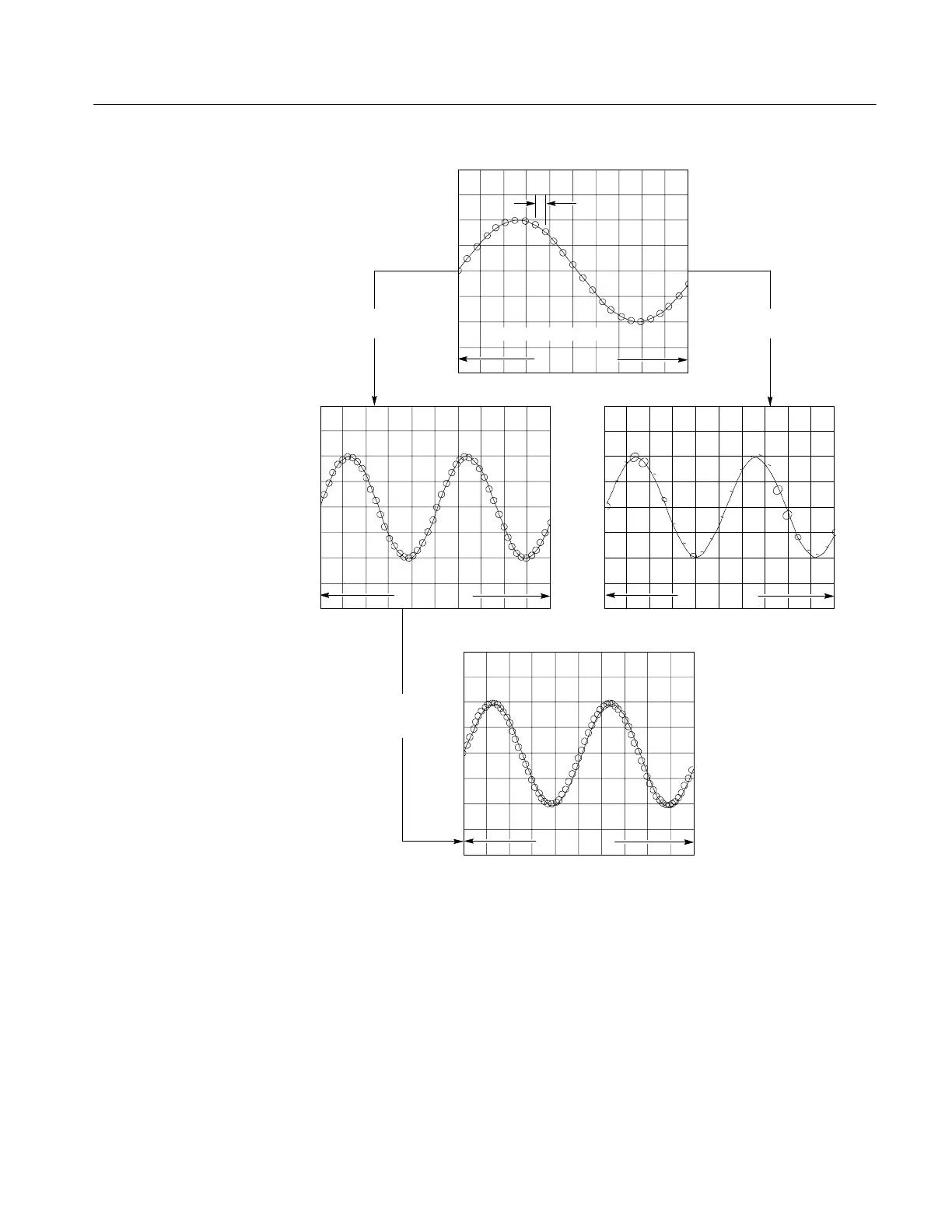

Figure 3- 42: Duration and resolution control effects
Using gating controls. Gating determines which portion of the acquired waveform
is transformed into the frequency domain. The gate has a position and a width
control.
The gate position is the time in seconds from the trigger location to the center
50% position of the gate interval (see Figure 3--43). The position and width units
are seconds.
