For example, if you are saving a series of rise time data files, you can use
“Risetime” as the base file name. Your first file is saved as Risetime000.ext. The
next file will be Risetime001.ext, and so on.
If Count reaches 999, it is suggested that you change the base file name to
Basefilename1 (for example, Risetime1) on the next save. Your next file will
then be saved as Risetime1000.ext. You will receive a warning message if you
are going to overwrite any files with the same name.
Use the procedure that follows to save a setup to one of ten internal locations, the
oscilloscope hard disk, a floppy disk, or third-party storage device.

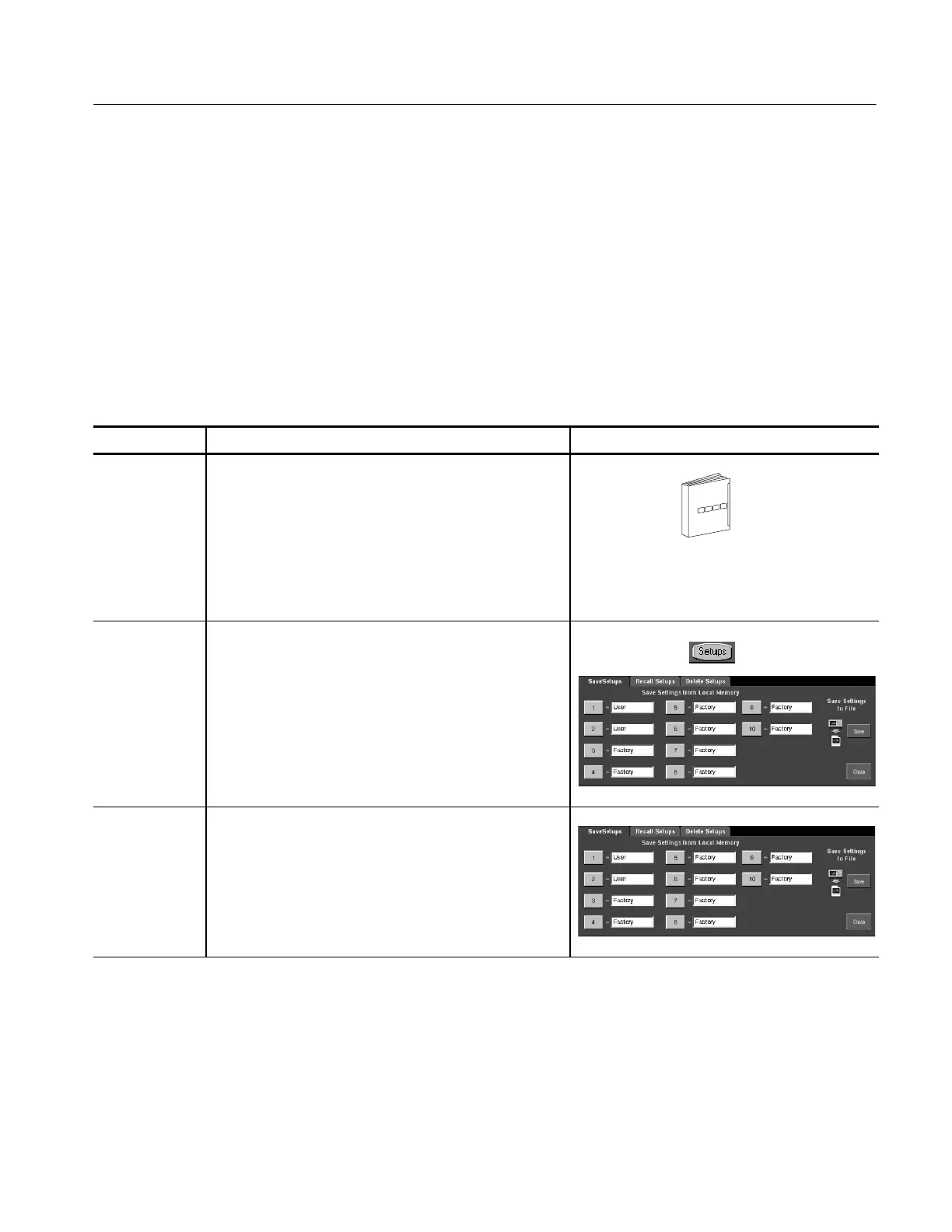

Overview To save a setup Control elements and resources
Prerequisites
1. Power on the oscilloscope.
2. Set up the oscilloscope controls as you want them
saved as part of a recallable setup.
For help in making your setup, check the references at
right and other sections in thi s chapter specific to the
setup you wish to make.
See Powering O n the Oscilloscope on page 1--8,
page 3--25 for acquisition setup, and page 3--49 for
trigger setup.
Open the
Instrument
Setup control
window
3. From the toolbar, cli ck Setups to open the I nstrument
Setup control window. The window opens on the Save
Setups tab.
Save the setup
4. Click one of the numbered butt ons to save the setup. If
any data exists in the set up, it will be overwritt en.
Saving A Setup
To Next Page
