Tektronix VM Series User Manual

Creating and Using Math Waveforms
TDS5000 Series User Manual
3- 169
1
0
Amplitude
Time
--92 dB side lobe
0
-- 8 0
dB
Frequency bins
-- 4 0

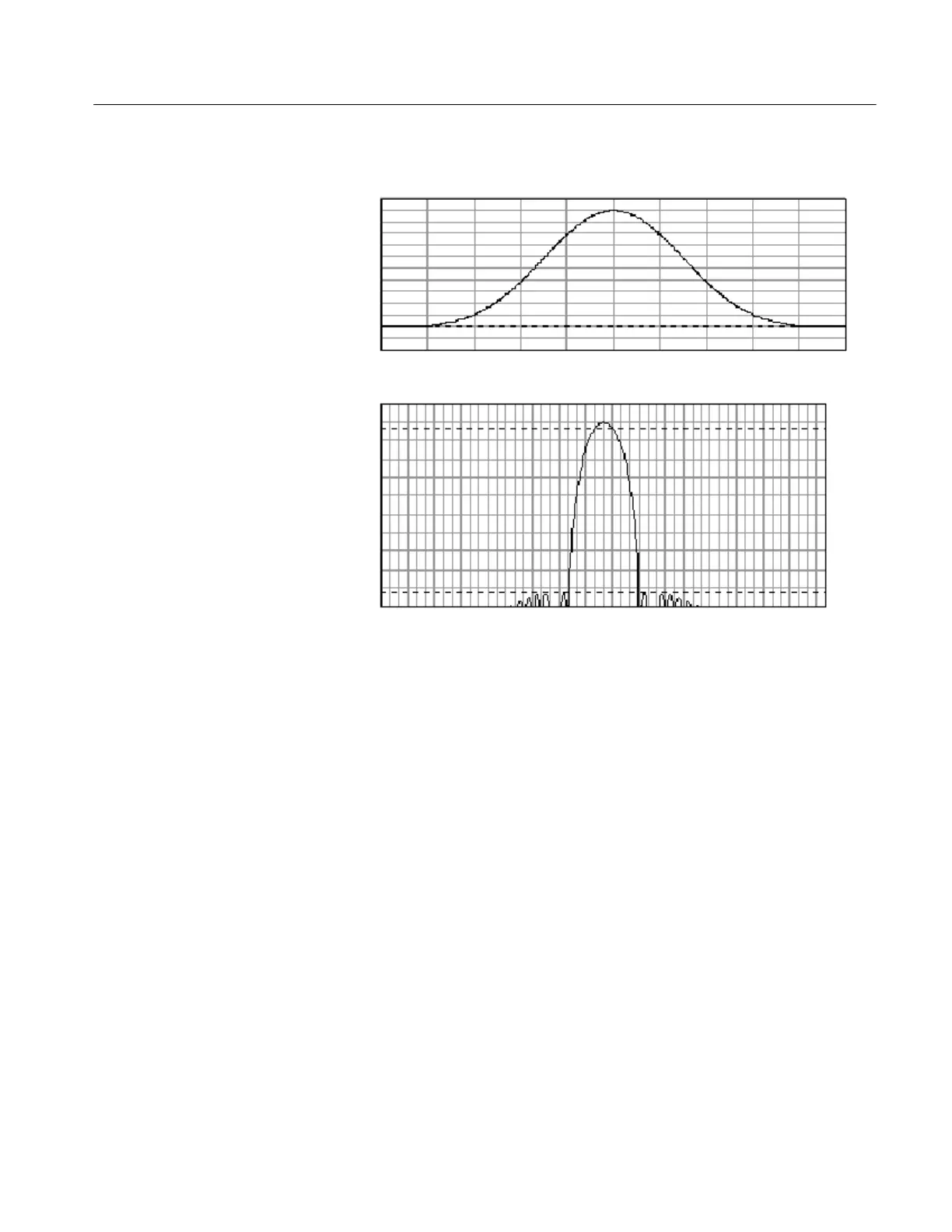

Figure 3- 55: Time and frequency graphs of the Blackman-Harris window
Flattop2 Window: This window has the lowest scallop loss of any of the
windows. It also has a wider resolution bandwidth but lower side lobe attenua-
tion. Also, it is unique because the time domain shape has negative values.
