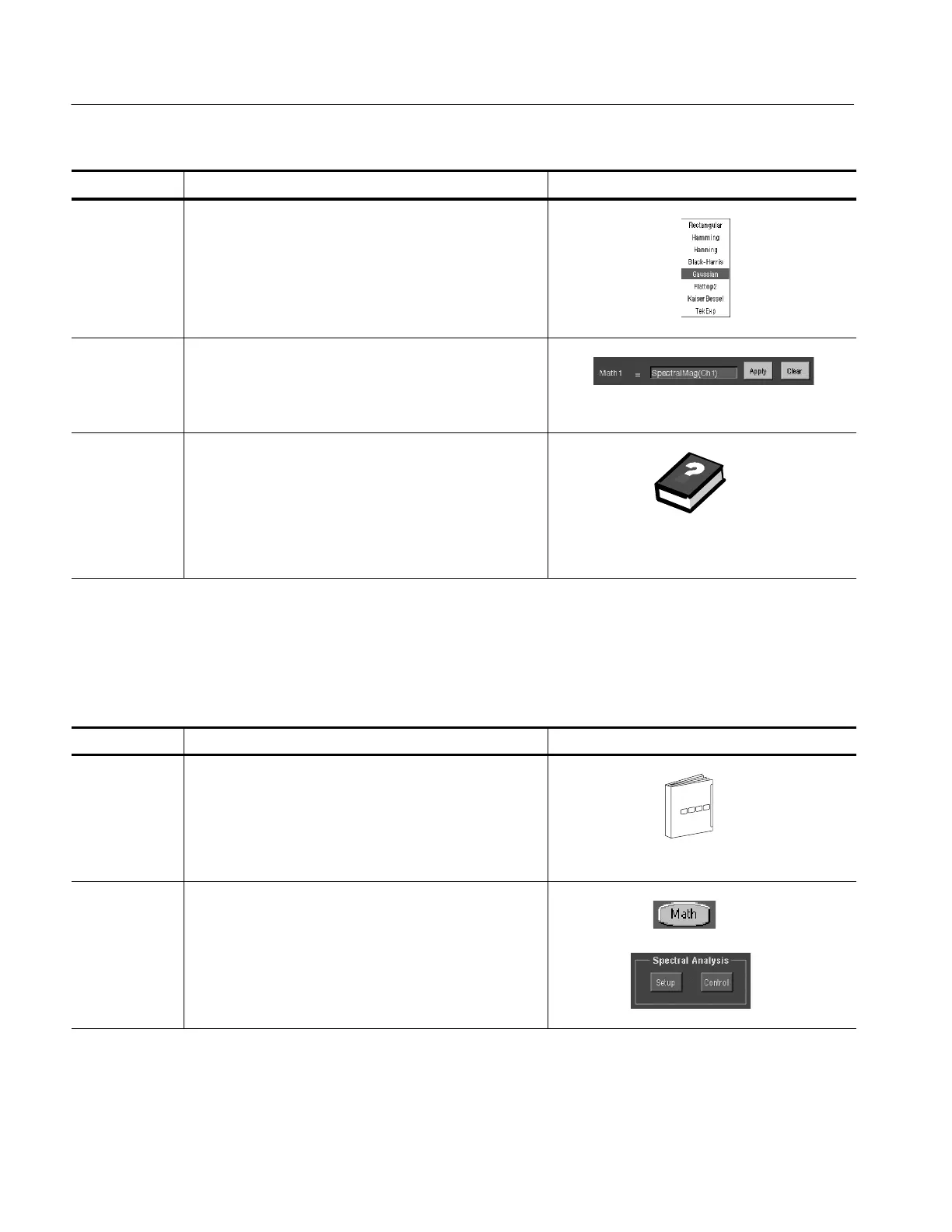

Creating and Using Math Waveforms
3- 176
TDS5000 Series User Manual
Overview Control elements and resourcesTo define a spectral math waveform
Select the
window type
6. To select the window type,click Window Type and select
from the list. A discussion of the FFT window types
begins on page 3--160.
Redefine the
spectral
waveform
7. To redefine your waveform, click Clear and repeat the
above steps.
For further
assistance
8. Access the online help for more information about
creating spectral math waveforms.
See Accessing O nline Help on page 3--209 for an
overview of the online help system
Use this procedure to define a spectral math waveform using the Advanced
Analysis option. First ensure that the sources you use exist. Channel sources
should be acquiring or have acquired data. These sources do not have to be
displayed to be used.
Overview To define a spectral math waveform Control elements and resources
Prerequisites
1. All sources that you will use in your math waveform
must be available.
See page page 3--25 for acquisition setup
Open the
Spectral
Analysis
Setup control
window
2. From the toolbar, cli ck the Math button to open the Math
Setup control window.
3. Click Spectral Analysis Setup to open the Spectral
Analysis Setup control window.
Defining a Spectral Math
Waveform ( Optional)
To Next Page
