Triggering
3-80
TDS5000 Series User Manual

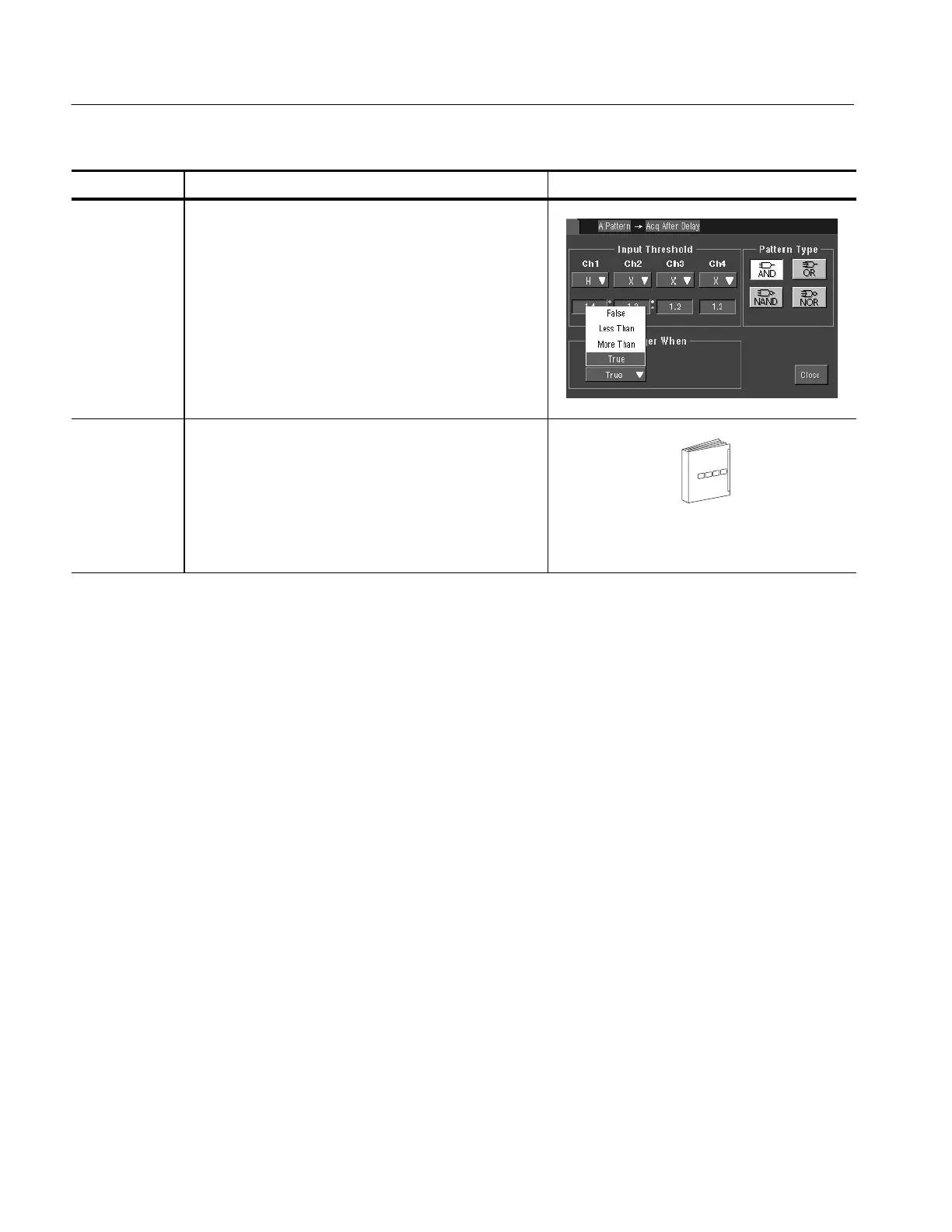

Overview Control elements and resourcesTo trigger on a pattern
Set trigger
criteria
7. From the Trigger When Pattern list, select True to trigger
the oscilloscope when the logic patterns are true. Select
False to trigger the oscilloscope when the logic patterns
are false.
The list items More Than and Less Than are used to
time qualify a pattern trigger. See Step 9 for instructions.
Set mode and
holdoff
8. Mode and holdoff can be set for all standard trigger
types. Refer to Select the trigger mode on page 3--56
and Set holdoff on page 3--59. To learn more about
trigger mode and holdoff, see Trigger Modes on
page 3--51 and Trigger Holdoff on page 3--52.
For mode and holdoff setup, see Select the trigger
mode on page 3--56 and Set holdoff on
page 3--59.
