TELOS TWOX12 USER’S MANUAL
DETAILED CONFIGURATION & REFERENCE
CHAPTER 7 101

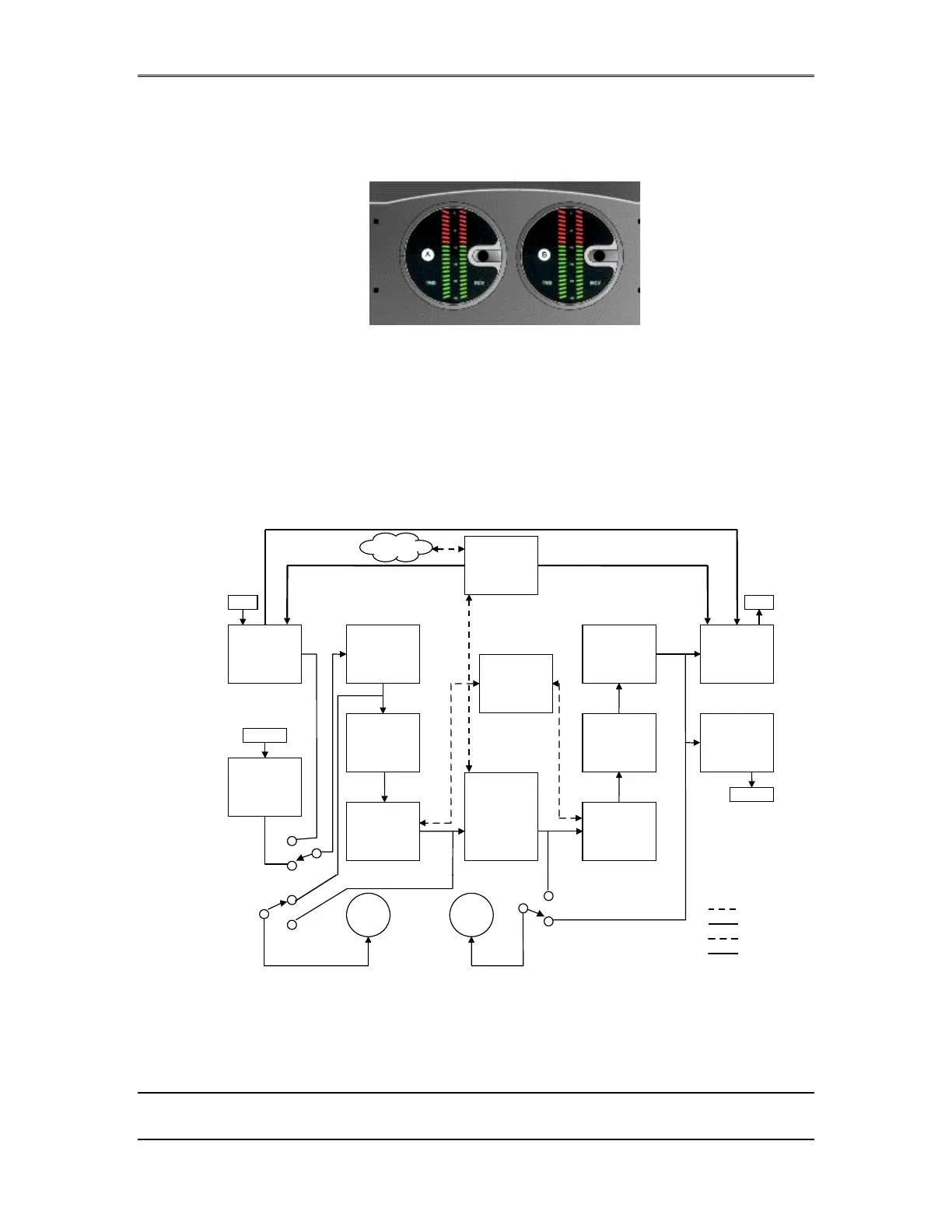

7.1 Level Metering
The Telos Two includes two LED dual level meters. As is customary with digital
equipment these are peak reading meters with the topmost segment representing
0dBfs (digital 0). The following block diagram indicates where the metering takes
place. Note that all metering occurs in the digital domain. The metering is designed
so that the highest peak reading persists for a few seconds to aid in perceiving short
peaks. As with any digital system there is no level beyond 0dBfs and you must not
attempt to exceed that level or severe distortion will result.
GAIN
BLOCK
EQ
BLOCK
AGC
BLOCK
DUCKING
DECISION
BLOCK
ISDN
INTERFACE
BLOCK
GAIN
BLOCK
DDEQ
BLOCK
AGC
BLOCK
HYBRID
BLOCK
DSP BLOCK
AES
ANALOG
AES/EBU
SAMPLE
RATE
CONVERTER
ANALOG TO
DIGITAL
CONVERTER
INPUT
SELECT
AES/EBU
ANALOG
INPUT/
SEND
METER
SELECT
STUDIO IN
HYBRID SEND
AES/EBU
SAMPLE
RATE
CONVERTER
DIGITAL
TO ANALOG
CONVERTER
OUPUT/
RECEIVE
METER
SELECT
HYBRID RECEIVE
STUDIO OUT
AES
ANALOG
OUTPUTS
INPUTS
ISDN MASTER CLOCK
AES/EBU SYNC CLOCK
ISDN BRI
AUDIO
CONTROL
CLOCK
ISDN AUDIO
TELOS TWO - Signal Flow
Simplified Block diagram of the TWOx12’s integral Telos TWO dual hybrid. For the
sake of simplicity only one audio channel is shown.
