TELOS TWOX12 USER’S MANUAL
INSTALLATION
CHAPTER 2 37

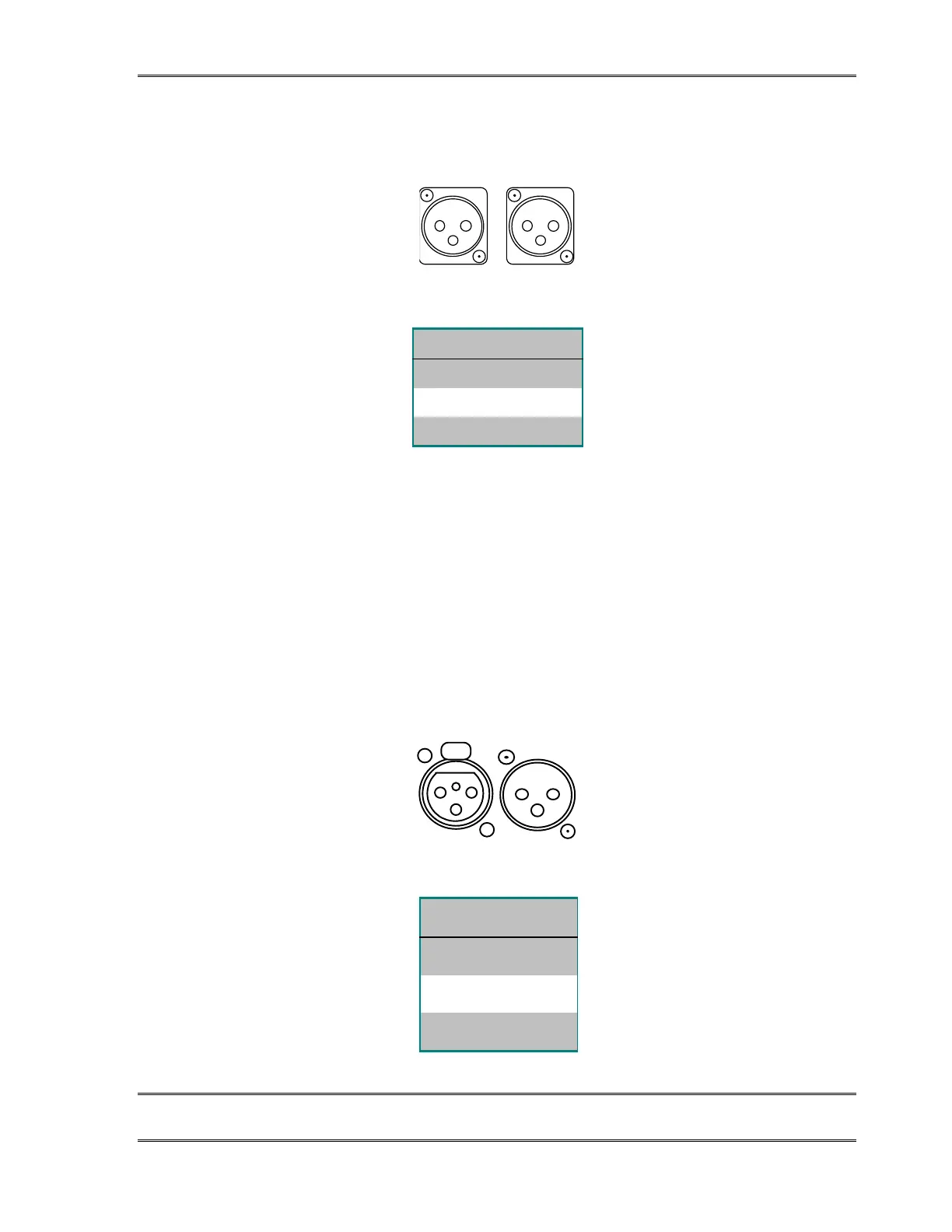

2.6.4 Output – (Caller) Left & Right Audio
12
Output – Caller
PIN FUNCTION
1 Ground
2 Audio +
3 Audio -
The analog audio outputs have the following characteristics:
• Active differential
• Output level: -7 to +8 dBu, nominal (See section 3.4.1 for setting this parameter).
• Clip point: +21dBu.
• Impedance: < 60Ω x 2
If a single-ended (unbalanced) output is required, connect between ground and either of the
output pins. Do not ground the unused pin.
2.6.5 AES/EBU Digital Audio In/Out
OUT IN
AES/EBU
PIN FUNCTION
1 Ground
2Output +
3 Output 0
AES/EBU Input & Output Connections
