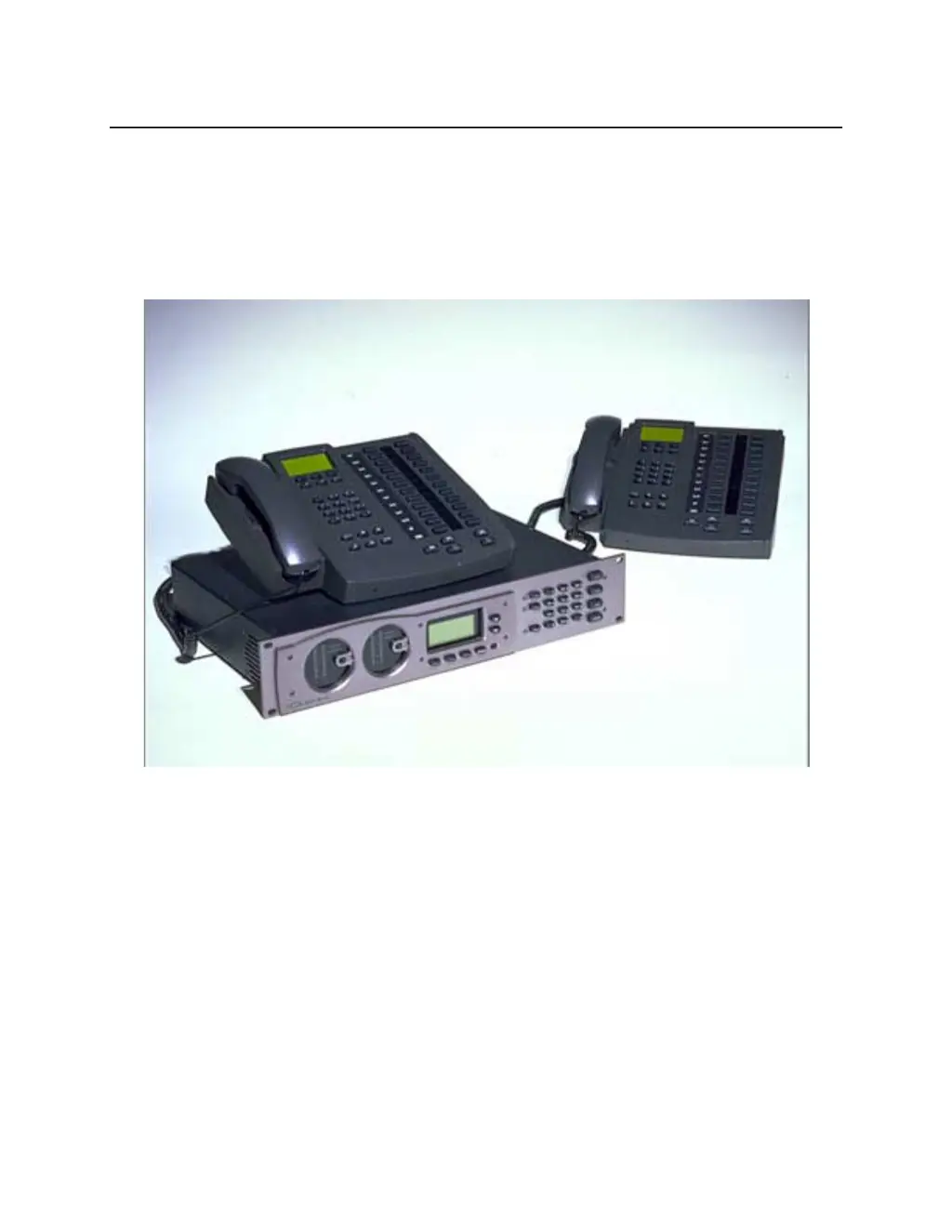

TELOS TWOx12

Advanced All Digital Dual Hybrid Multiline Broadcast Telephone System

USER’S MANUAL

Manual Version 1.0.1 for software version 1.0.1 and later

24 May, 2000

Table of Contents

Other manuals for Telos TWOx12

Tech Support2 pages

Questions and Answers:

G
griffithcolleenAug 2, 2025
What to do if Telos Telephone says Ready but calls do not complete?
- K
  Kenneth SharpAug 2, 2025
  If your Telos Telephone system says 'Ready' but calls don't complete, and either returns to 'Ready' or remains 'Waiting', it might be due to the ISDN lines being set up as Centrex service. Try dialing with a 9, 8, 7, or 6 before the number. If local calls work, but long-distance calls don’t go through, the TWOx12 usually displays 'Far end disconnect', or 'No route available' as the ISDN 'Cause' phrase.
K
Kenneth WilsonAug 12, 2025
How to fix Telos Telephone when it can't get ISDN Ready indication?
- K
  Kenneth HigginsAug 12, 2025
  If your Telos Telephone can't get an ISDN 'Ready' indication, it may be because the telephone company has not provided you with the ISDN protocol when the line was ordered. First, try disconnecting the ISDN circuit(s) in question and waiting a full 60 seconds (leave the TWOx12 on) and then reconnect the circuit(s).
M
Megan CampbellAug 23, 2025
What to do if I cannot upgrade Telos Telephone software?
- P
  Pam ToddAug 23, 2025
  If you cannot upgrade the Telos Telephone software via electronic download, you should contact Technical Support to request a flash SIMM be shipped with the desired software.

Telos TWOx12 Specifications

General

Power over Ethernet	Yes
Ethernet Ports	2
HD Audio	Yes
Wi-Fi	No
Display	Graphical LCD
Connectivity	Ethernet
Audio Codec Support	G.711, G.722
Supported Protocols	SIP, RTP

Summary

Introduction to the TWOx12 System

System Overview

Explains the purpose and capabilities of the TWOx12 system.

Features and Benefits

Details the key features and advantages of the TWOx12 system.

Why ISDN Makes Sense for Broadcast Talk Show Systems

Discusses the benefits of using ISDN for broadcast applications.

Installation Guide

Getting Started and Installation Checklist

Outlines initial steps, requirements, and provides a checklist for installation.

ISDN and Telco Circuit Connections

Covers ISDN technology, ordering, and connecting Telco circuits.

Studio Audio and Desktop Director Connections

Explains audio connections and how to connect Desktop Director control surfaces.

Power and Remote Control

Details AC power requirements and remote control port configurations.

System Configuration and Setup

System Programming and Initial Setup

Guides on programming telephone lines and initial system setup.

ISDN and Analog Line Configuration

Details ISDN and Analog phone line setup and verification.

Audio Levels and Testing

Covers setting audio levels and performing system tests for optimal performance.

Desktop Director General Operation

Overview, Icons, and Buttons

Provides an overview of the Desktop Director, its icons, and button functions.

LCD Screen and Menu Navigation

Details the LCD screen and the buttons used for menu navigation.

Telos Desktop Director - Guide for Call Screeners

Screeners' Operation Overview

Details general operation, icons, and buttons relevant to call screeners.

Telos Desktop Director - Guide for Talent

Talent Operation Overview

Introduces the system for talent, explaining icons and display operation.

Talent Buttons and Telephone Functions

Describes buttons and how to use the unit as a telephone for talent.

Detailed Configuration and Reference

Level Metering and Status Displays

Explains audio level metering and system status displays.

Advanced Configuration and Remote Control

Details advanced system settings and methods for remote control.

Audio Processing and Feedback Control

Covers system audio processing functions and feedback control.

Technical Data and Troubleshooting

System Overview, Software, and Firmware

Provides an overview of technical data, software, and firmware.

General and ISDN Troubleshooting

Offers general troubleshooting steps and specific ISDN problem solutions.

Desktop Director, Access, and ISDN Causes

Addresses DD troubleshooting, gaining access, and ISDN cause phrases.

System Specifications

General, ISDN, and Interface Specifications

Details general, ISDN connectivity, and interface specifications.

Telephone Coding and Audio Specifications

Lists telephone coding modes and detailed audio specifications.

Warranty and Application Caution

Appendices

SPID Formats and Cable Guide

Lists SPID formats and provides a cable guide.

Telephone Technology Tutorial and Glossary

Offers a tutorial on telephone technology and a glossary of terms.

ISDN BRI Ordering Guides

Provides guides for ordering ISDN BRI lines for Euro-ISDN and USA/Canada.
