TELOS TWOX12 USER’S MANUAL
INSTALLATION
CHAPTER 2 40
TWOX12 Desktop Director™ Ports (interface slot F)
PIN FUNCTION
1 Not used
2Not used
3
S Receive from Director +
4 S Transmit to Director +
5 S Transmit to Director -
6 S Receive from Director -
7* PS2 Power Source -
8* PS2 Power Source +(Top)
The TWOx12 has 2 Desktop Director™ ports in Interface slot F. Power is provided on pins 7 & 8 for
one Director per port. If more than one Desktop Director™ is required on a single port an external
power supply will be required (see below).
This interface is a standard modular RJ-45 style jack and is has the data pairs
exchanged as compared to an ISDN S interface or the Desktop Director. Therefore a
“straight through” (non-crossover) cable is used between the TWOx12 and the Desktop
Director as follows.

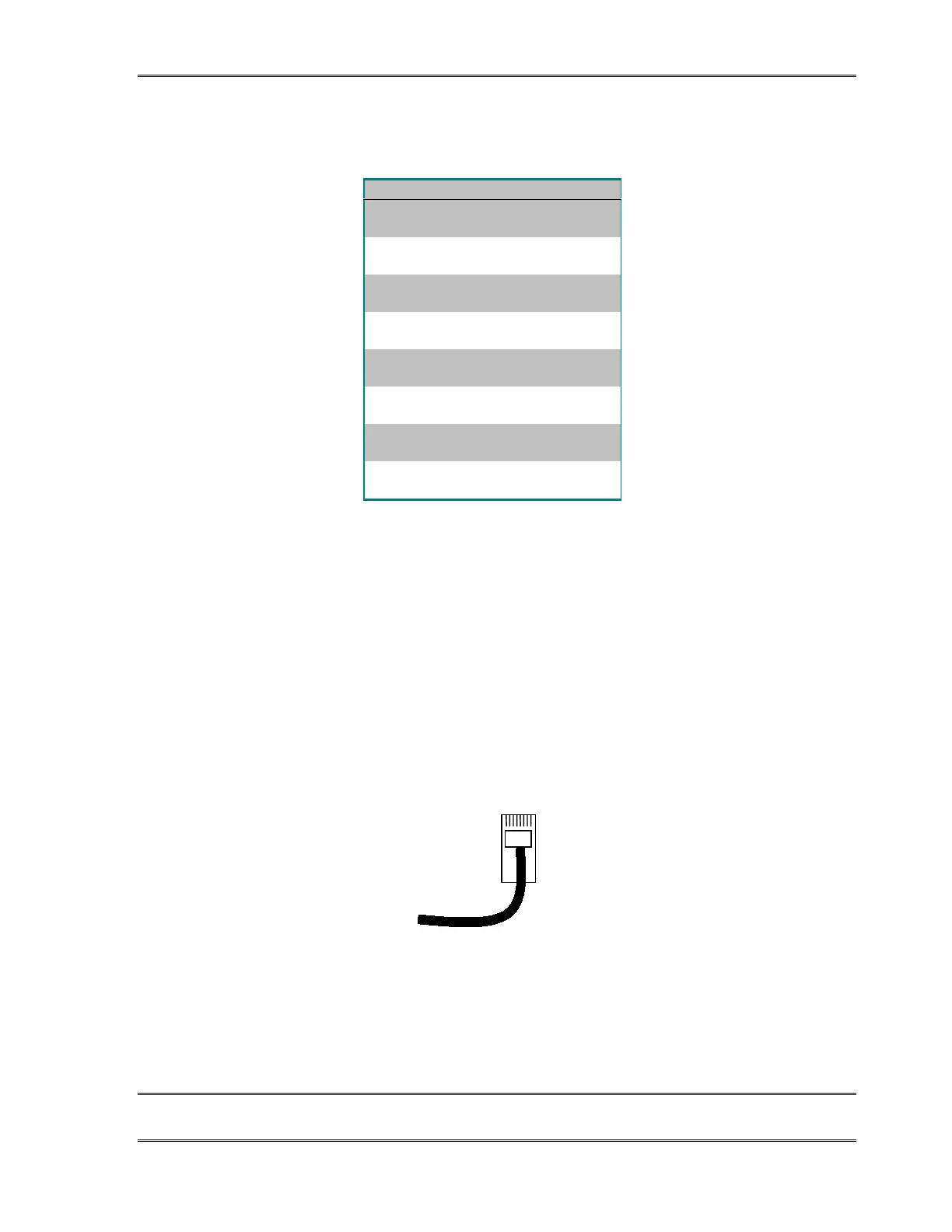

Desktop Director™ Cable
Note: Pin 1 is to the left when viewed as above (with pins facing you and at the
top).
