Connector J5
External power connector
Jumper JP3 to "ext"
Orient Pin 1 of
MSP430 device
Jumpers JP5 to JP10
Close 1-2 to debug in Spy-Bi-Wire mode
Close 2-3 to debug in 4-wire JTAG mode
D1
LED connected to P1.0
Jumper JP2
Open to disconnect LED
Connector J6
If the system is supplied from LDOI,
close JP4 and set JP3 to external
Connector JTAG
For JTAG Tool
Connector BOOTST
For Bootloader Tool
Jumper JP3
1-2 (int): Power supply from JTAG interface
2-3 (ext): External power supply
Jumper JP1
Open to measure current

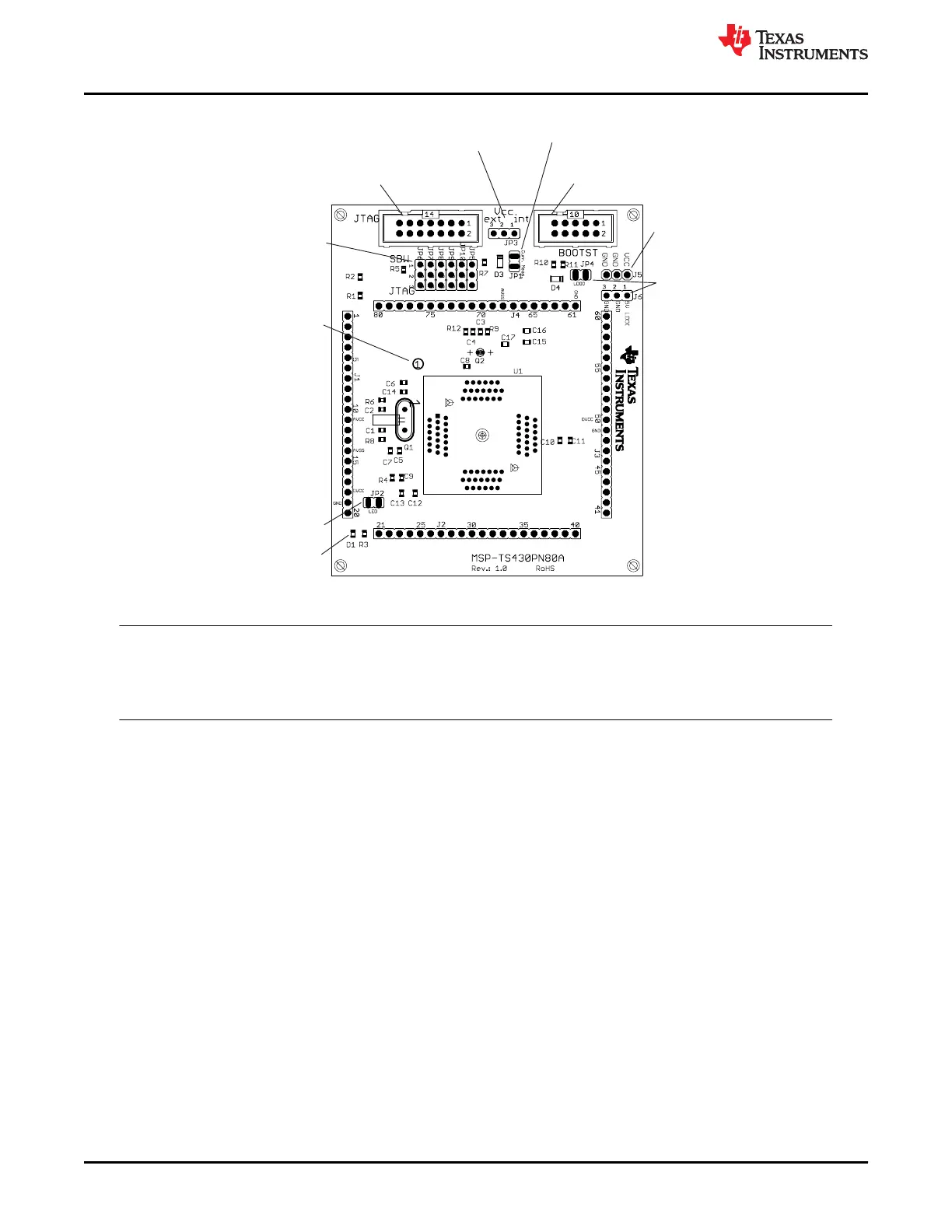

Figure B-61. MSP-TS430PN80A Target Socket Module, PCB
Note
For bootloader use, the BSL connector and only one of the resistors R10 or R11 must be populated. If
the board is supplied internally, R11 (0 Ω) must be assembled. If the board is supplied externally, R10
(0 Ω) must be assembled, and R11 must be removed.
