Connector J5
External power connector
Jumper JP3 to "ext"
Jumper JP1
Open to measure current
Jumper JP2
Open to disconnect LED
D1
LED connected to P1.0
Jumpers JP5 to JP10
Close 1-2 to debug in Spy-Bi-Wire mode
Close 2-3 to debug in 4-wire JTAG mode
Jumper JP3
1-2 (int): Power supply from JTAG interface
2-3 (ext): External power supply
Connector JTAG
For JTAG Tool
Connector BOOTST
For Bootloader Tool
Orient Pin 1 ofMSP430 device

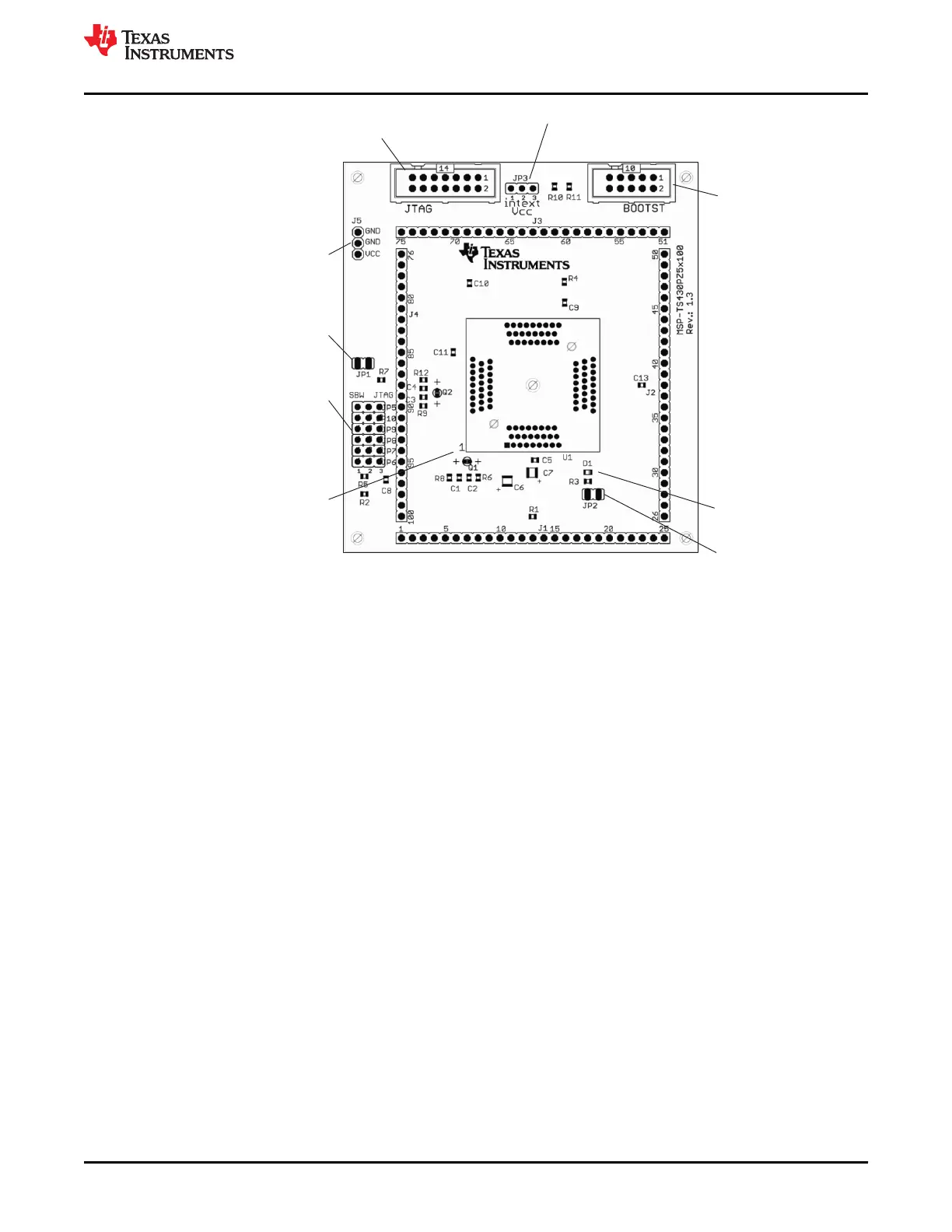

Figure B-81. MSP-TS430PZ5x100 Target Socket Module, PCB
