Texas Instruments MSP430 series User Manual

Orient Pin 1 of MSP430 device
D1
LED connected to P1.4
Jumper JP1
Open to measure current
Connector J5
External power connector
Jumper JP3 to “ext”
Connector JTAG
For JTAG Tool
Jumper JP4 to JP9
Close 1-2 to debug in Spy-Bi-Wire mode
Close 2-3 to debug in 4-wire JTAG mode
Jumper JP3
1-2 (int): Power supply from JTAG interface
2-3 (ext): External power supply
Jumper JP2
Open to disconnect LED
P1.4
14
1
2
GND GND VCC
1 2 3
123
158
916
17 2420
25 3230
Vcc
ext int
MSP-TS430RHB32A
Rev.: 1.0 RoHS
SBW
JTAG
1
Curr. Meas.
JTAG
R1
R3
C8
J5
JP1
JP2
R4
JP4
JP9
JP8
JP7
JP6
JP5
R5
D1
C9
JP3
C14
C13
C12
R2
R6
R8
R9
R10
R11
R12
R13
R14
J1
J2
U1
J3
J4
1 2 3 1 2 3 1 2 3 1 2 3 1 2 3

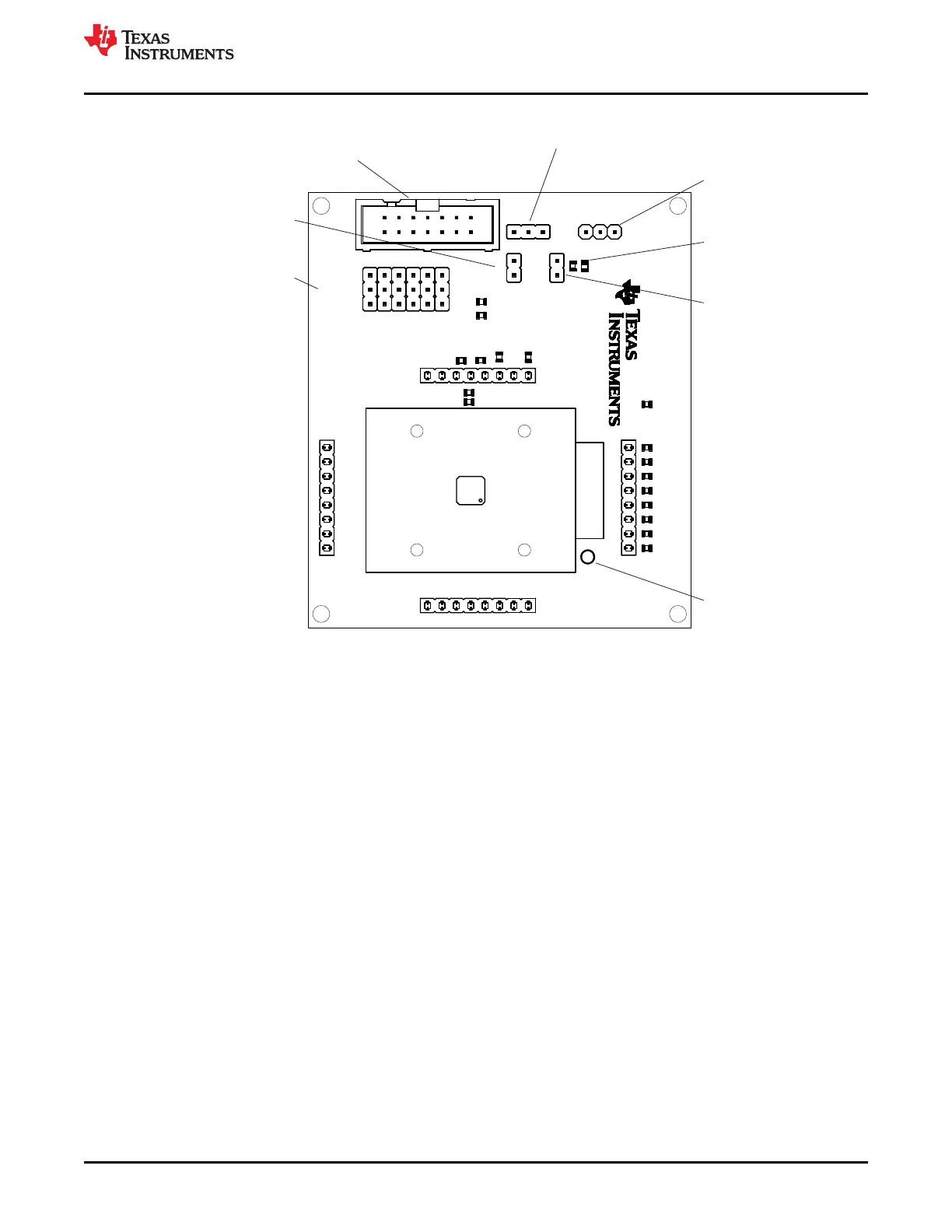

Figure B-25. MSP-TS430RHB32A Target Socket Module, PCB
www.ti.com
Hardware
SLAU278AG – MAY 2009 – REVISED DECEMBER 2020
Submit Document Feedback
MSP430™ Hardware Tools 67
Copyright © 2020 Texas Instruments Incorporated
