Texas Instruments MSP430 series

Jumper J4
Open to disconnect LED
D1
LED connected to P1.0
Orient pin 1 of MSP430 device
Jumper J5
Open to measure current
Connector J3
External power connector
Jumper JP2 to "ext"
Connector JTAG
For JTAG Tool
Connector BOOTST
For Bootloader Tool
Jumper JP2
1-2 (int): Power supply from JTAG interface
2-3 (ext): External power supply

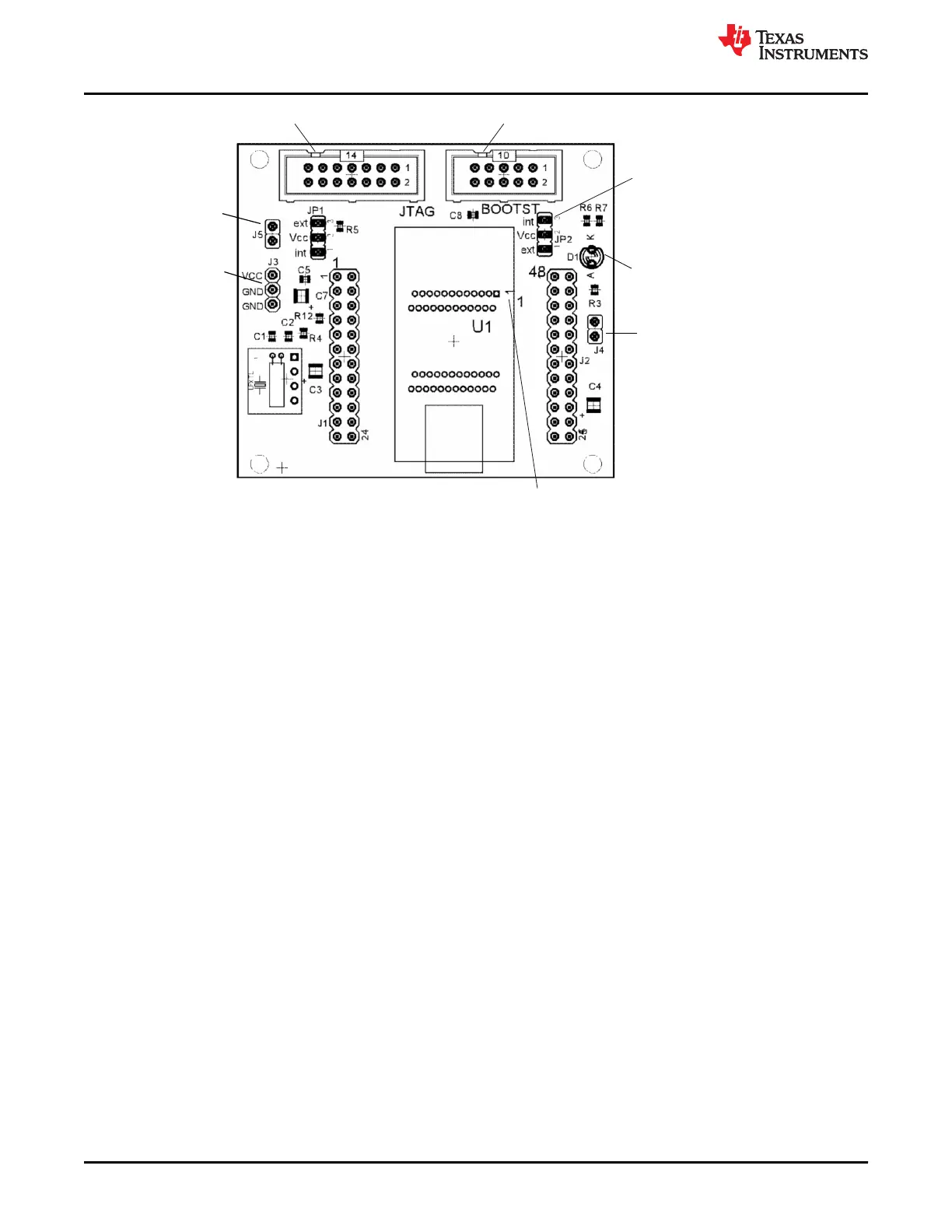

Figure B-35. MSP-TS430DL48 Target Socket Module, PCB
