Connector JTAG
For JTAG Tool
Connector BSL
For Bootloader Tool
Jumper J1
1-2 (Debugger): Power supply from JTAG Interface
2-3 (External): External power supply
Connector J2
External power connector
Jumper J1 to External
Jumpers JP5 to JP10
Close 1-2 to debug in Spy-Bi-Wire mode
Close 2-3 to debug in 4-wire JTAG mode
Jumper JP1
Open to measure current
BSL Interface Switches
Select which BSL interface to
connect to connector BSL
I2C pullup enable switch
Switch On to connect
I2C pullup resistors
Orient Pin 1 of
MSP430 device
Jumpers JP11 and JP12
Open to disconnect LEDs D1 and D2
D1, D2
LEDs connected to P1.0, P4.7

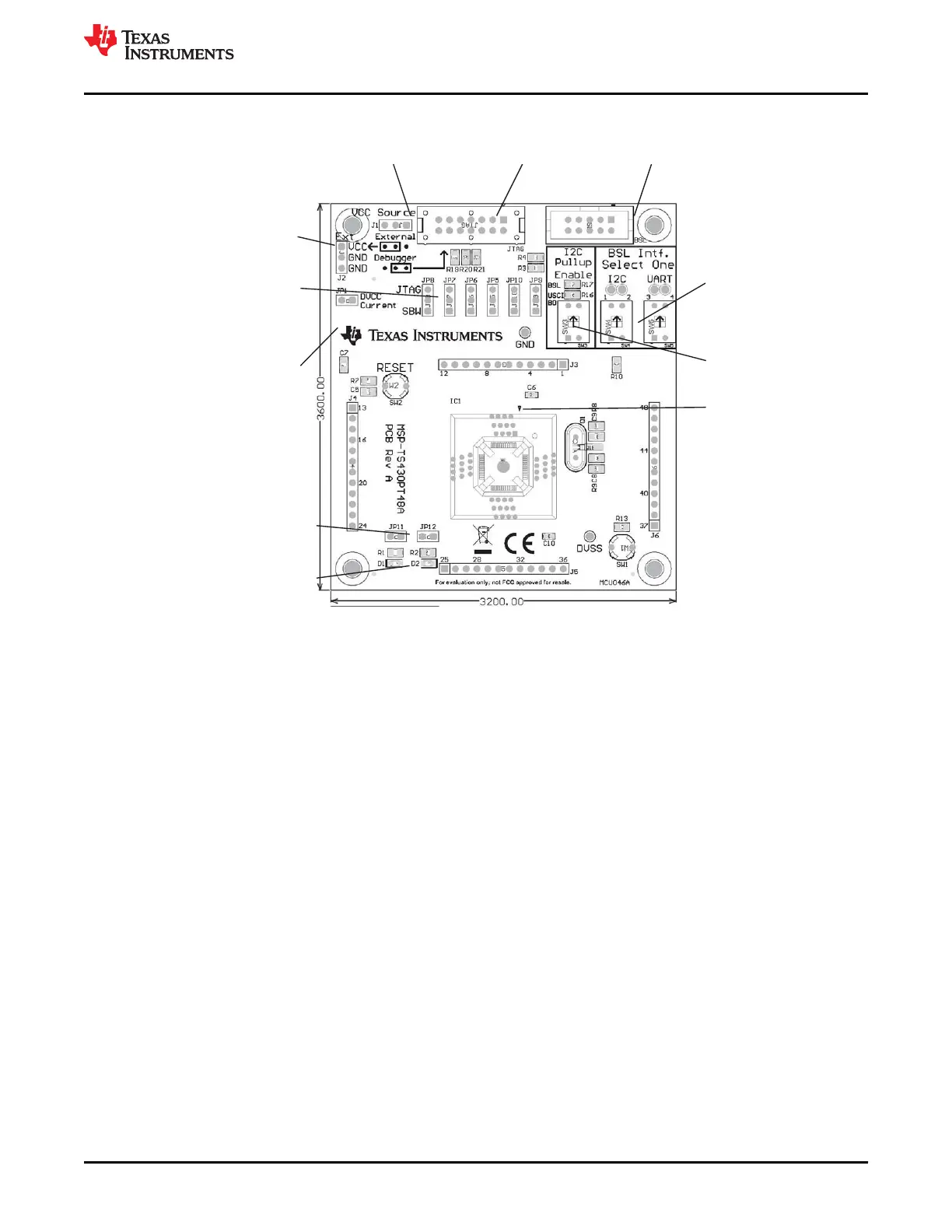

Figure B-39. MSP-TS430PT48A Target Socket Module, PCB
