Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.

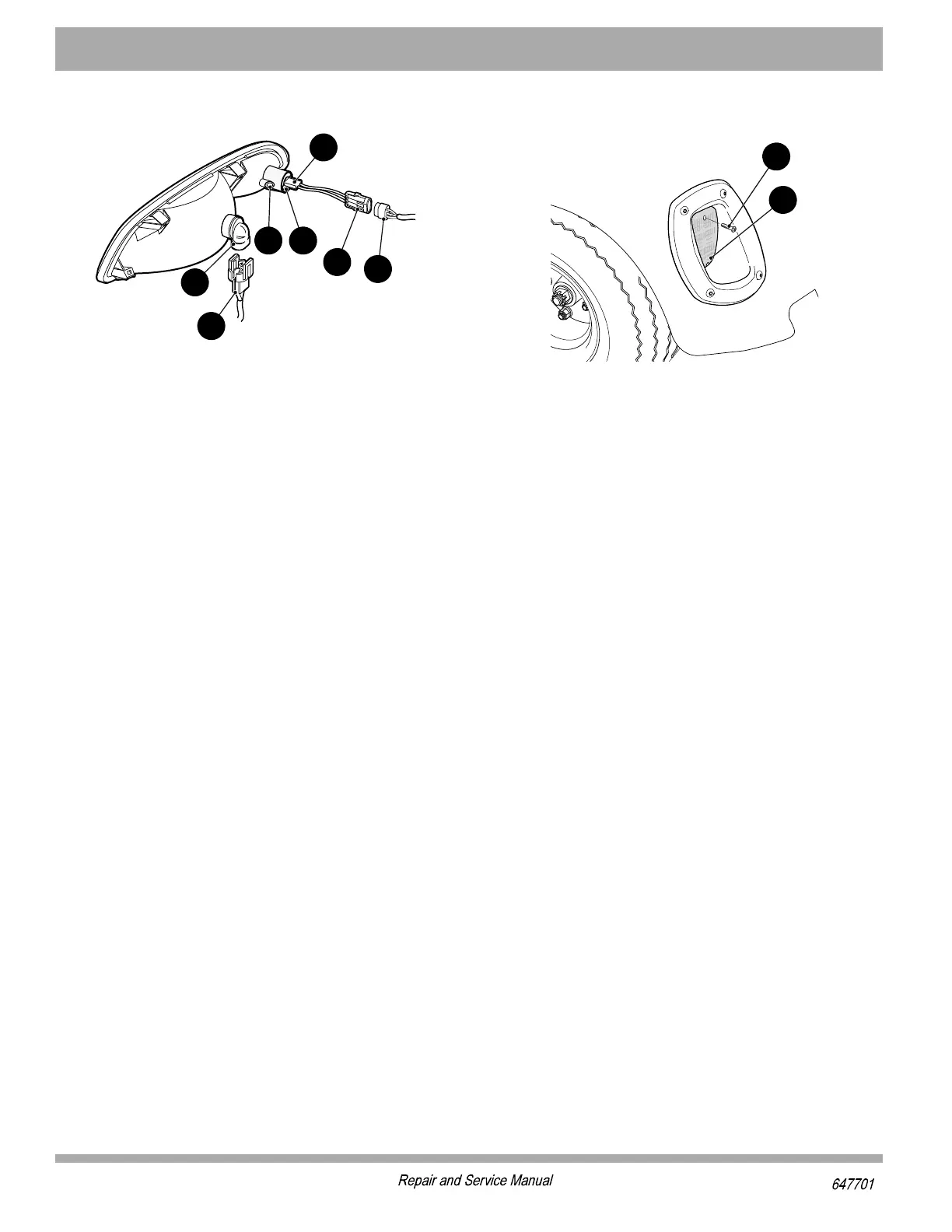

Figure 10 Headlight replacement
Turn Signal (if equipped)
Make sure that the vehicle key switch is in the OFF posi-
tion and the key has been removed.
• Remove the phillips head screw (7) and turn the
retaining collar (8) to align with the turn signal bulb
housing (9).
• Grip the turn signal bulb housing (9) and pull back-
ward to remove housing from the headlight assem-
bly.
• Remove the bulb from the housing and replace with
a new one.
• Push turn signal housing (9) into headlight assembly
firmly, making sure that it is seated completely.
• Turn the retaining collar (8) to secure the bulb hous-
ing and install the phillips head screw (7) to secure in
place.
Taillight (if equipped)
Make sure that the vehicle key switch is in the OFF posi-
tion and the key has been removed.
• Remove the two phillips head screws (10) that
secure the lens (11) to the taillight assembly.
• Remove the light bulb.
• Install the new light bulb.
• Install the lens (11) and secure in place with the two
phillips head screws (10).
Replacement bulbs are available from a local Distributor,
an authorized Branch or the Service Parts Department.
Figure 11 Taillight replacement
