BRAKES
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
103

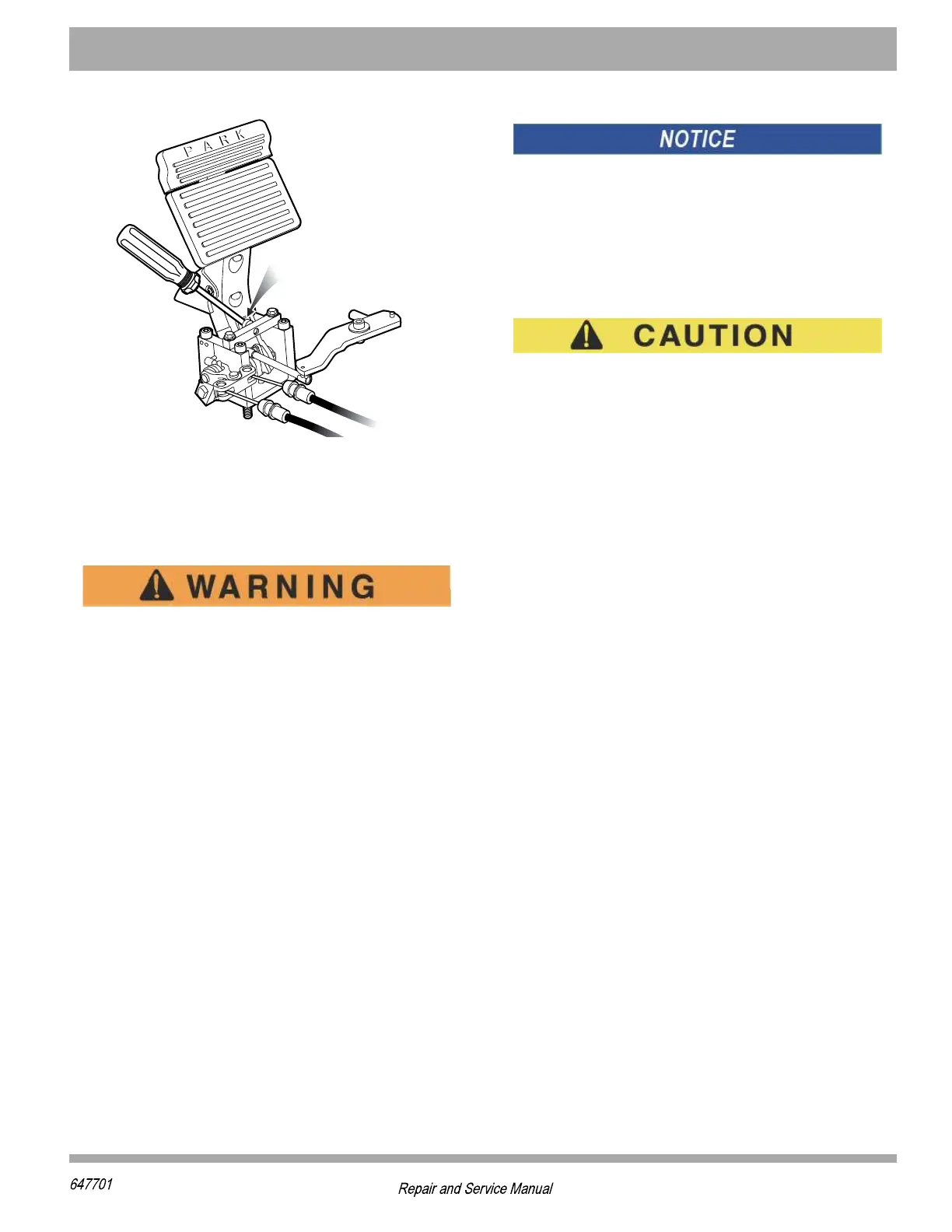

Figure 10 Free Travel Adjustment
The correct brake pedal free travel should be set to 3/4”
(1.9cm).
Press the brake pedal aggressively 4 - 6 times to estab-
lish known free travel.
All brake tests must be done in a safe location
with regard for the safety of all personnel.
In a safe location free from personnel and vehicles, drive
the vehicle at slow speed and apply the brakes aggres-
sively. As the brakes adjust and stop the vehicle effec-
tively, start driving at maximum speed and brake
aggressively 10 times.
At the passenger side brake adjust the free travel as
noted above if it has changed.
Drive again and brake aggressively 10 times.
Repeat the previous step(s) until the pedal free travel
does not change during the aggressive braking.
Perform the Periodic Brake Performance Test as
described and return the vehicle to service if brake perfor-
mance is satisfactory.
Brake Drum Removal and Installation
Remove the dust cap (1) to get access to the castellated
nut (2) and the cotter pin (3).
Remove the cotter pin and castellated nut as shown.
.
Do not apply the brake when removing the nut as the
shoes may not fully retract preventing removal of the
brake drum.
Remove washer (4).
Slide the brake drum (5) from the axle shaft. If required,
tap the drum with a plastic faced hammer to loosen it from
the axle shaft or use drum puller (P/N 15947G1).
Use care when raising the adjuster arm. Too much
force will damage the adjuster and require that both
wheel brake assemblies be replaced.
If the drum does not slide from the brake assembly, the
brake shoes must be retracted. Rotate the hub so that the
hole in the drum is directly over the brake mechanism.
Use a small straight blade screwdriver to lift the adjuster
arm above the star wheel.
Loosen the star wheel to retract the brake shoes and
remove the brake drum.
9WI7GVI[HVMZIVq
XSEHNYWXJSVTVSTIV*VII
8VEZIP4SWMXMSR
