WEATHER PROTECTION
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
125

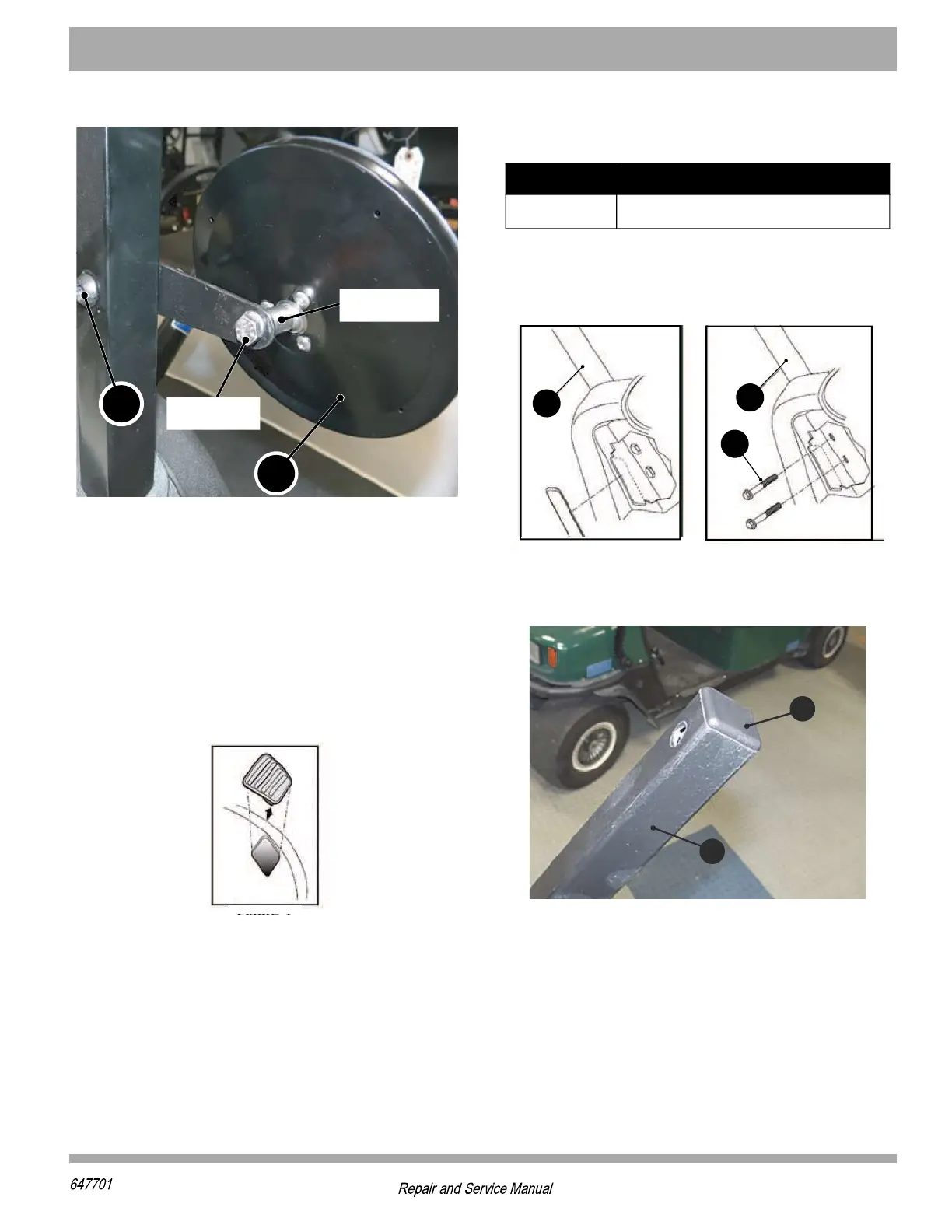

Figure 8 Mounting Mirror to Bracket
REAR VIEW MIRROR WITHOUT
CANOPY
Tool List Qty.
Socket, 15 mm ............................................................ 1
Ratchet........................................................................ 1
Ratchet Extension. ...................................................... 1
Wheel Chock............................................................... 4
• Remove driver side plugs from dash (Figure 9).
Figure 9 Dash plug removal
• Slide driver-side grommet approximately 12 in. (305
mm) up driver-side of front strut.
• Remove driver-side, passenger-side panels and Hex
head bolts from dash (Figure 10).
• Lower front strut (1) into openings revealed.
• Insert existing bolts (4) through upper and lower
holes, and secure to pre-installed weld nuts. Access
holes through openings revealed in previous steps.
• Tighten the bolt (4) to the torque value specified
below
• Replace dash panels.
• To install rear view mirror. See “Mirror Bracket Instal-
lation” on page 124. and See “Mounting Mirror to
Bracket” on page 124.
Figure 10 Side Panel removal form dash
• Place the cap (2) on the top of the strut (Figure 11).
Figure 11 Strut with end cap
)\MWXMRK&SPX
1SYRXMRK%VQ
Item Torque Specification
4 15 - 17 ft. lbs (20 - 23 Nm)
(VMZIV7MHI
4EWWIRKIV7MHI
