18
Repair and Service Manual
BODY
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
647701
Installation is reverse order of removal. Replace any worn
or damaged hardware as required.
Tighten the torx screws (11, 16, 18) to the torque value
specified below.
Front Splash Guard
Tool List Qty.
Notched Pry Bar ..........................................................1
Remove the upper and lower rocker panels, cowl, instru-
ment panel trim and instrument panel.
Remove two ratchet rivets (22) securing front splash
guard (21) to vehicle (Figure 9).
Installation is reverse order of removal. Replace any worn
or damaged hardware as required.

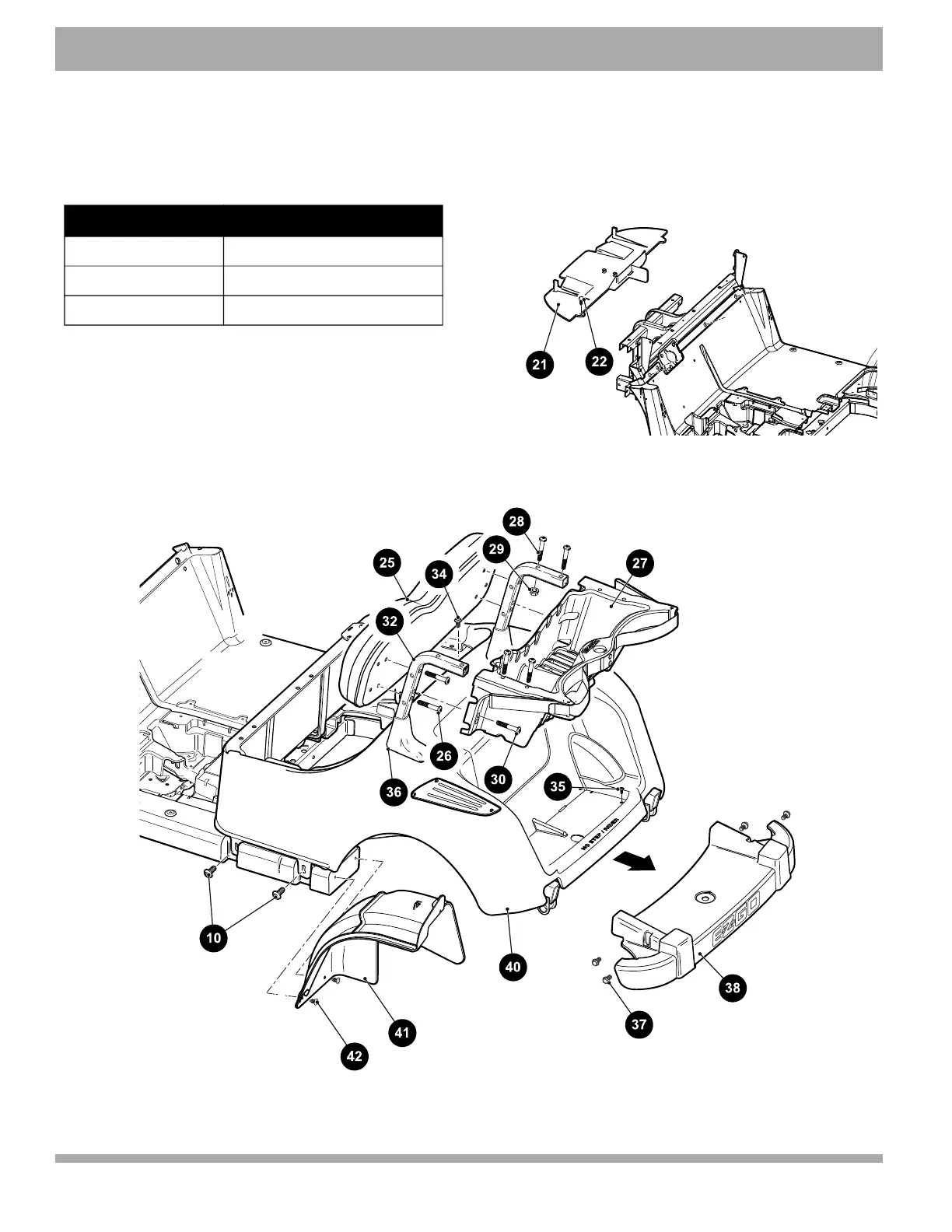

Figure 9 Front Splash Guard
Figure 10 Golf Car Rear Body, Sweater Basket, Rear Bumper and Fender Liner
Item Torque Specification
11 27 - 44 in. lbs. (3 - 5 Nm)
16 20 - 25 ft. lbs. (28 - 34 Nm)
18 13 - 16 ft. lbs. (18 - 22 Nm)
