ENGINE
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
47
ENGINE
GENERAL
For further engine information, see Engine Shop Rebuild
and Service Parts Manual.
FOUR CYCLE ENGINE
Engine Specifications
Engine Model .................................................. FJ400-D
Type..................................Four Cycle, Overhead Valve
Number Of Cylinders...................................................1
Displacement......................................................401 cc
Rated Horsepower................................................13 hp
Spark Plug Type......................................NGK BPR2ES
Spark Plug Gap.................. .028” - .031" (.70 - .80 mm)
Cooling..............................................Forced Air Cooled
Oil Filter.........................Cartridge Type Full Flow Filter
Oil Pump..........................Positive Displacement Pump
Engine Description
The engine is an air cooled, 4-stroke, OHV, single cylin-
der gasoline engine. It incorporates a pressure fed oil
pump with a cartridge type full flow oil filter and a counter
rotating balance shaft.
POWERTRAIN MAINTENANCE
Access the power-train require raising or removing the
seat. Some service procedures require the vehicle to be
lifted.
Refer to lifting the vehicle in the SAFETY section for
proper lifting procedure and safety information.
Checking the Oil Level
Do not overfill engine. Too much oil may cause
engine to smoke or cause spark plug fouling.
Vehicles with the leaf springs mounted on top of the rear
axle will have an oil dipstick with a H stamped into the
top.
The oil should be checked with the engine warm. The
vehicle should be on a level surface with the parking
brake engaged (Figure 1). Allow adequate time for oil to
drain into the crankcase before checking.
Remove the dipstick and wipe off the entire area with a
lint free cloth.

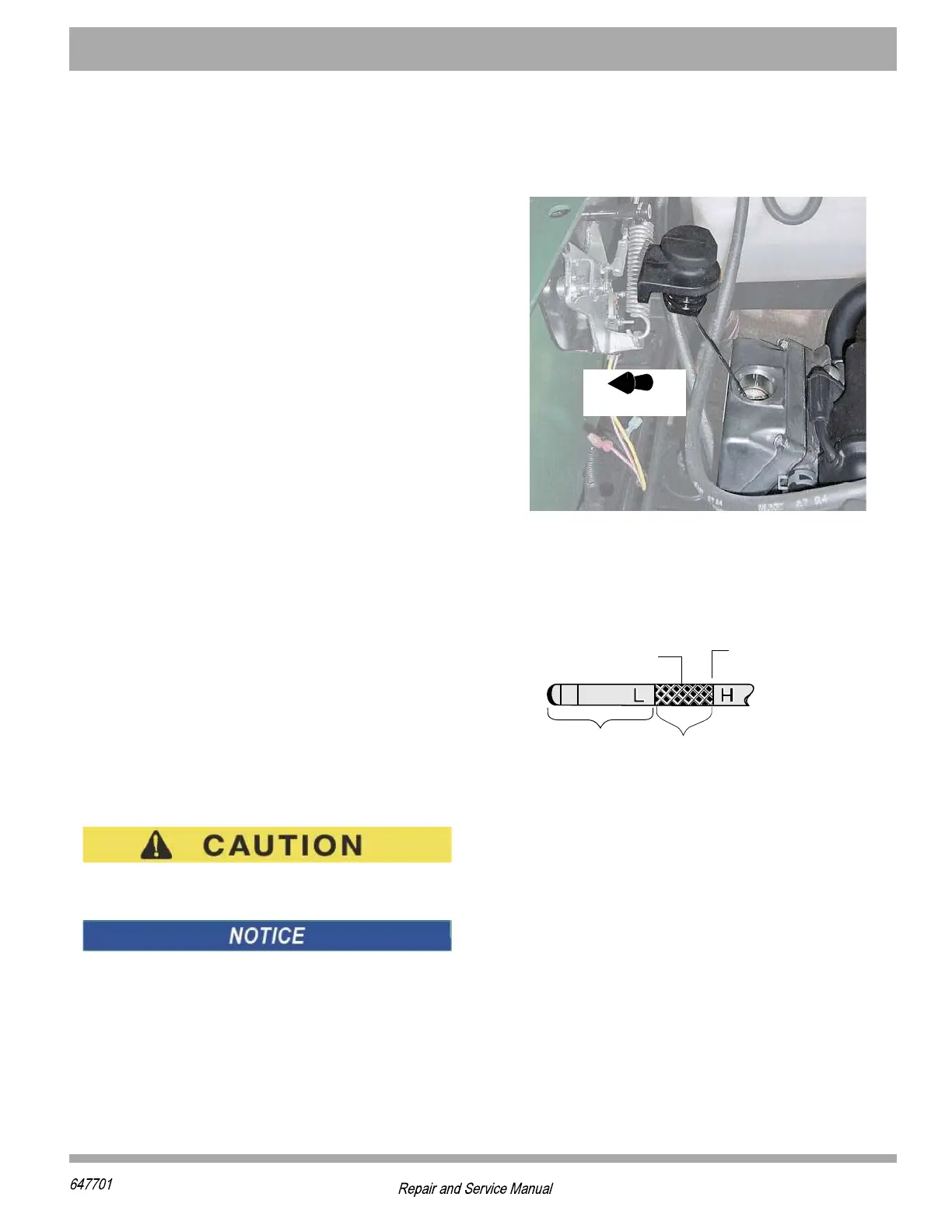

Figure 1 Oil Dipstick
Insert the dipstick fully into the dipstick hole and remove.
Examine the level of the oil on the dipstick.
Figure 2 Check Oil Level on Dipstick
The engine can be operated safely as long as oil is within
the safe operating range as indicated on the dip stick. Do
not operate vehicle if oil level is below the safe area
indicated on the dipstick.
Oil should be added to bring the level into the safe operat-
ing range. Remember that oil expands as it gets hot. Do
not overfill (Figure 2). Check that the oil cap is firmly in
place.
The oil dipstick/fill cap must be in place before operating
the engine. Failure to install the dipstick/fill cap will result
in oil becoming contaminated and/or oil being discharged
into the engine compartment.
*VSRXSJ:ILMGPI
1E\MQYQ3MP0IZIP
*SV,SX)RKMRI
(S2SX3ZIVJMPP
*MPP'SPH)RKMRI
8S8LMW4SMRX
7EJI
3TIVEXMRK6ERKI
,SX)RKMRI
%HH3MP
