22
Repair and Service Manual
BODY
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
647701
11. Remove two torx head bolts (28) from the bagwell
floor (Figure 17).

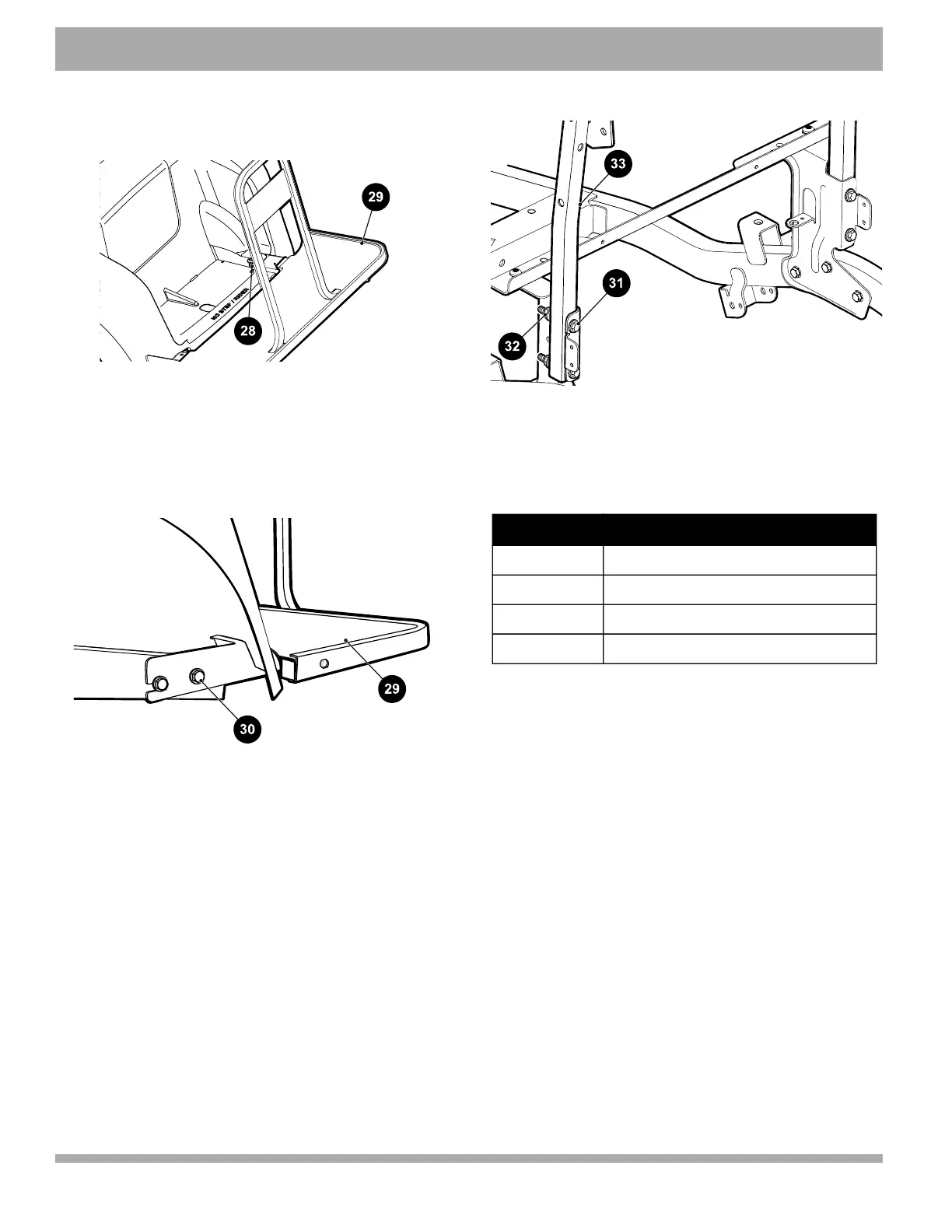

Figure 17 Rear Facing Seat Foot Rest
12. Loosen four hex head bolts (30). Support the rear
foot rest (29) before removing the bolts (30) closest
to the rear of the vehicle completely. When the bolts
are removed the foot rest assembly (29) may be
removed from the vehicle by sliding it backward and
off of the two remaining bolts (Figure 18).
Figure 18 Foot Rest Removal
13. Remove four hex head bolts (31) and nuts (32) that
secure the seat back support (33) to the frame. Slide
the seat back support up until it clears the rear body.
Figure 19 Seat Back Support
Installation is reverse order of removal. Replace any worn
or damaged hardware with new as required.
Tighten the screws (28, 25), bolts (10), to the torque value
specified below.
FLOORBOARD
Tool List Qty.
Torx Bit, T-50................................................................1
Ratchet ........................................................................1
Insulated Wrench, 1/2”.................................................1
Torque Wrench, ft. lbs..................................................1
Before the floorboard can be removed, the lower and
upper rocker panels, floormat, pedal cover, accelerator
and brake pedal assemblies, instrument panel with trim,
seat back, sweater basket and rear body must be
removed. If the vehicle is equipped with a canopy and
windshield or a 2 + 2 rear facing seat, these must also be
removed.
1. Remove the two torx screws (44) securing the front
seat support frame (45) to the floorboard (48) (Figure
20).
2. Remove two torx socket head cap screws (46) and
washers (47) that secure the floorboard (48) to the
vehicle frame
Installation is reverse order of removal. Replace any worn
or damaged hardware with new as required.
Item Torque Specification
28 8 - 9 ft. lbs. (10 - 12 Nm)
10 16 - 20 ft. lbs (19 - 24 Nm)
25 15 - 19 ft. lbs (18 - 22 Nm)
22, 30 32 - 36 ft. lbs. (38 - 43 Nm)
