BODY
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
21
Repair and Service Manual
647701
2 + 2 REAR FACING SEAT AND FOOT
REST
Tool List Qty.
Torx Bit, T-45 IP........................................................... 1
Socket, 15 mm ............................................................ 1
Ratchet........................................................................ 1
Torque Wrench, ft. lbs. ................................................ 1
Wrench, 15 mm........................................................... 1
1. Remove four hex head bolts (10) that secure the
seat bottom (11) to the hip restraints (12) (Figure 12).
2. Lift the seat bottom (11) up and remove it from the
vehicle.
3. Loosen the torx head bolts (23) and nuts (22) that
secure the seat back mounting brackets and hip
restraint to the seat back support (24) (Figure 15).

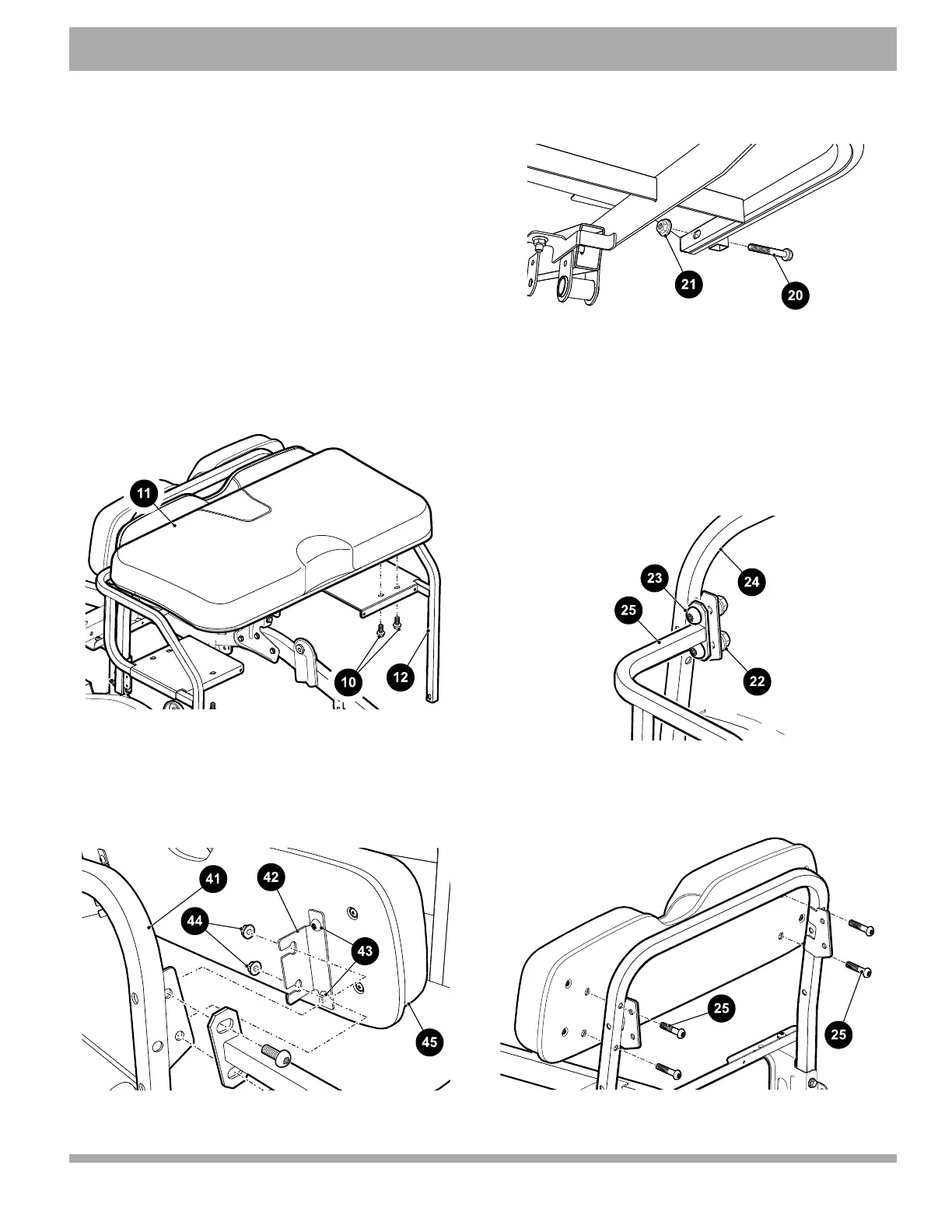

Figure 12 Rear Facing Seat Bottom
4. Slide the seat back assembly (45) with the brackets
attached towards the back of the vehicle and remove
it from the vehicle (Figure 13).
5. To separate the seat back assembly (45) from the
mounting brackets (42), remove two torx screws (43)
from each bracket (42).
Figure 13 Rear Facing Seat Back
6. Remove the hex head bolt (20) and nut (21) from the
lower leg of the driver side hip restraint (Figure 14).
Figure 14 Rear Facing Seat Hip Restraint
7. Remove the hex nuts (22) from the torx head bolts
(23) that secure the hip restraint (25) to the seat back
support (24).
8. Hold or support the hip restraint (25) before remov-
ing the torx head bolts (23), when these bolts are
removed the hip restraint is free from the vehicle
(Figure 15).
9. Repeat steps 6 - 8 for the removal of the passenger
side hip restraint.
Figure 15 Upper Hip Restraint Bolts
10. Remove four torx head bolts (25) that secure the
front seat back to the seat back support bracket (Fig-
ure 16).
Figure 16 Front Seat Back
