FUEL SYSTEM
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
63

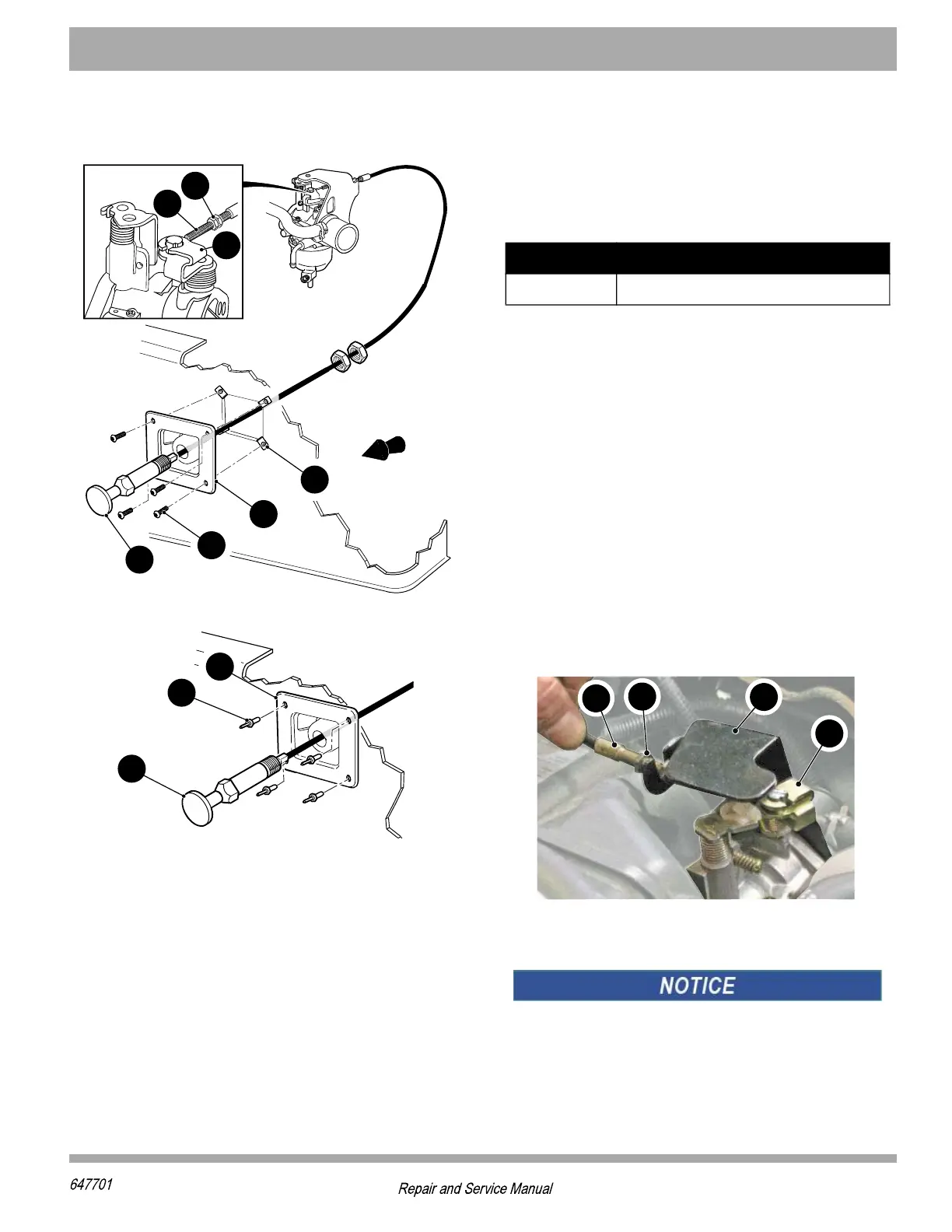

Figure 6 Choke Cable Attachment
Choke Adapter Installation
Tool List Qty.
Pop Rivet Tool ............................................................. 1
Phillips Screwdriver ..................................................... 1
For vehicles manufactured until January 2, 2016: To
remove the choke adapter (8), drill out the four rivets (11).
To install the new choke adapter (8), install the barrel clips
(7) on to the four sides of the cutout provided on the front
of rear body and install the new choke adapter (8) using
the screws (9) as shown (Figure 6).
For vehicles manufactured from January 3, 2016: To
remove the choke adapter (8), remove the four screws
(9), securing the choke adapter (8). Installation is the
reverse order of removal. Replace any worn or damaged
hardware.
Tighten the screws (9) to the torque specified below.
FUEL SYSTEM COMPONENT SER-
VICE AND REPLACEMENT
Choke Cable and Housing Removal
Tool List Qty.
Open End Wrench, 10 mm ..........................................2
Open End Wrench, 7/8” ...............................................1
Loosen the nuts (3) that secure the choke cable to the
choke cable bracket (5) (Figure 6) (Figure 7). Lift the
choke cable and housing (2) clear of the bracket and
position it so that the bullet end of the choke cable can be
removed from the carburetor choke plate (1).
At the seat panel, remove the nut (6) securing the outer
cable to the bezel (8). Slide the nut, off the end of the
choke cable and pull the choke cable out through the seat
wrap. Remove the choke cable bezel (8) from the seat
panel (Figure 6).
Figure 7 Choke Cable and Housing
Choke Cable and Housing Installation
Hardware that is removed must be installed in its origi-
nal position unless otherwise specified. If the torque val-
ues are not specified, refer to the Torque Specifications
table in the GENRAL INFORMATION AND ROUTINE
MAINTENANCE section.
*VSRXSJ:ILMGPI
*36:),-'0)71%29*%'896)(*631
.%29%6=
*36:),-'0)71%29*%'896)(928-0
.%29%6=
Item Torque Specification
9
27 - 35 in. lbs. (3 - 4 Nm)
