ENGINE
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
51
Adjusting the Belt
Loosen the two pivot bolts (13) and nuts (14) on the
starter/generator. Hold the lower nut (11) and loosen the
upper nut (12) on the starter/generator adjusting bolt.
Move the lower nut (11) up or down the adjustment bolt
until proper belt tension is achieved. Hold the lower nut
(11) in place and tighten the upper jam nut (12) against it
the lower nut to the specified torque value (Figure 12).
Using a socket and open end wrench, tighten the starter/
generator pivot bolts (13) and nuts (14) to the torque
value specified below.

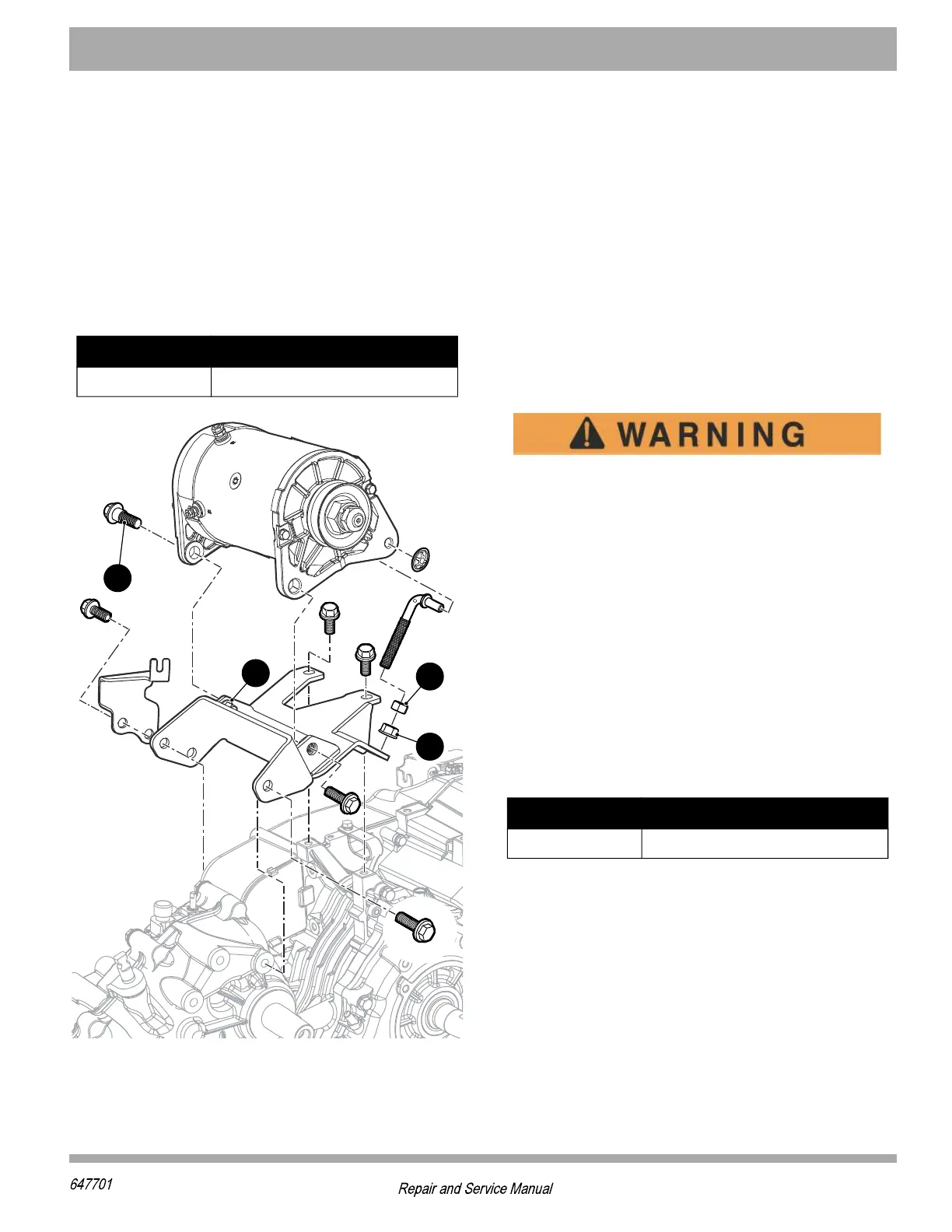

Figure 12 Starter/Generator
STARTER/GENERATOR REPLACE-
MENT
Tool List Qty.
Wrench, 8 mm .............................................................1
Wrench, 10 mm ...........................................................1
Wrench, 13 mm ...........................................................1
Wrench, 15mm ............................................................1
Wrench, 14 mm ...........................................................2
Ratchet ........................................................................1
Socket, 13 mm.............................................................1
Socket, 15 mm.............................................................1
Torque wrench, ft. lbs. .................................................1
Insulated Wrench, 1/2”.................................................1
To decrease the risk of personal injury, discon-
nect negative (-) battery cable before begin-
ning starter/generator removal.
Disconnect the negative (-) battery cable.
Remove the wires connected to the starter/generator.
Loosen the jam nut (11) and the adjusting nut (12) secur-
ing the starter/generator adjuster until the starter/genera-
tor belt can be removed from the drive clutch. Remove
the starter/generator pivot bolts (13) and lift starter/gener-
ator from the vehicle (Figure 12).
Install the starter/generator pivot bolts (13) and hardware
loosely in place and install the belt. Tighten a new starter/
generator belt per STARTER/GENERATOR BELT TEN-
SION earlier in this section.
Tighten jam nut (12) and the pivot bolts (13) and nuts (14)
to the torque value specified below.
Install the wires as shown below and tighten the terminals
firmly into place. Reconnect the battery.
Item Torque Specification
12, 14 30 - 35 ft. lbs. (40 - 48 Nm)




Item Torque Specification
12, 14 30 - 35 ft. lbs. (40 - 48 Nm)
