ENGINE
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
The air filter assembly on the vehicle is a dry unit. Do
not use oil on the filter element or any part of the unit.
To access the air filter, raise the seat. Unsnap two clips
that secure the cover (2) to the canister (1) and remove
the cover. Remove the air filter element (3) and clean the
inside of the cover, canister and dust collector (4) (Figure
9).
Inspect the air filter element (3) and replace it in accor-
dance with the PERIODIC SERVICE SCHEDULE.
Install the air filter element (3) and install the cover (2). Be
sure the cover is properly seated and all clips are fas-
tened securely.
Clean the Air Filter Element
Do not use compressed air to clean the air filter;
doing so will damage the filter which may result in
damage to the engine.
If the element is in acceptable condition, loose dirt may be
removed by tapping the filter lightly. DO NOT use oil on
the filter element or any part of the unit.
Install the element in the same way it was removed, being
sure that the cover clips are fastened securely.
STARTER/GENERATOR BELT TEN-
SION
Tool List Qty.
Belt Tension Gauge ..................................................... 1
Wrench, 3/4” ................................................................1
Wrench, 9/16” ..............................................................2
Ratchet ........................................................................ 1
Socket, 3/4” .................................................................1
The starter/generator belt tension should be checked
after the first 15 - 20 hours and set to 75 - 80 lbs. (34 - 36
kg).
At no time during installation of belt, should the
belt tension exceed 160 lbs (73 kg).
During installation, the belt must not be rolled over
the edges of the starter/generator or drive clutch
pulleys. Excessive stretch in belt may cause cord
failure.
A loose belt can cause audible vibration and squeal.
Tighten a new starter/generator belt to 110 - 130 lbs. (50 -
59 kg) tension when a gauge is applied half way between
the two pulleys (Figure 10).

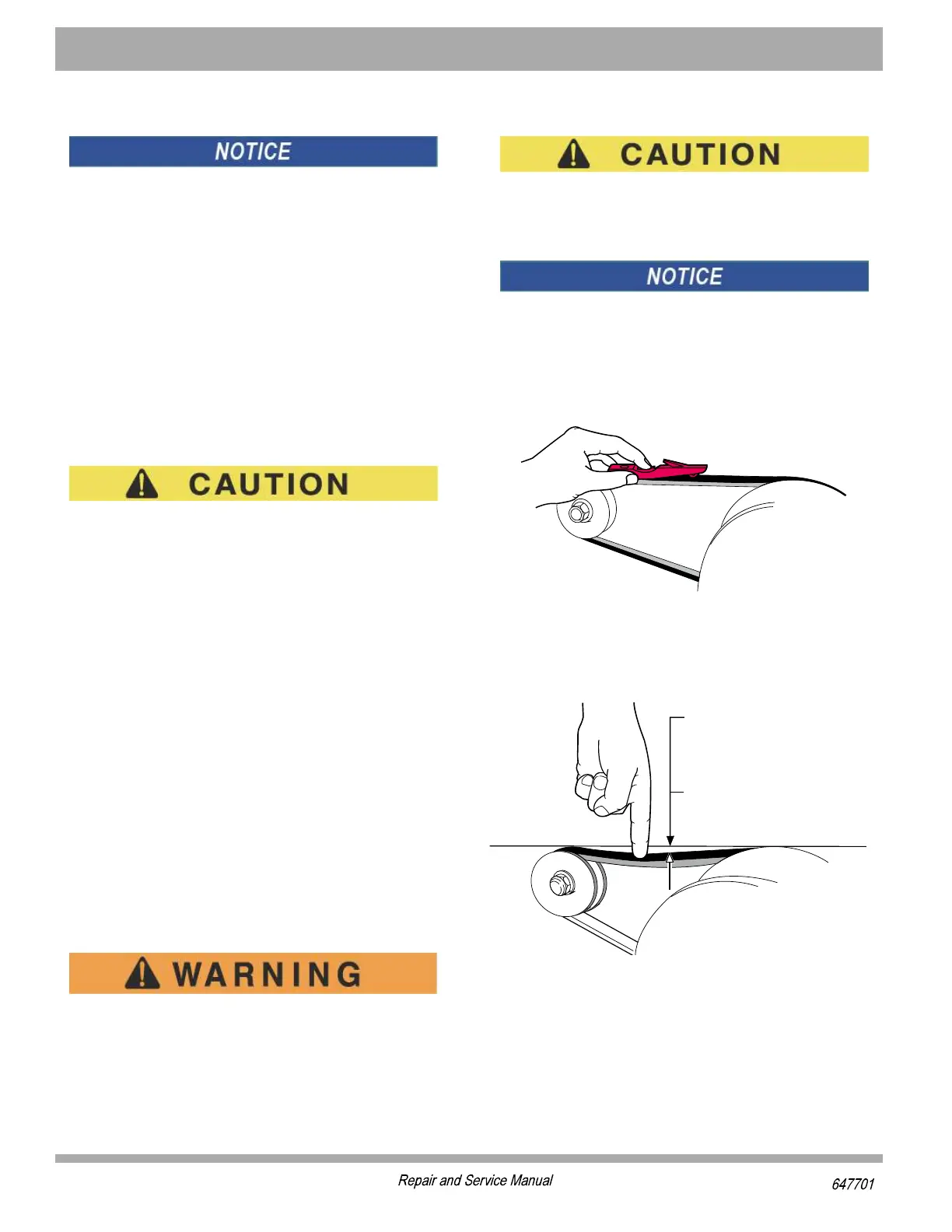

Figure 10 Checking Belt Tension with Gauge
A new belt may be checked manually. A maximum deflec-
tion of 3/8” (10 mm) is acceptable (Figure 11).
Figure 11 Checking Belt Tension with Finger
Tighten an existing belt to 75 - 80 lbs. (34 - 36 kg) tension
using the same technique and inspect for cracking or
wear. A maximum deflection of 1/2” (13 mm) acceptable.
GQ1E\MQYQ
(IJPIGXMSR2I[&IPX
GQ1E\MQYQ
(IJPIGXMSR)\MWXMRK&IPX
