WEATHER PROTECTION
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
The rated capacity of the trailer must be more than the
weight of the vehicle (see GENERAL SPECIFICATIONS
for vehicle weight) and load. Engage the parking brake
and secure the vehicle to the trailer with ratchet tie
downs.
WINDSHIELD
Tool List Qty.
Torx Bit, 50 IP ..............................................................1
Ratchet ........................................................................ 1
Torque Wrench, in. lbs.................................................1
Rubber Mallet ..............................................................1
Flat Screwdriver........................................................... 1

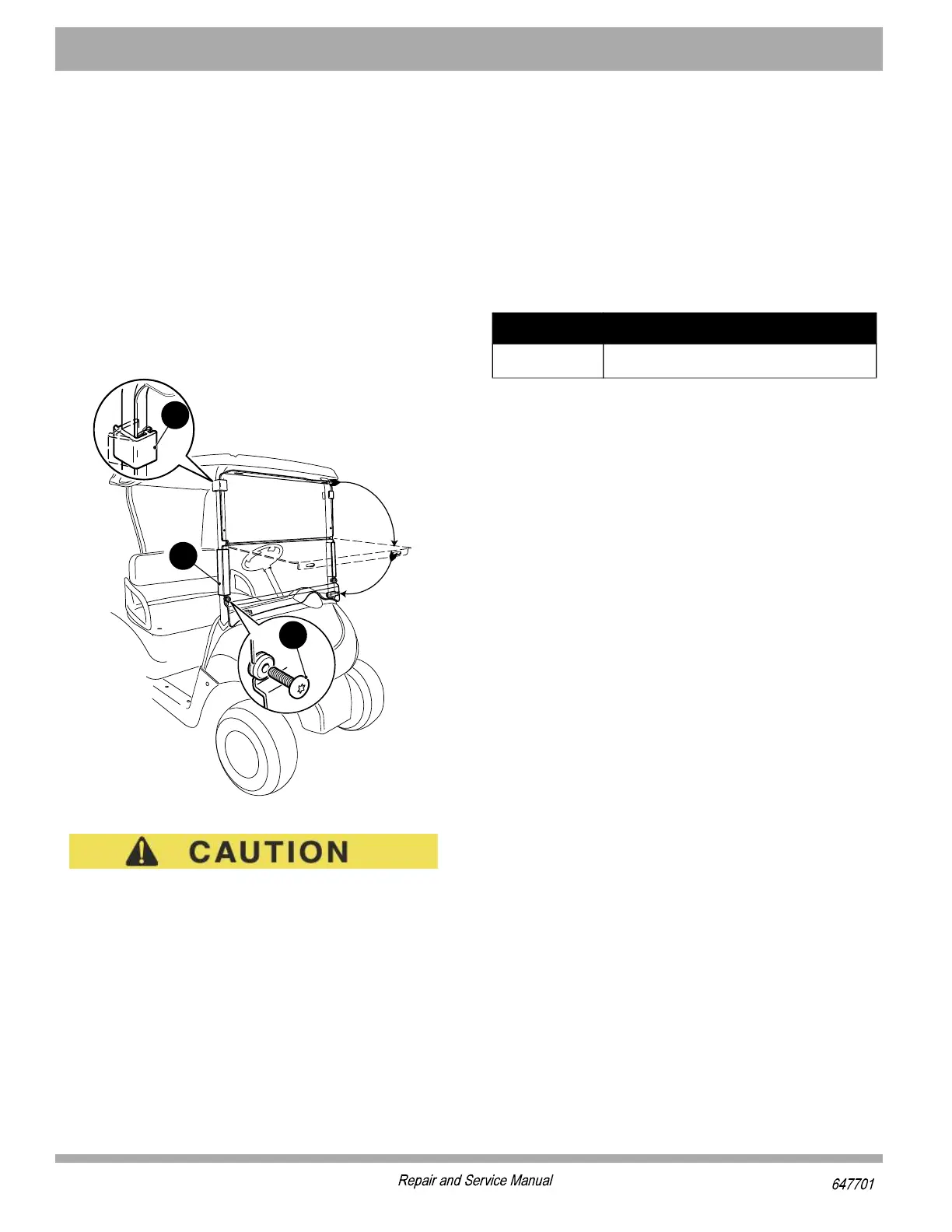

Figure 2 Windshield
Do not over tighten or compress the windshield
grommets when installing on windshield.
1. Remove two screws (1) from the lower portion of the
windshield (Figure 2).
2. Release the rubber latches (2) and fold the top por-
tion of the windshield down.
3. Carefully pull the outer edge of the windshield sash
(3) forward and slide the flat screw driver into the
opening. Pull towards the front of the vehicle sepa-
rating the sash from the front strut. Repeat for the
other side.
4. To reinstall the windshield, hang the windshield on
the front strut using the rubber latches (2) on the top
portion of the windshield.
5. Align the holes in the lower section with the holes in
the front strut. Alignment guides (long thin screw-
driver or bolts) may be helpful in keeping the holes
aligned as the windshield is carefully pushed onto
the front strut.
6. Install two screws (1) and tighten the screws (1) to
the torque value specified below.
GOLF CAR TOP
Tool List Qty.
Socket, 15 mm.............................................................1
Ratchet ........................................................................1
Ratchet Extension........................................................1
Wrench, 15 mm............................................................1
Torque Wrench, in. lbs. ................................................1
Flat Screwdriver...........................................................1
If vehicle is equipped with a windshield remove it before
working with the top.
Removal
1. Remove six hex nuts (1) and the hex bolts (2) secur-
ing the top to the struts (Figure 3).
2. Lift the top off of the struts and set it aside.
3. Remove the access cover (5) by sliding a flat screw-
driver under the edge of it and prying it away from
the instrument panel, repeat for the other side.
4. Remove the two hex bolts (6) from each side that
secure the front strut to the vehicle, lift the strut up
until it clears the instrument panel and cowl.
5. Remove the rubber grommets (7) from the front strut
holes if they did not come off with the struts.
6. Remove four hex nuts (3) from inside the sweater
basket then remove the four hex bolts (4) that slide
through the rear top strut, lift the strut up to clear the
sweater basket. Repeat for the other side
Installation
1. Place the rubber grommets (7) into the holes in the
front cowl making sure that they are oriented prop-
erly for each side. The grommet should follow the
contour of the body.
2. Position the front strut with the bend angled to the
rear of the vehicle, slide the strut through the grom-
mets and into position. Looking through the access
Item Torque Specification
1 124 - 142 in. lbs (14 - 16 Nm)
