ELECTRICAL
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
The engine can be stopped by turning the key switch to
the OFF position. When the accelerator pedal is released,
the limit switch contacts open and the ignition circuit is de-
energized.

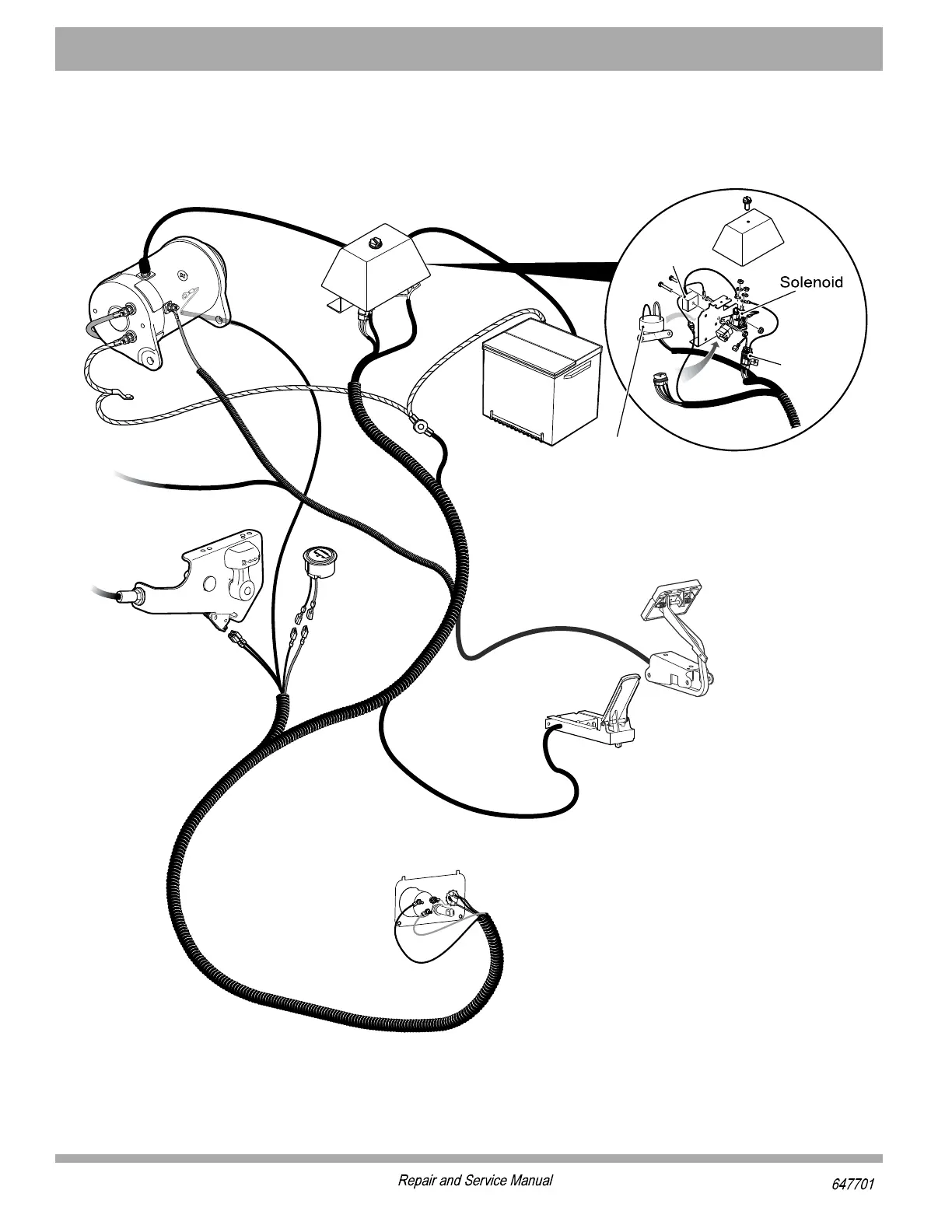

Figure 1 Electrical System (Physical Location)
