Sample mapping for three samples per subarray
Load 3
A
C
E
G
I
K
M
O
Sample 1
Sample 49
Sample 97
Sample 48
Sample 96
Sample 144
OpenArray Plate
Sample Plate
Sample 1
Sample 48
Sample 49
Sample 96
Sample 97 Sample 144
Load 1 Load 2
Subarray A1
Subarray D12

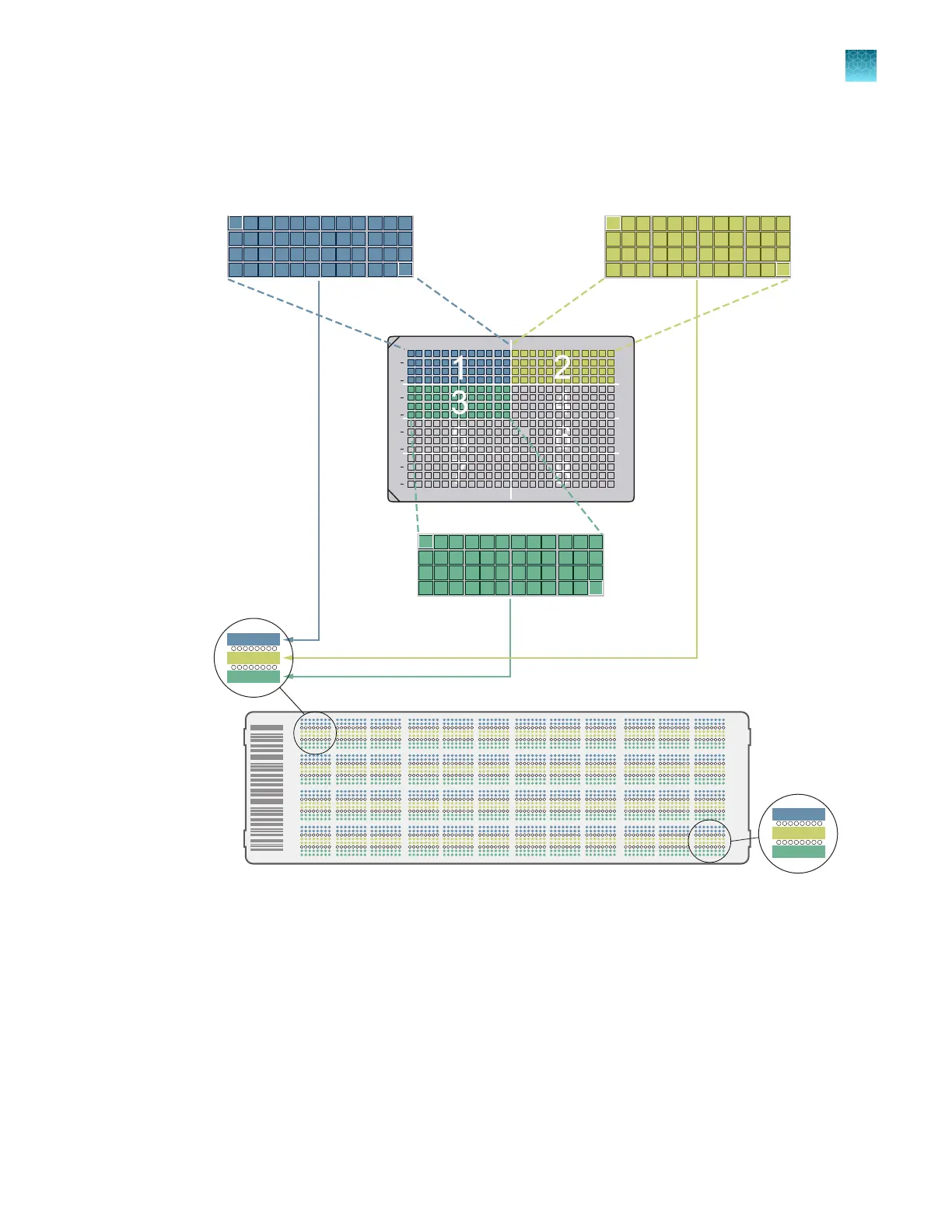

Figure 11 Example sample mapping for three samples per subarray
Chapter 5 Map plates
Configure the experiment design to map the plates
