TSC 900 TRANSFER SWITCH CONTROLLER
PM 151 REV 5 16/04/19 Thomson Power Systems
6

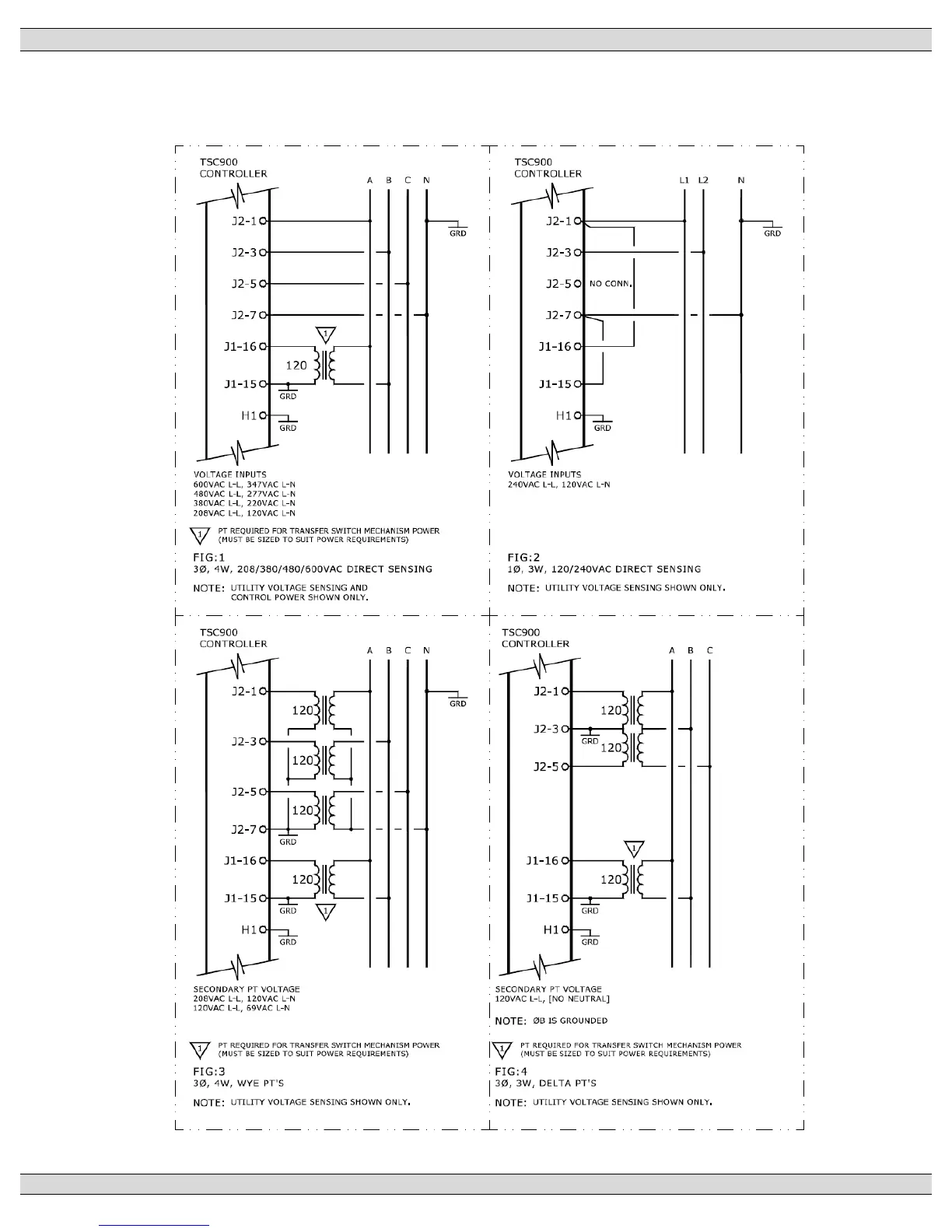

Voltage sensing connections for the most common applications are shown in the following
diagrams.
