2.5. AC CURRENT SENSING INPUT
The TSC 900 can accept 4 x 0-5Aac current inputs from the secondary windings of current
transformers (CT’s). CT’s are to be connected on the load side of the ATS (Phase A, B, C & N).
Wiring of CT primary and secondary windings must be done in strict accordance with schematic
diagram to ensure the correct phasing on 3 phase systems.
WARNING
Do not unplug any current transformer inputs while
energized as severe high voltages can develop which may
cause personal injury or death.

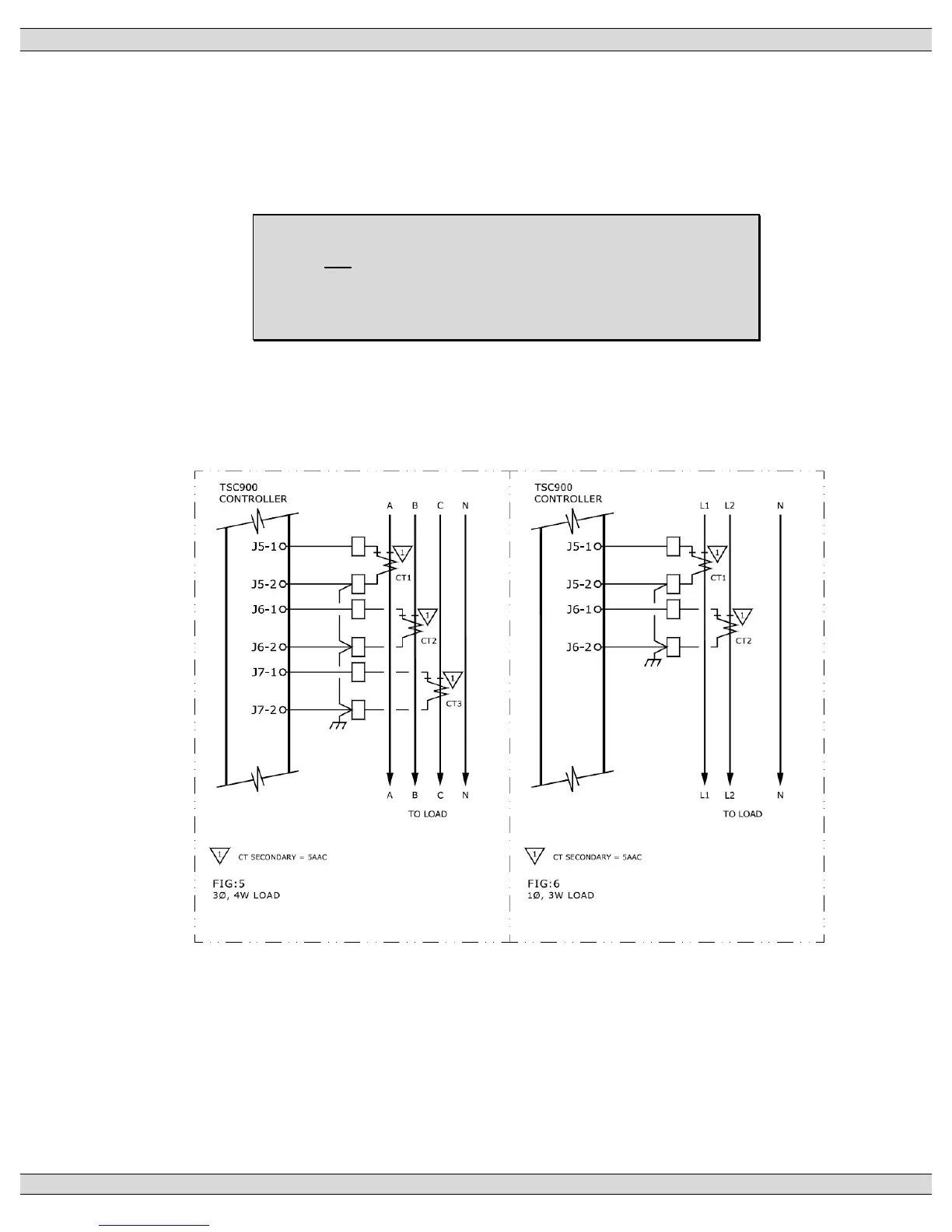

Current sensing connections for the most common applications are shown in the following
diagrams.
