3.5.4. LOAD METERING PAGE

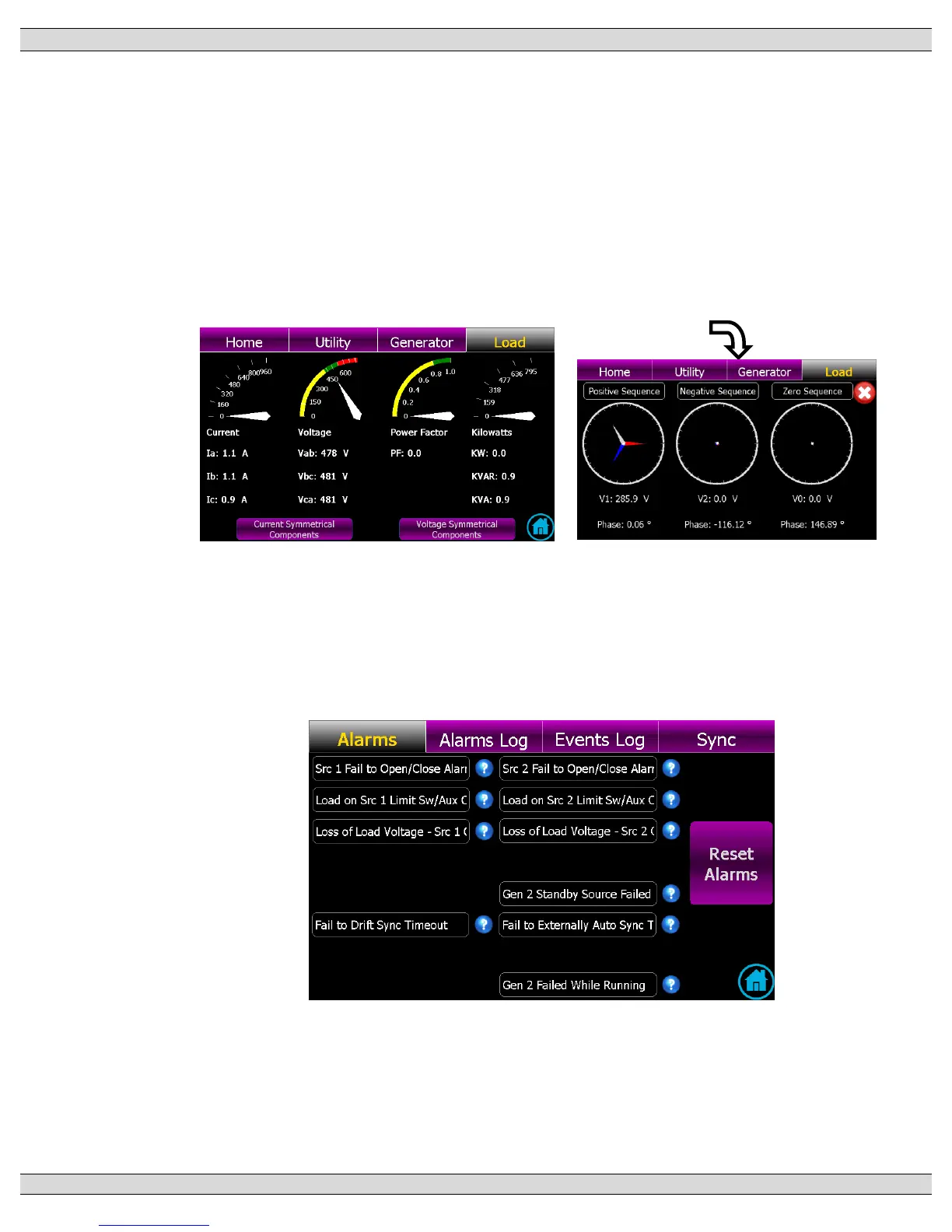

The load metering page provides detailed voltage, current and power metering data for
the ATS load bus. Metering data is displayed in both text and graphical representation.
Phase to phase voltages are displayed. A shortcut button is provided to access the Load
Bus Symmetrical components information.
Note: Load CT and/or Load Power Metering options must be supplied with the ATS to
provide load current and power data.
3.5.5. ALARMS PAGE
The TSC 900 alarms page displays available alarms based on the model type of ATS
supplied. Any active alarms will be highlighted with Red background fill. A reset button
is provided on this page to reset all activated alarms. The following is a screen shot for
a standard open transition ATS.
