4.14. ABNORMAL SOURCE ALERT

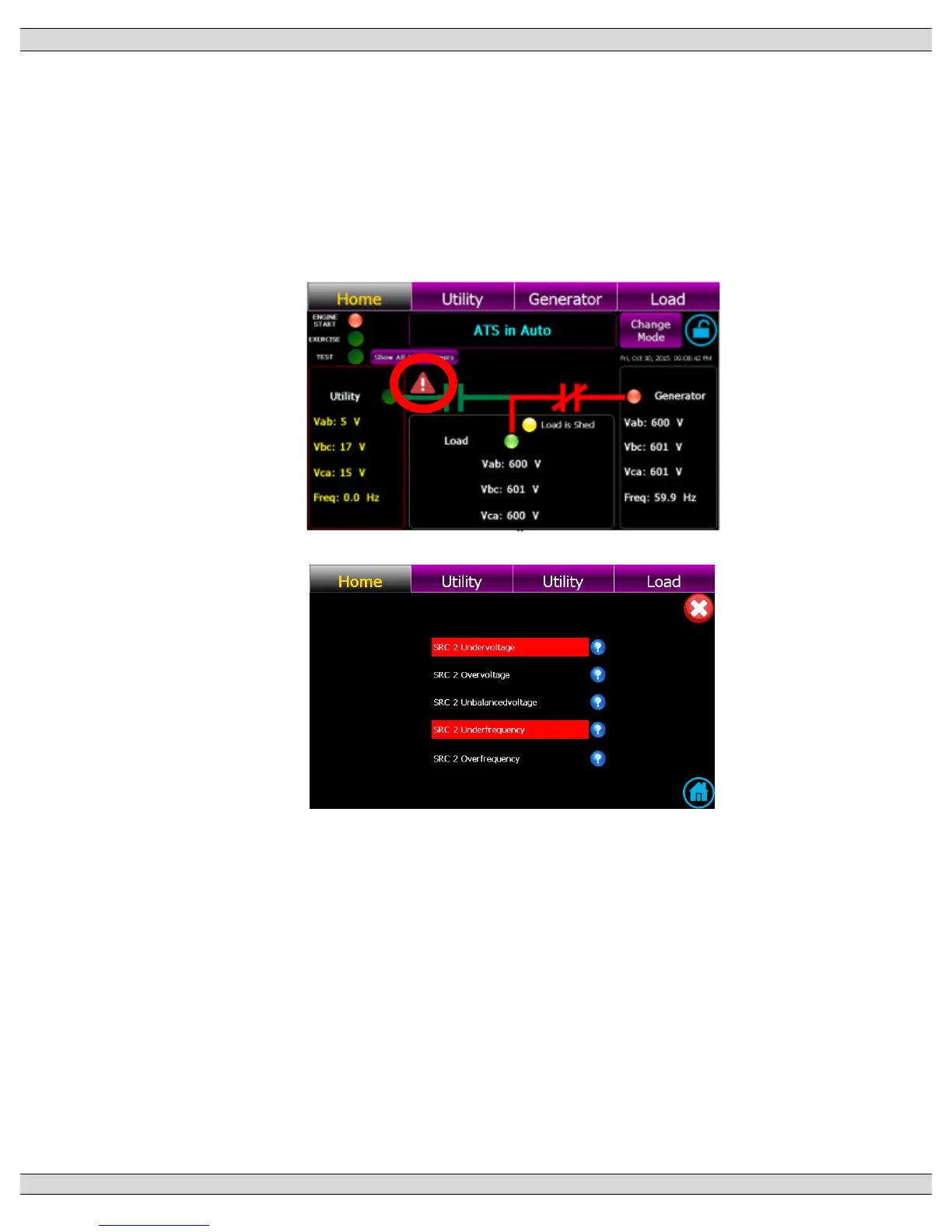

Should an abnormal source condition be detected by the TSC 900, a red Source Alert triangle
Icon will automatically start flashing on the home screen as shown below. To view which specific
condition has triggered the alert, press the alert Icon and a pop-up screen will be displayed as
shown below. The Abnormal Source Alert is provided for both Utility (SRC 1) or Gen (SRC 2)
and will automatically reset should the source return to within normal limits. The alert does not
require resetting for automatic operation to resume.
