THOMSON TSC 900 - Input Mapping; Output Mapping

TSC 900 TRANSFER SWITCH CONTROLLER
PM 151 REV 5 16/04/19 Thomson Power Systems
37

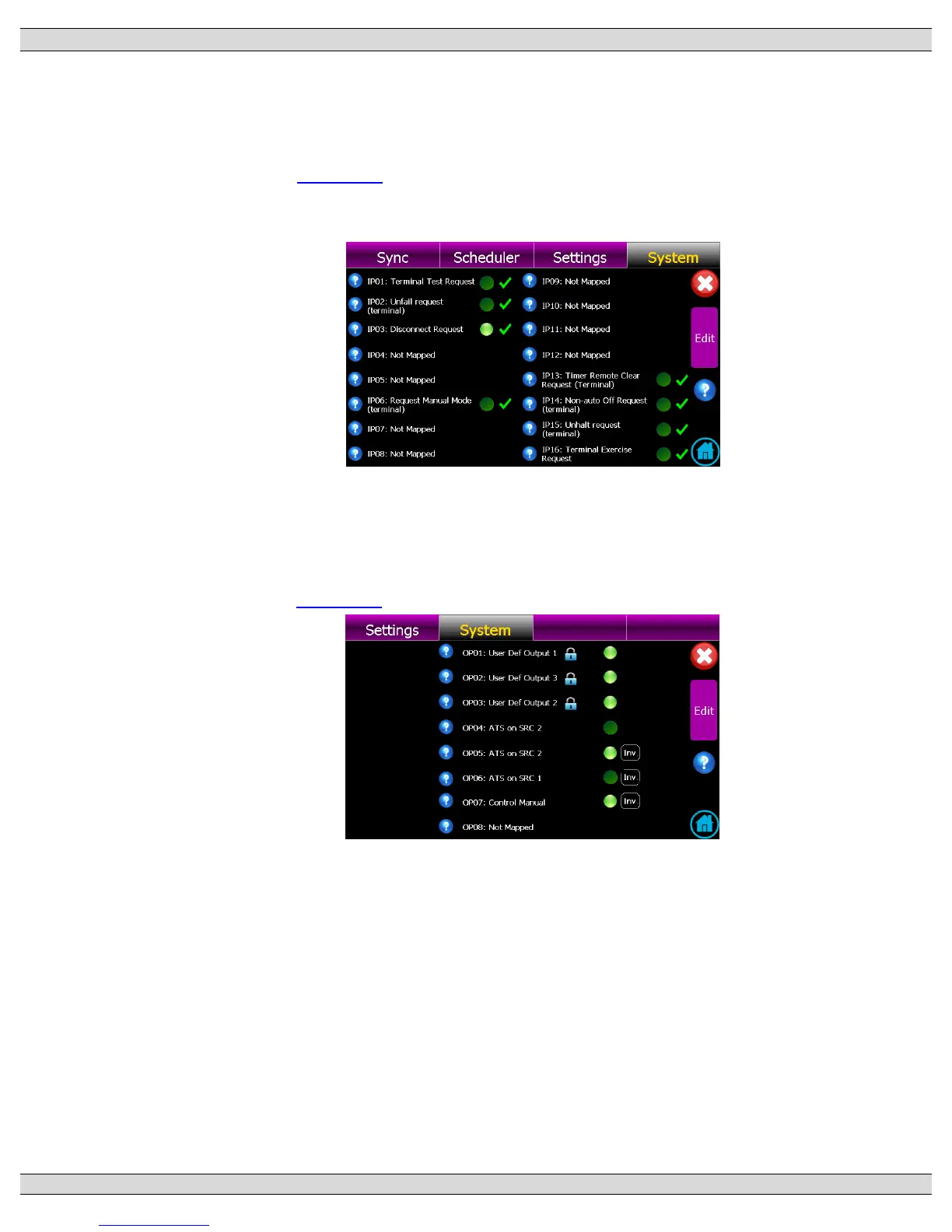

3.6.5. INPUT MAPPING
The input mapping page shows what functions the TSC 900 programmable digital inputs
are configured for and which inputs are currently activated.
Refer to the Section 5.8 of this manual for further details on configuring the digital input
mappings.
3.6.6. OUTPUT MAPPING
The output mapping page shows what functions the TSC 900 programmable relay output
are configured for and which outputs are currently activated.
Refer to the Section 5.9 of this manual for further details on configuring the relay output
mappings.
